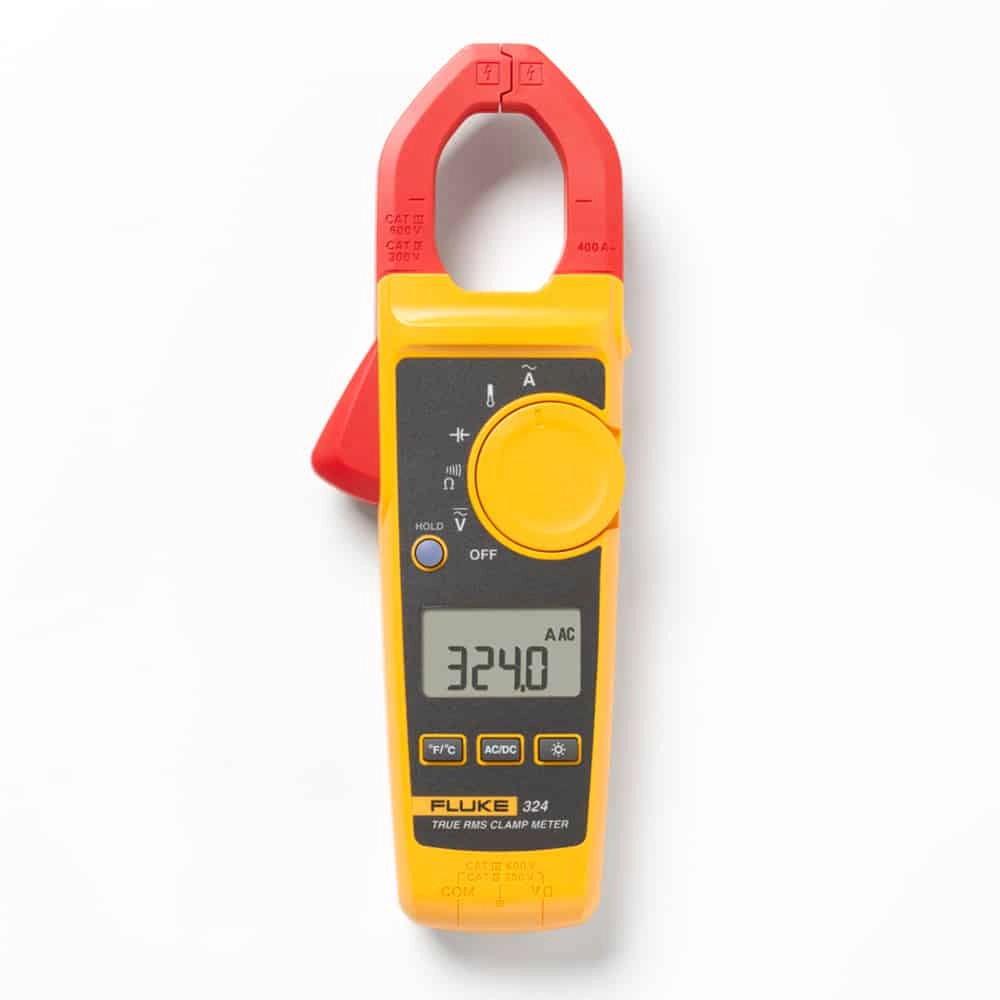

Fluke 324 True RMS AC Clamp Meter, 400A, 30mm Jaw, CAT III 600V, with Temperature and Capacitance Measurement

Features

• 400 A ac current measurement
• 600 V ac and dc voltage measurement
• True-rms ac voltage and current for accurate measurements on non-linear signals
• Resistance measurement up to 4 kΩ with continuity detection
• Features slim, ergonomic design for measuring in tight cable compartments
• Presents measurements on a large, easy-to-read display
• Hold function captures a reading on the display
• Features a CAT III 600 V, CAT IV 300 V safety rating
• Measures temperature from -10C to 400C
• Measures capacitance to 1000μF
• Backlight and hold function captures a reading on the display

Technical Information

• AC Current400A
• AC Voltage600V
• Jaw Size30mm
• Safety RatingCAT III 600V, CAT IV 300V
• DC Voltage600V
• Resistance4000Ω
• Capacitance1000μF
• Continuity≤30 Ω
• Size (H x W x D)207 x 75 x 34mm

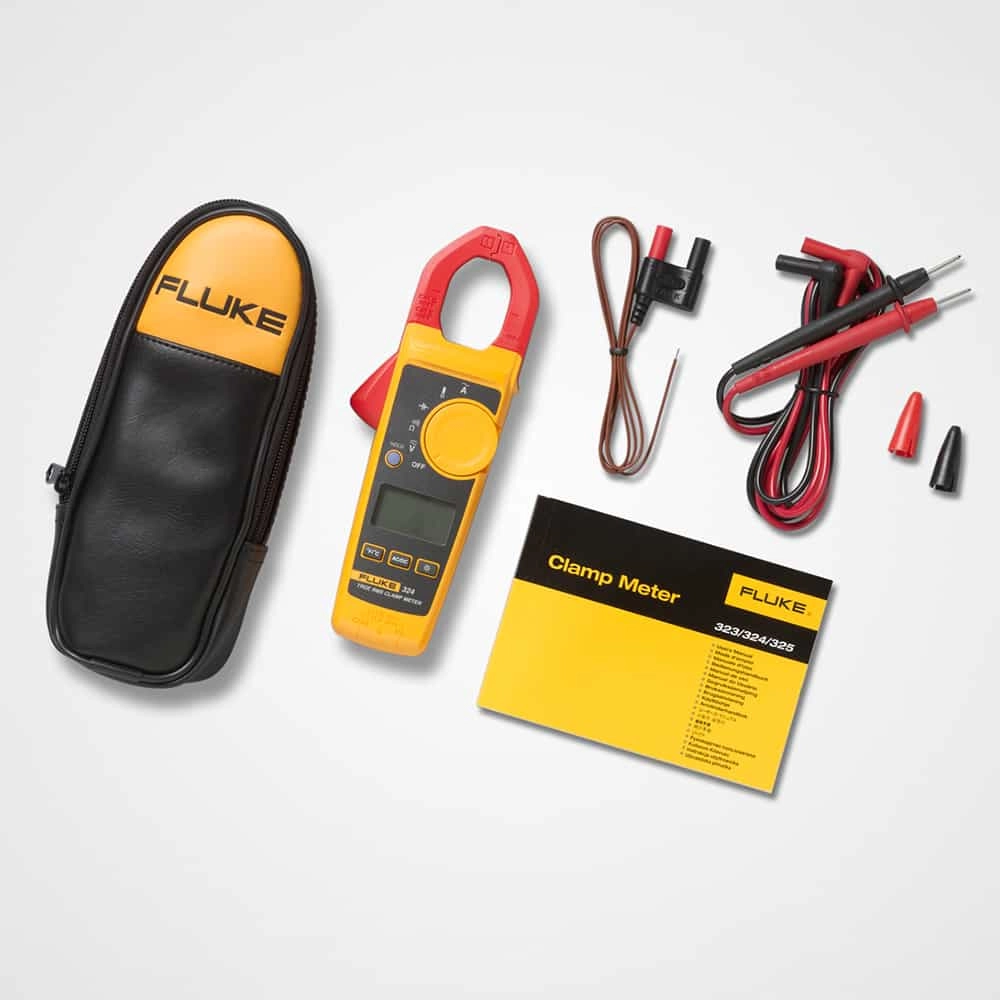

Items Included

• 324 True-RMS Clamp Meter
• (1 pair) TL75 Test Leads
• Type K Thermocouple
• Two AAA Batteries (Installed)
• Soft Case
• Quick Reference Guide

Downloads

DatasheetUser ManualDatasheetUser ManualUser ManualUser Manual
