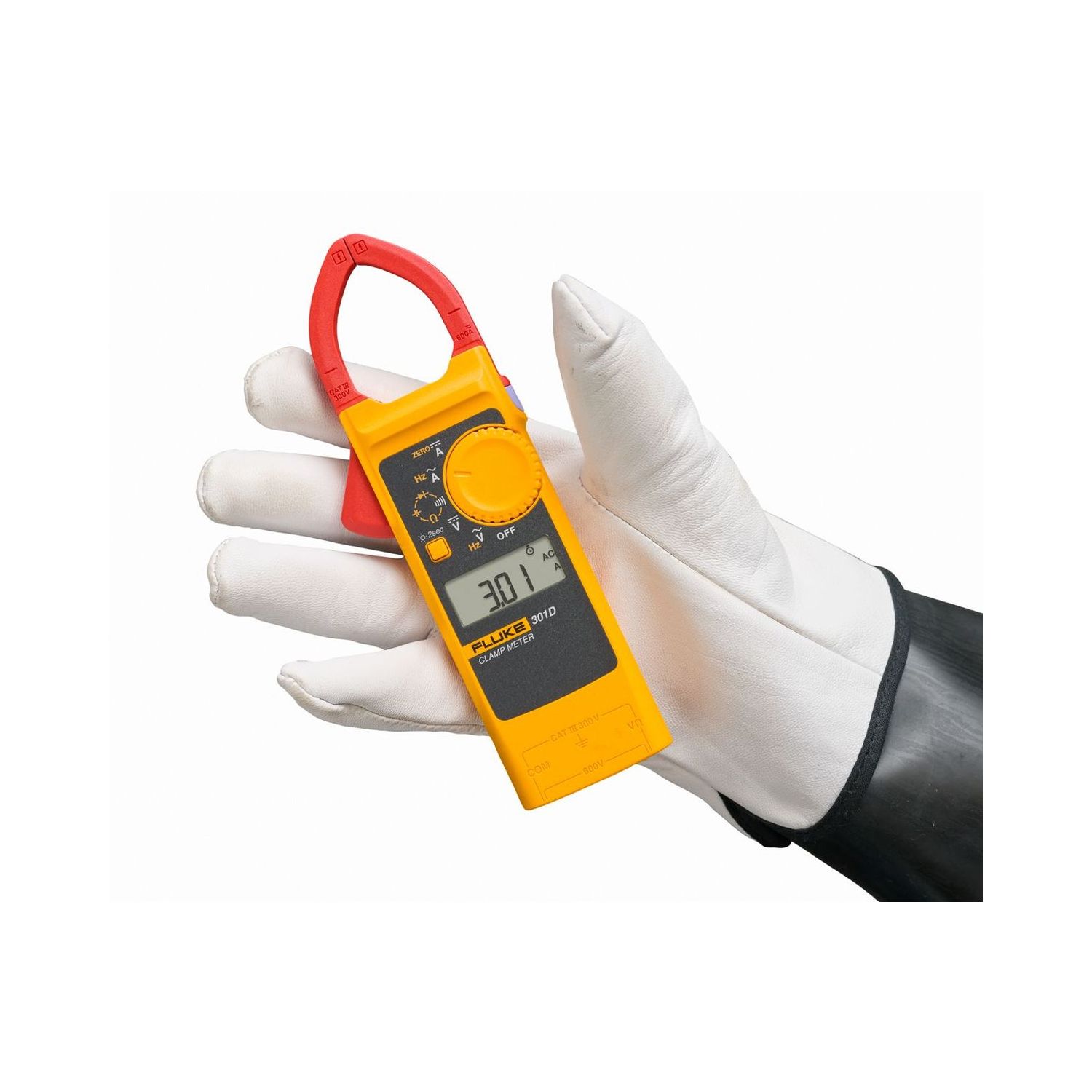

Fluke 301D 301D AC/DC Clamp Meter, 34 mm Jaw, CAT III 300 V

Features

• The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
• The slim and thin jaw of only 10mm can easily fit into tightly packed wires
• 600A AC/DC range (D model), 0.01A high resolution
• Tests voltage, resistance and continuity
• Tests current frequency and voltage frequency
• Tests capacitance and diodes
• Backlight

Technical Information

• AC Current (45 to 400 Hz) Range 60.00 A to 600.0 A
• AC Current (45 to 400 Hz) Resolution 0.01 A to 0.1 A
• AC Current (45 to 400 Hz) Accuracy 2% + 10 to 2% + 5
• AC Voltage (45 to 400 Hz) Range 600.0 V
• AC Voltage (45 to 400 Hz) Resolution 0.1 V
• AC Voltage (45 to 400 Hz) Accuracy 1.5% + 5
• Resistance Range 600.0 Ω, 6.000 kΩ, 60.00 kΩ
• Resistance Accuracy 1% + 5
• Voltage Frequency Range 9.999 Hz, 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz
• Voltage Frequency Accuracy 0.1% + 3
• Current Frequency Range45.0-400.0 Hz
• Current Frequency Accuracy 0.1% + 3
• Continuity Yes
• HoldYes
• Backlight Yes
• Safety rating CAT III 300 V
• Weight 154 g
• Size 190 mm x 52 mm x 16 mm
• Jaw Opening 34 mm
• Clamp Arm Size 10 mm X 10 mm
• Battery (2) AAA batteries

Items Included

• Fluke 301D Clamp Meter
• TL75 test lead
• (2) AAA batteries

Downloads

DatasheetUser Manual-en
