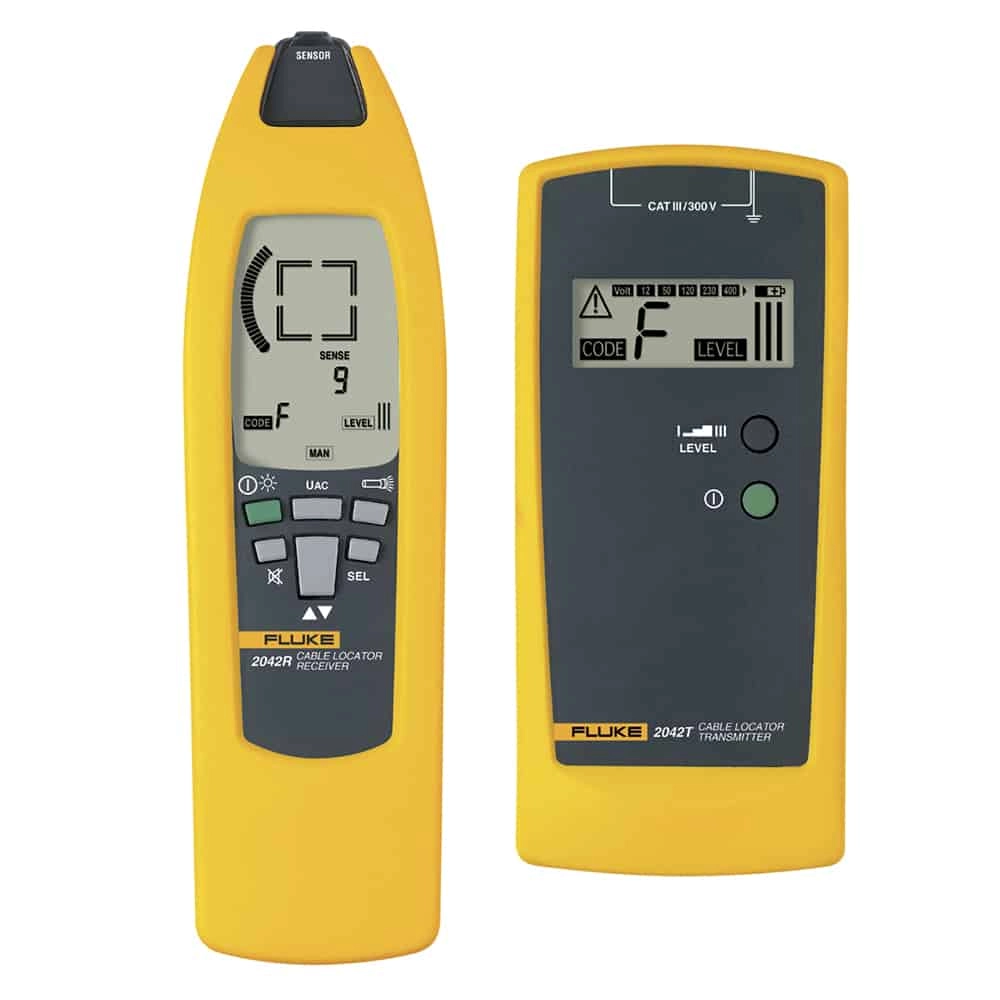

    FLUKE 2042 Cable Locator Transmitter and Receiver

    # 2042

    • Proven digitally coded sender signal guarantees clear signal identification
    • Transmitter with LC-display for transmitting level, transmitting code and external voltage
    • Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
    FLUKE
    • FLUKE
    • 2042

    The multipurpose solution to cable location

    The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.



    Key features

    • For all applications (live or dead cables) without additional instruments
    • Set includes a transmitter and a receiver
    • Proven digitally coded sender signal guarantees clear signal identification
    • Transmitter with LC-display for transmitting level, transmitting code and external voltage
    • Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
    • Automatic or manual adjustment of receiving signal sensitivity
    • Acoustical receiving signal switchable
    • Auto-Power-Off
    • Additional torch lamp function for working in dark environments
    • Additional transmitters are available for extension of to distinguish between several signals



    Technical Specifications
    Voltage measurement range Transmitter 12 V, 50 V, 120 V, 230 V, 400 V
    Frequency range Transmitter 0 – 60 Hz
    Output signal Transmitter 125 kHz
    Voltage Transmitter Up to 400 V AC/DC
    Tracing depth cable location Receiver 0 – 2.5 m wall/underground cables
    Main voltage detection Receiver 0 – 0.4 m
    Environmental specifications
    Operating temperature Transmitter 0 to 40°C
    Receiver 0 to 40°C
    Storage temperature Transmitter -20°C to +60°C
    Receiver -20°C to +60°C
    Humidity (without condensation) Transmitter Max. 80% relative
    Receiver Max. 80% relative
    Operating altitude Transmitter Up to 2000 m
    Receiver Up to 2000 m
    Safety specifications
    Electrical safety  EN 61010-1
    Overvoltage category  Cat. III 300 V
    Mechanical and general specifications
    Size Transmitter 190 x 85 x 50 mm
    Receiver 250 x 65 x 45mm
    Weight Transmitter 0.45 kg
    Receiver 0.36 kg
    Batteries Transmitter 6 pc Batteries 1.5V
    Receiver 1 pc Battery 9V
    • 4 test leads
    • battery 9 V, IEC 6LR61
    • 6 batteries 1.5 V, IEC LR^6
    • 2 crocodile clamps
    • 2 test probes
    • carrying case
    • user manua
