  • FLUKE 190-504 ScopeMeter 4 Channel 500MHz Color UNI

    # 190-504

    • Four electrically isolated inputs
    • CAT III 1000 V / CAT IV 600 V safety rated
    • Choose from 60 MHz, 100MHz, 200MHz or 500MHz bandwidth models
    FLUKE
    • FLUKE
    • 190-504

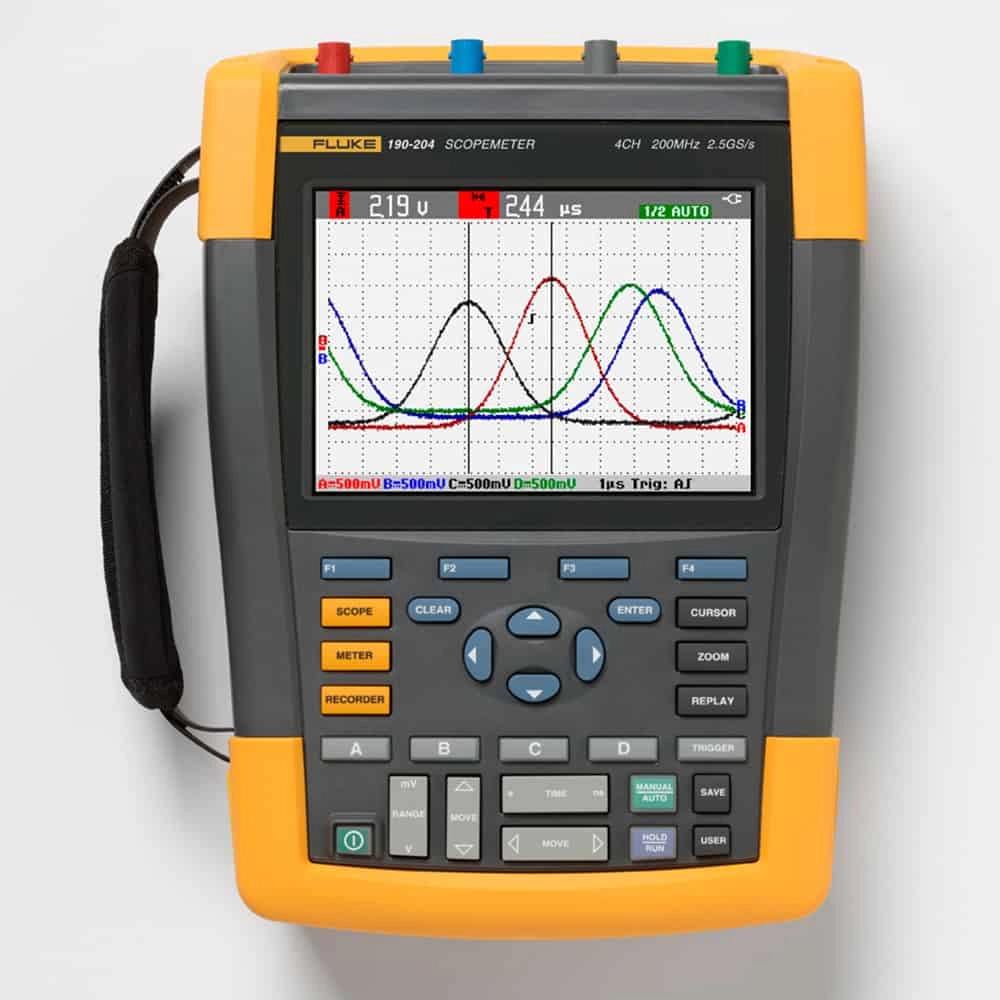

    See more, fix more with the four-channel CAT IV rated Fluke ScopeMeter® 190-504

    The Fluke ScopeMete®r 190 Series II combines the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

    The 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

    • Four electrically isolated inputs
    • CAT III 1000 V / CAT IV 600 V safety rated
    • Choose from 60 MHz, 100MHz, 200MHz or 500MHz bandwidth models
    • Fast sampling rate, up to 5 GS/s with up to 200 ps resolution (Depending on model and channels used)
    • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
    • Dedicated 999 Count digital multimeter.
    • Four meter measurements via scope BNC inputs in four-channel models
    • Connect-and-View™ continuous auto-trigger, single shot, pulse width, and video triggering
    • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
    • TrendPlot, trend measurement readings for up to 22 days
    • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
    • IP-51 rated for dust and drip proof to withstand harsh environments
    • Isolated USB ports for memory devices and PC connectivity
    • Li-Ion battery for extended operating timespan:
      • 190-X04, four-channel models up to 7 hour (BP291 included standard)
      • Charge spare battery using optional external battery charger EBC290
    • Easy-access battery door to make it easy to swap batteries
    • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock



    See more, fix more with the four-channel CAT IV rated Fluke ScopeMeter® 190-504

    The Fluke ScopeMete®r 190 Series II combines the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

    The 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

    • Four electrically isolated inputs
    • CAT III 1000 V / CAT IV 600 V safety rated
    • Choose from 60 MHz, 100MHz, 200MHz or 500MHz bandwidth models
    • Fast sampling rate, up to 5 GS/s with up to 200 ps resolution (Depending on model and channels used)
    • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
    • Dedicated 999 Count digital multimeter.
    • Four meter measurements via scope BNC inputs in four-channel models
    • Connect-and-View™ continuous auto-trigger, single shot, pulse width, and video triggering
    • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
    • TrendPlot, trend measurement readings for up to 22 days
    • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
    • IP-51 rated for dust and drip proof to withstand harsh environments
    • Isolated USB ports for memory devices and PC connectivity
    • Li-Ion battery for extended operating timespan:
      • 190-X04, four-channel models up to 7 hour (BP291 included standard)
      • Charge spare battery using optional external battery charger EBC290
    • Easy-access battery door to make it easy to swap batteries
    • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
    Specifications
    Bandwidth 500 MHz
    Number of channels 500 MHz: 4 channels
    Real-time sample rate 5 GS/s
    Inputs 4x BNc input scope plus DMM input
    Independently floating isolated inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
    Input sensitivity 2 mV-100 V/div plus variable attentuation
    Trigger types Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
    Trigger source 4x BNC input
    Glitch capture 8 ns
    Scope measurements Cursor: 7
    Automatic: 30
    Maximum record length ScopeRecord mode: 30,000 pts per input
    Scope mode: 10,000 pts per input
    Persistence Digital persistence giving analog oscilloscope-like waveform decay
    Waveform compare Waveform reference with automatic Pass/Fail testing
    DMM Specification
    Meter inputs BNC inputs function as DMM input
    Maximum resolution 999 counts
    Measurements VDC, VAC rms, VAC + DC rms, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
    Memory Screen + Setup: 30
    Recording: 10
    Display 153 mm full color LCD with fast update rate
    Environmental Specifications
    Operating temperature 0 °C to 40 °C Including Batteries
    0 °C to 50 °C Excluding Batteries
    Storage temperature -20 °C to +60 °C
    Operating altitude Up to 2,000 m (6666 ft) for CAT IV 600 V/ CAT III 1000 V
    Up to 3,000 m (10,000 ft) for CAT III 600 V/ CAT II 1000 V
    Safety Specifications
    Electrical safety 1,000 V CAT III/600 V CAT IV (EN61010-1)
    Mechanical and General Specifications
    Size 270 x 190 x 70 mm
    Weight 2.2 kg
    Warranty Three-years on main instrument
    Li-Ion battery BP 291 (4800mAh)
    Included Accessories
    VPS410 Voltage Probe Sets (one red, one blue)
    BC190 Battery Charger/mains Adapter
    BP291, 4800 mAh Li-Ion battery
    Handstrap (affixed to instrument)
    Hangstrap
    Multi-Language User Manuals on CD-Rom
    FlukeView ScopeMeter® demo package (restricted functionality)
    USB Interface Cable
    Warranty One year on accessories
