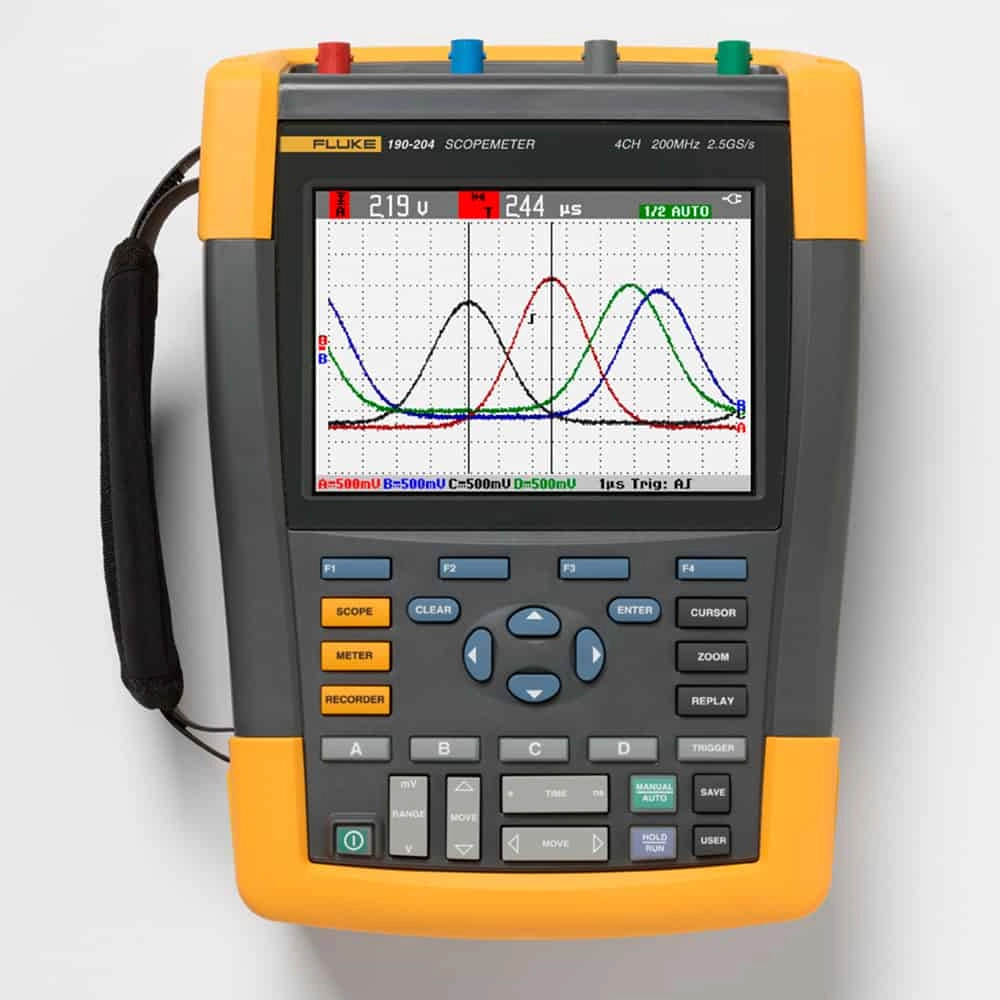

    FLUKE 190-204 ScopeMeter 4 Channel 200 MHZ Color

    # 190-204

    • Features 200MHz bandwidth; 2.5GS/s compatible with CAT IV applications; 4 inputs
    • 4 Isolated Floating Channels
    • 100V CAT III / 600V CAT IV

    See More, Fix More with the Four-Channel CAT IV Rated Fluke ScopeMeter® 190-204

    The Fluke ScopeMeter® 190-204 combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter® test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.



    The 190-204 ScopeMeter® is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

    • Two electrically isolated inputs
    • CAT III 1000 V / CAT IV 600 V safety rated
    • 200 MHz bandwidth model
    • 2.5 GS/s
    • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
    • Dedicated 5000 Count digital multimeter
    • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
    • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
    • TrendPlot, trend measurement readings for up to 22 days
    • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
    • IP-51 rated for dust and drip proof to withstand harsh environments
    • Isolated USB ports for memory devices and PC connectivity
    • Li-Ion battery for extended operating timespan
      • Up to 7 hour (BP291 included standard)
      • Charge spare battery using optional external battery charger EBC290
    • Easy-access battery door to make it easy to swap batteries
    • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock



    Fluke 190-204 – 20 years of ScopeMeter® Test Tool Innovation

    As the first four-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter® 190-204 combines an unprecedented level of performance, ruggedness, and portability with 200 MHz bandwidth and real-time sampling rates up to 2.5 GS/s and 200 ps resolution to capture noise and other disturbances. This model feature deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.



    Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating

    The Fluke ScopeMeter® 190-204 portable scope is double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.



    Three-dimensional testing for industrial systems

    Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:

    • Circuit voltage/current overloading
    • Signal timing measurements and synchronization issues
    • Attenuation/input impedance mismatch
    • Signal fluctuation/drift



    Three-phase testing for diagnosing VSD, power inverters, and converters

    • Test for harmonics, transients and loads at the three-phase power input
    • Troubleshoot dc to ac converters for faulty IGBT gates or filter circuits
    • Test PWM output for reflections and transients or voltage unbalance



    Safely measure from mV to kV

    Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.



    Take on the Harshest Conditions with the only IP-51-rated Scope on the Market

    Rugged and shock-proof, all ScopeMeter® portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.



    Built in multimeter to quickly and conveniently perform precise measurements

    Built-in digital multimeter 4 channel model with isolated dual input scope and dedicated digital multimeter. Conveniently switch from waveform analysis to precise multimeter measurements using the built in 5000 count digital multimeter. Measurement functions include Vdc, Vac, Vac+dc, resistance, continuity and diode test. Measure current and temperature using suitable shunt, probe or adapter with wide range of scaling factors.



    Work a Full Shift on a Single Charge

    New high-performance batteries take advantage of Li-ion technology to keep you going strong for up to seven hours. And with the easy-access battery door you can make battery swaps fast.



    Capture and Share Waveforms Easily with New USB connectivity

    Two USB ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument steups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.



    See a Stable Display Instantly with Connect-and-View&trade Triggering

    Connect-and-View™ automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.

    Specifications
    Bandwidth200 MHz
    Number of channels200 MHz: 4 channels
    Real-time sample rate2.5 GS/s
    Inputs4 scope plus DMM input
    Independently floating isolated inputsUp to 1000 V CAT III/600 V CAT IV between inputs, references and ground
    Timebase range2 ns – 2 min/div
    Input sensitivity2 mV-100 V/div
    Trigger typesConnect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
    Trigger sourceAny scope input channel
    Glitch capture8 ns
    Scope measurementsCursor: 7
    Automatic: 30
    Maximum record lengthScopeRecord mode: 30,000 pts
    Scope mode: 10,000 pts per input
    PersistenceDigital persistence giving analog oscilloscope-like waveform decay
    Waveform compareWaveform reference with automatic Pass/Fail testing
    Environmental Specifications
    Operating temperature0°C to 40°C Including Batteries
    0°C to 50°C Excluding Batteries
    Storage temperature-20°C to +60°C
    Operating altitudeUp to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
    Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
    Safety Specifications
    Electrical safety1,000V CAT III/600V CAT IV (EN61010-1)
    Mechanical and General Specifications
    Size270 x 190 x 70 mm
    Weight2.2 kg
    Warranty3-years on main instrument, 1-year on accessories
    Li-Ion batteryBP291 4800 mAh battery up to 7 hours included standard
    Included Accessories
    VPS410 Voltage Probe Sets (one red, one blue, one grey, one green)
    BC190 Battery Charger/mains Adapter
    BP291 4800 mAh high capacity Li-ion Battery
    Handstrap (affixed to instrument)
    Hangstrap
    Multi-Language User Manuals on CD-Rom
    FlukeView ScopeMeter® demo package (restricted functionality)
    USB Interface Cable
    WarrantyThree years on main instrument, one year on accessories
