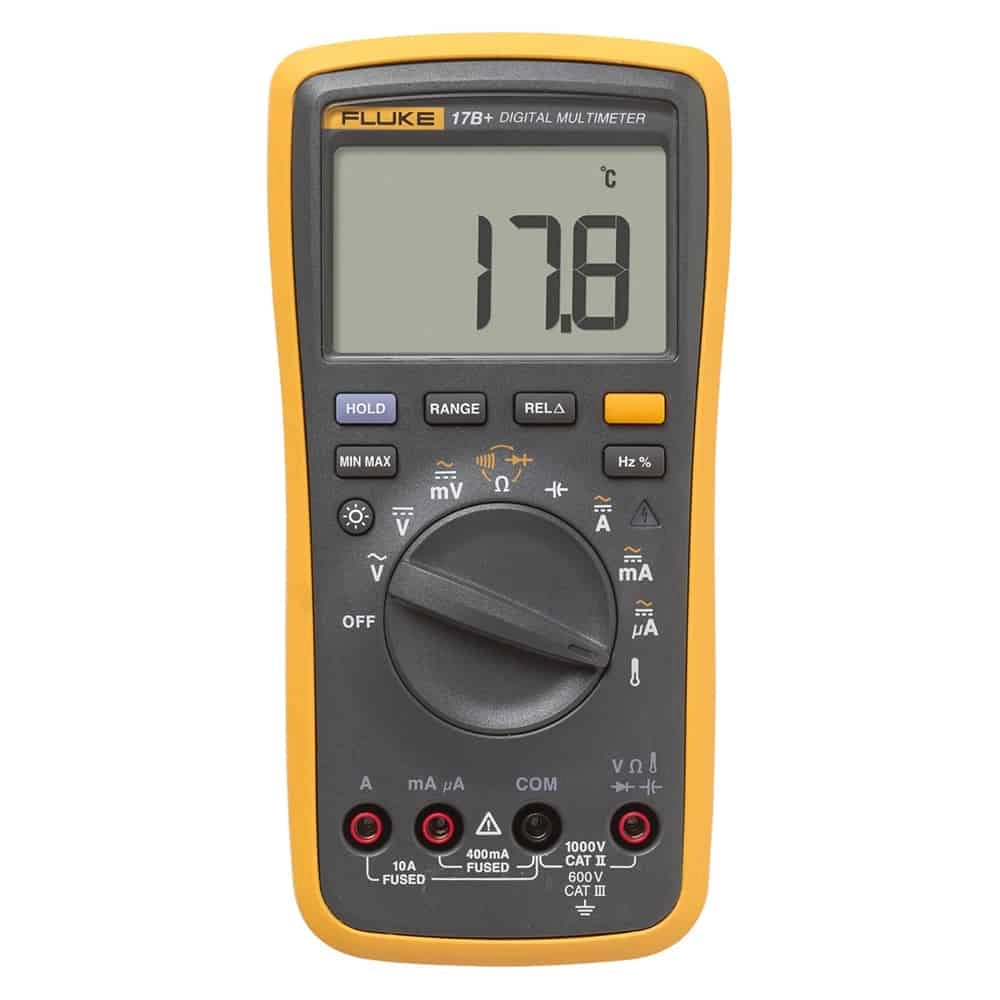

Fluke 17B+ Digital Multimeter, CAT III 600V, 10A

Features

• 600 V Cat III safety rating
• 50% bigger display with bright white backlight
• Over-voltage indicator
• Frequency and temperature measurement
• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A current
• Diode test, data hold

Technical Information

• DC Voltage1000V
• AC Voltage1000V
• DC Current10A
• AC Current10A
• Resistance400Ω to 40MΩ
• Capacitance40nF - 1000μF
• Frequency50Hz to 100 kHz
• Temperature-55°C to 400°C
• Display (LCD)4000 counts, updates 3/sec
• Battery type2 AA, NEDA 15A, IEC LR6
• Battery life500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
• Operating Temperature0 °C to 40 °C
• Storage-30 °C to 60 °C
• Operating humidityNon-condensing (<10°C) ?90% RH at 10 °C to 30 °C ?75% RH at 30 °C to 40 °C
• Temperature coefficient0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
• Size (H x W x L)183 x 91 x 49.5 mm
• Weight455g
• IP RatingIP 40

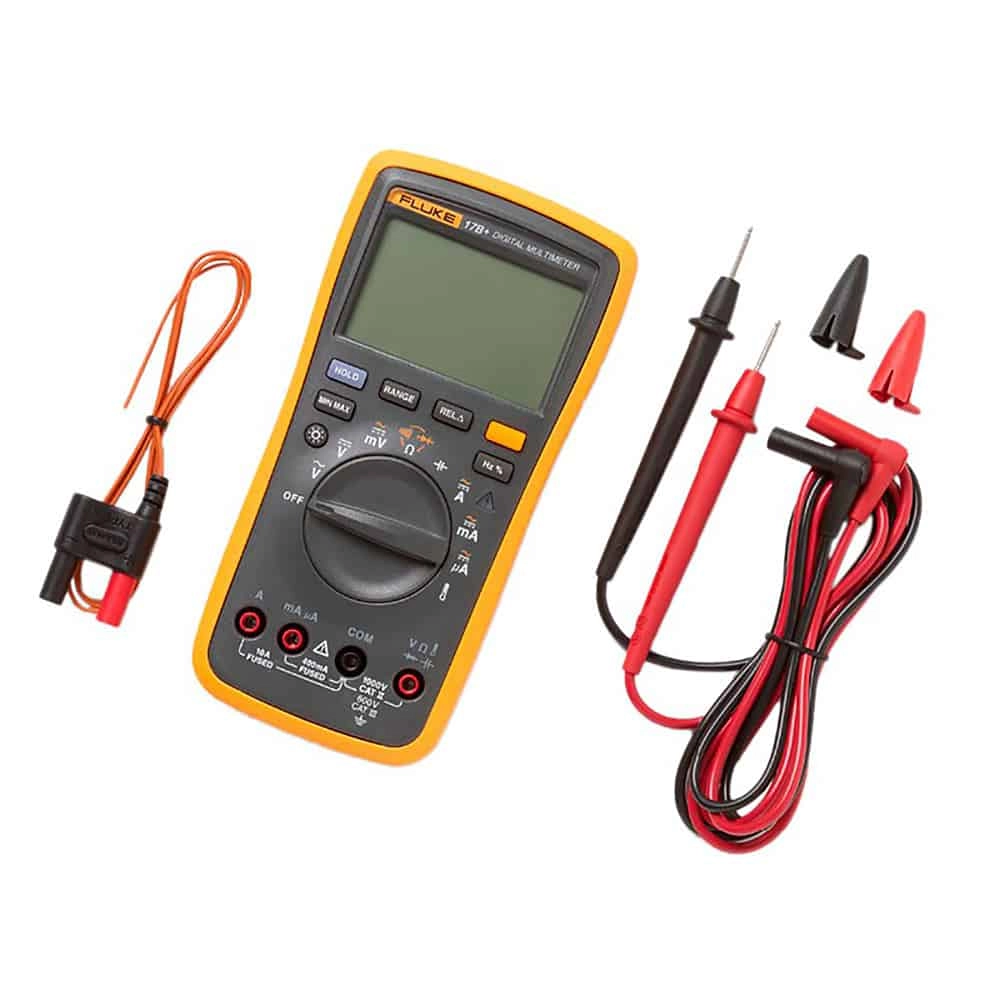

Items Included

• TPAK Meter Hanging Kit
• TL175 TwistGuard Test Leads

Downloads

Datasheet
