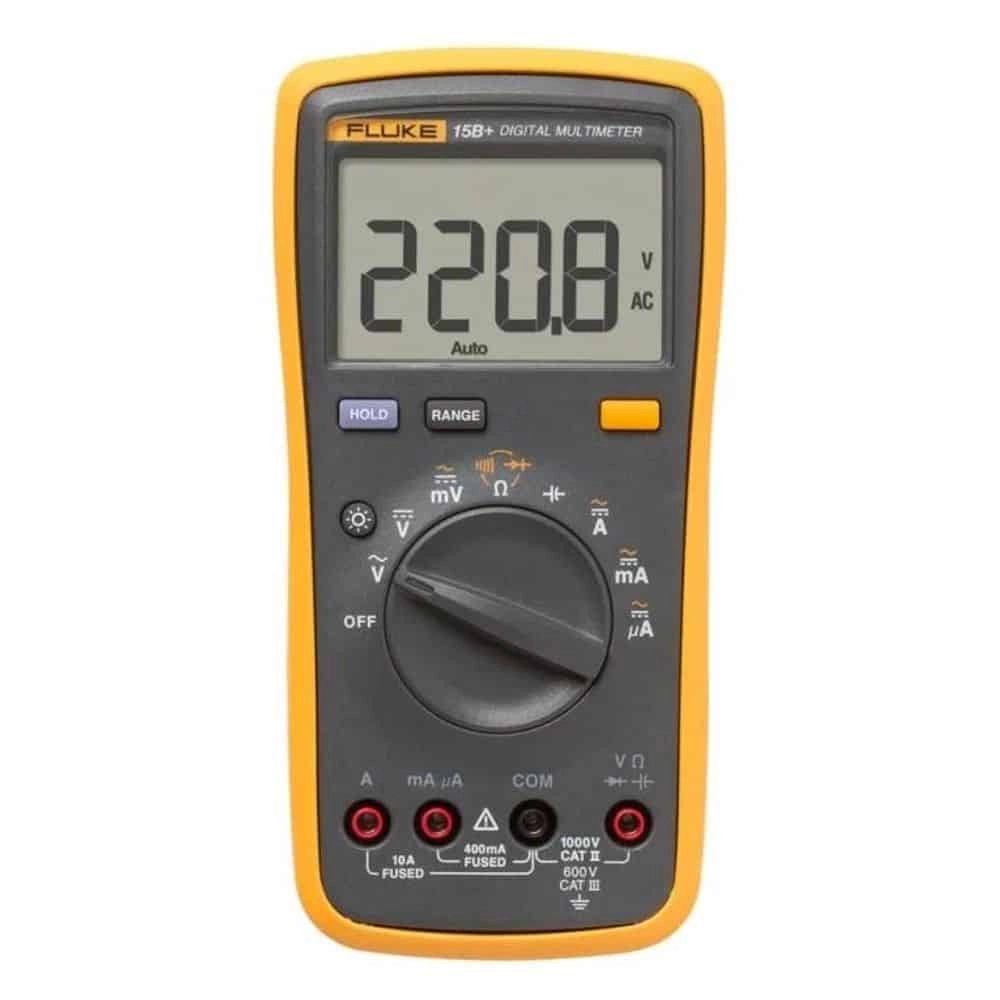

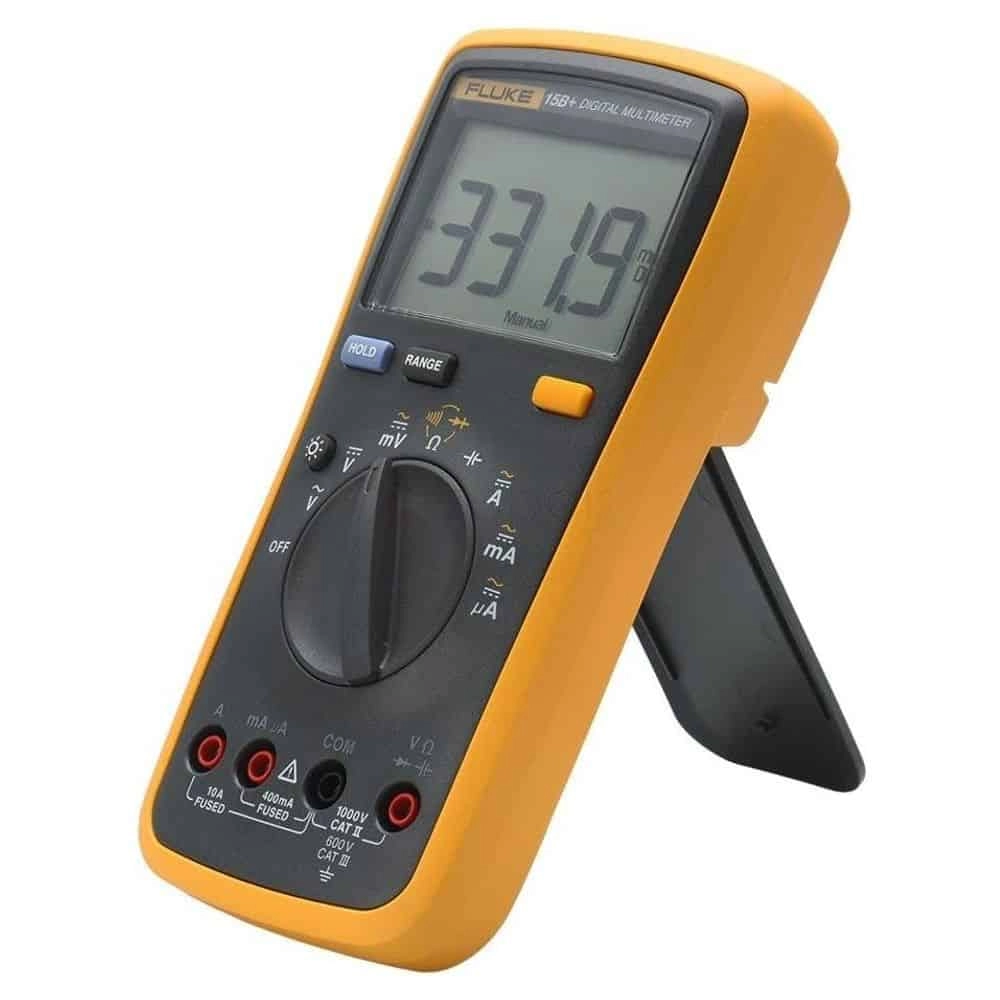

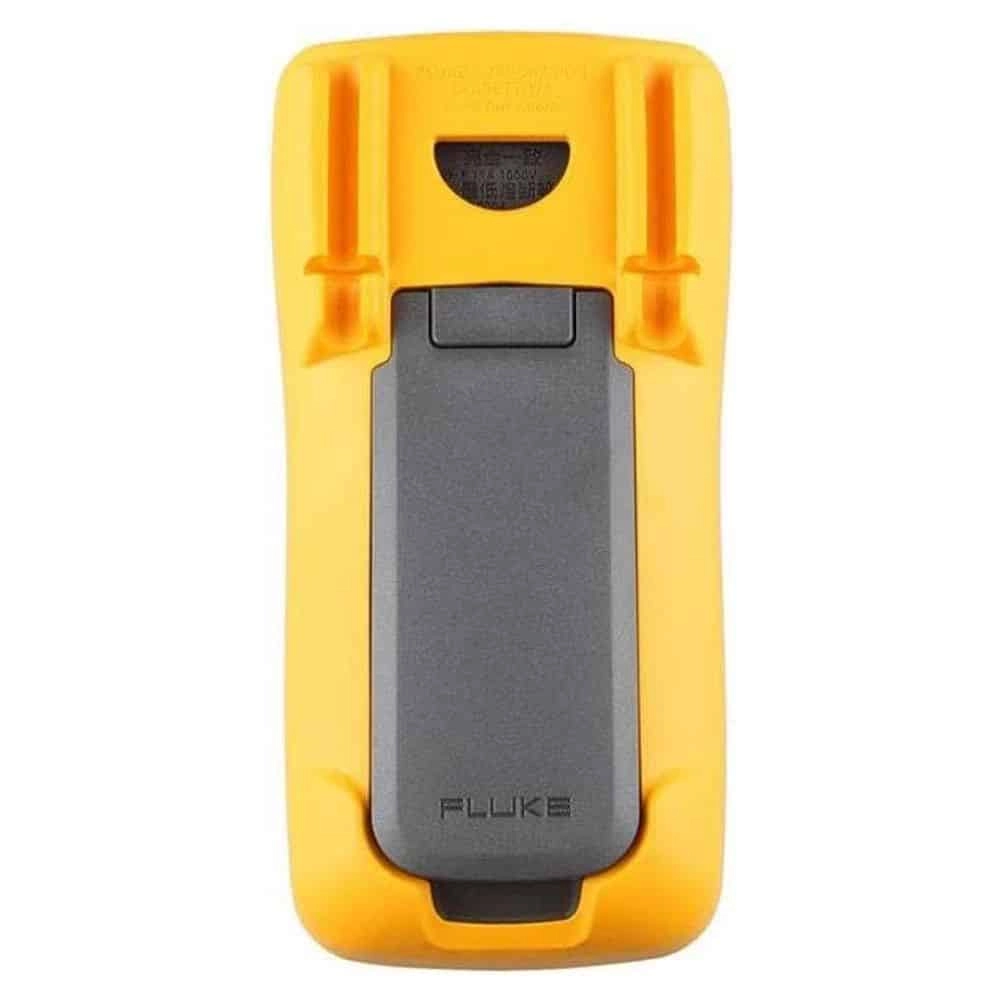

    FLUKE 15B+ Digital Multimeter 1000V AC/DC

    # 15B+

    • 600 V Cat III safety rating
    • 50% bigger display with bright white backlight
    • Voltage, resistance, continuity, capacitance
    FLUKE
    • FLUKE
    • 15B+
    • Digital Multimeter
    • 4-1000V
    • 400.0 O to 40.0 MO
    • 40.0 nF - 1000 µF

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • 600 V Cat III safety rating
    • 50% bigger display with bright white backlight
    • Voltage, resistance, continuity, capacitance
    • Input terminal for ac and dc current measurements to 10 A current
    • Diode test, data hold





    Accuracy Specifications

    Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0% to 75%. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).

    Function Range Resolution Accuracy
    AC volts
    (40 Hz to 500Hz)1
    4.000 V
    40.00 V
    400.0 V
    1000 V
    0.001 V
    0.01 V
    0.1 V
    1 V
    1.0% + 3
    DC volts 4.000 V
    40.00 V
    400.0 V
    1000 V
    0.001 V
    0.01 V
    0.1 V
    1 V
    0.5% + 3
    AC millivolts 400.0 mV 0.1 mV 3.0% + 3
    DC millivolts 400.0 mV 0.1 mV 1.0% + 10
    Diode test2 2.000 V 0.001 V 10%
    Resistance
    (Ohms)
    400.0 Ω
    4.000 kΩ
    40.00 kΩ
    400.0 kΩ
    4.000 MΩ
    40.00 MΩ
    0.1 Ω
    0.001 kΩ
    0.01 kΩ
    0.1 kΩ
    0.001 MΩ
    0.01 MΩ
    0.5% + 3
    0.5% + 2
    0.5% + 2
    0.5% + 2
    0.5% + 2
    1.5% + 3
    Capacitance3 40.00 nF
    400.0 nF
    4.000 μF
    40.00 μF
    400.0 μF
    1000 μF
    0.01 nF
    0.1 nF
    0.001 μF
    0.01 μF
    0.1 μF
    1 μF
    2% + 5
    2% + 5
    5% + 5
    5% + 5
    5% + 5
    5% + 5
    AC current μA
    (40 Hz to 400 Hz)
    400.0 μA
    4000 μA
    0.1 μA
    1 μA
    1.5% + 3
    AC current mA
    (40 Hz to 400 Hz)
    40.00 mA
    400.0 mA
    0.01 mA
    0.1 mA
    1.5% + 3
    AC current A
    (40 Hz to 400 Hz)
    4.000 A
    10.00 A
    0.001 A
    0.01 A
    1.5% + 3
    DC current μA 400.0 μA
    4000 μA
    0.1 μA
    1 μA
    1.5% + 3
    DC current mA 40.00 mA
    400.0 mA
    0.01 mA
    0.1 mA
    1.5% + 3
    DC current A 4.000 A
    10.00 A
    0.001 A
    0.01 A
    1.5% + 3
    Backlight Yes
    1All ac, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified.
    2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
    3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range).
    Function Overload protection Input impedance (Nominal) Common mode rejection ratio Normal mode rejection ratio
    AC volts 1000 V 1 >10 MΩ <100 pF >60 dB at dc,
    50 Hz or 60 Hz
    AC millivolts 400 mV >1MΩ, <100 pF >80 dB at 50 Hz or 60 Hz
    DC volts 1000 V 1 >10 MΩ <100 pF >100 dB at dc,
    50 Hz or 60 Hz
    >60 dB at 50 Hz or 60 Hz
    DC millivolts 400 mV >1MΩ, <100 pF >80 dB at 50 Hz or 60 Hz
    1 106 V Hz Max
    General specifications
    Maximum voltage between any terminal and earth ground 1000 V
    Display (LCD) 4000 counts, updates 3/sec
    Battery type 2 AA, NEDA 15A, IEC LR6
    Battery life 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
    Temperature
    Operating 0 °C to 40 °C
    Storage -30 °C to 60 °C
    Relative humidity
    Operating humidity Non-condensing (<10°C)
    ≤90% RH at 10 °C to 30 °C;
    ≤75% RH at 30 °C to 40 °C
    40 MΩ range
    ≤80% RH at 10 °C to 30 °C;
    ≤70% RH at 30 °C to 40 °C
    Altitude
    Operating 2000 m
    Storage 12,000 m
    Temperature coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
    Fuse protection for current inputs 440 mA, 1000 V Fast Fuse, Fluke specified part only.
    11A, 1000V Fast Fuse, Fluke specified part only.
    Size (H x W x L) 183 x 91 x 49.5 mm
    Weight 455 g
    IP rating IP 40
    Safety IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
    Electromagnetic environment IEC 61326-1: Portable
    Electromagnetic compatibility Applies to use in Korea only
    Class A equipment (industrial broadcasting & communication equipment)1
    1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or
    user should take notice of it. This equipment is intended for use in business environments and is not to be
    used in homes.

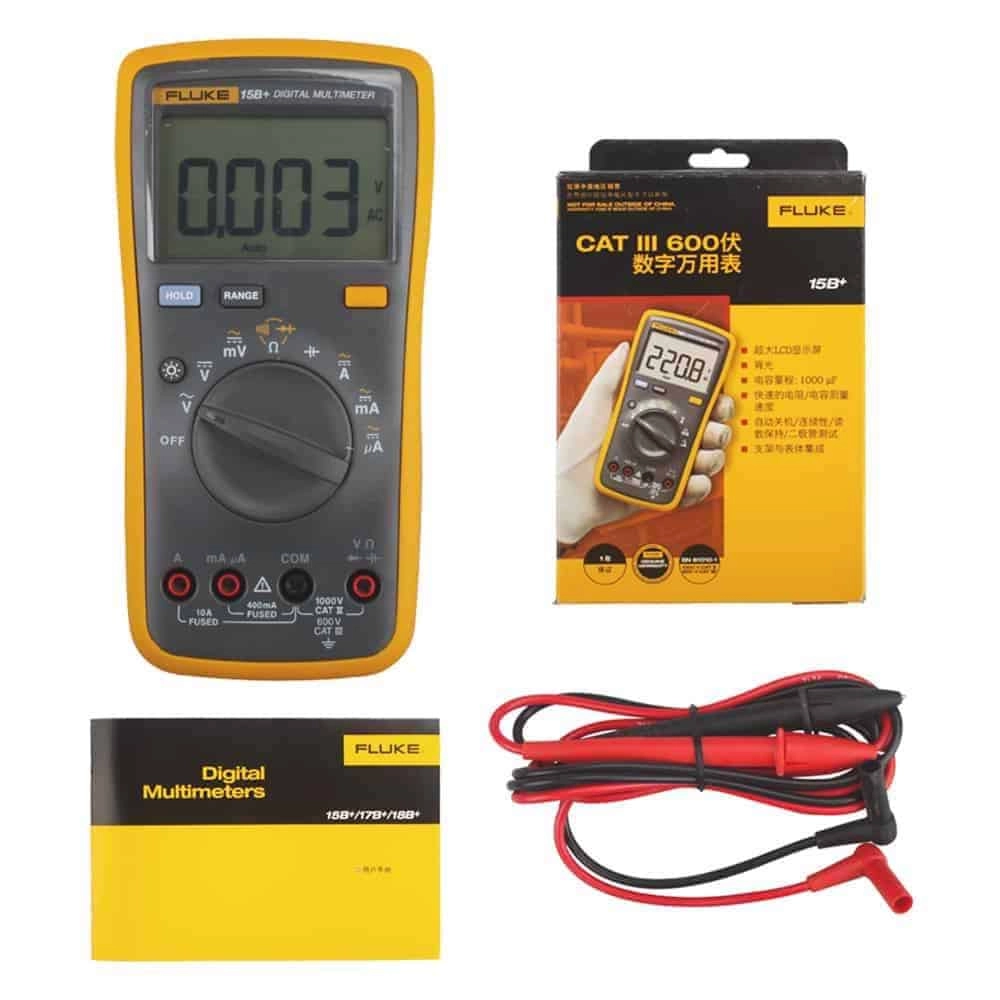

    • TL75 test leads with two caps
    • 2 AA batteries
    • User’s manual
