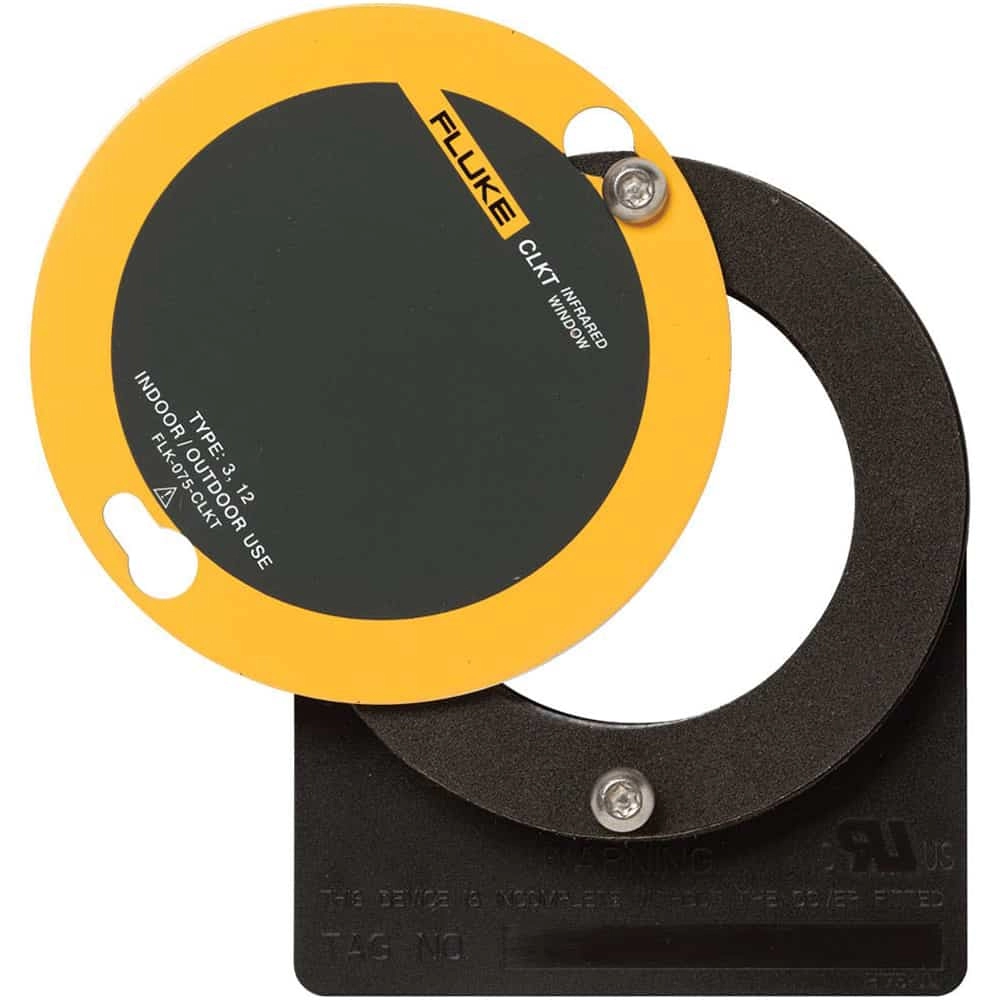

FLUKE 075-CLKT 075-CLKT
# 075-CLKT
- The Fluke FLK-075-CLKT IR Window is Engineered and tested to withstand electric-arcs up to 50 kA for 30 cycles.
- Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
- Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
- The Fluke FLK-075-CLKT IR Window is Engineered and tested to withstand electric-arcs up to 50 kA for 30 cycles.
- Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
- Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
- The CLIRVU® coating, exclusive to Fluke Infrared Windows, seals the optic prior to assembly to protect against moisture degradation.
- Quadraband™ optic is compatible with IR-Fusion® and Thermal Fusion technologies allowing the thermographer to see potential problems in visual light and thermographic mode.
- Got more than one window per panel? Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
- Fluke AutoGround automatically grounds at installation for maximum safety and compliance. No additional steps or testing is required. Only available on Fluke IR Windows.
| Optic data | |
| Crystal insert diameter | 75mm (296in) |
| Viewing aperture diameter | 68mm (2.7in) |
| Viewing aperture area | 3632mm2 (5.63in2) |
| Thickness | 2mm (0.08in) |
| CLIRVU coating | Yes |
| Shortwave IR, Midwave IR, Longwave IR, Ultraviolet (UV) capable | Yes |
| Visual and fusion capable | Yes |
| Maximum temperature | Gaskets: 250°C (482°F) Body: 659°C (1219°F) Optic: 1400°C (2552°F) |
| Gaskets | Low smoke and fume (LSF) compliant silicone |
| Pull-out strength | Up to 630kg (1388lb) |
| Warranty | Lifetime replacement against manufacturing defects |
| Certifications | |
| Underwriters Laboratories (UL) recognized | Yes |
| UL50 environmental | Type 3/12 |
| UL746C | N/A Polymer free |
| UL94 | N/A Polymer free |
| Canadian Standards Association (CSA) approval | Yes |
| Environmental | Type 3/12 |
| TUV | |
| Cyclic humidity and vibration withstand | Yes |
| IP rating | IP65 |
| NEMA rating | Type 1 (UL third party certified) |
| Vibration rating | IEC60068-2-6 |
| Humidity rating | IEC60068-2-3 |
