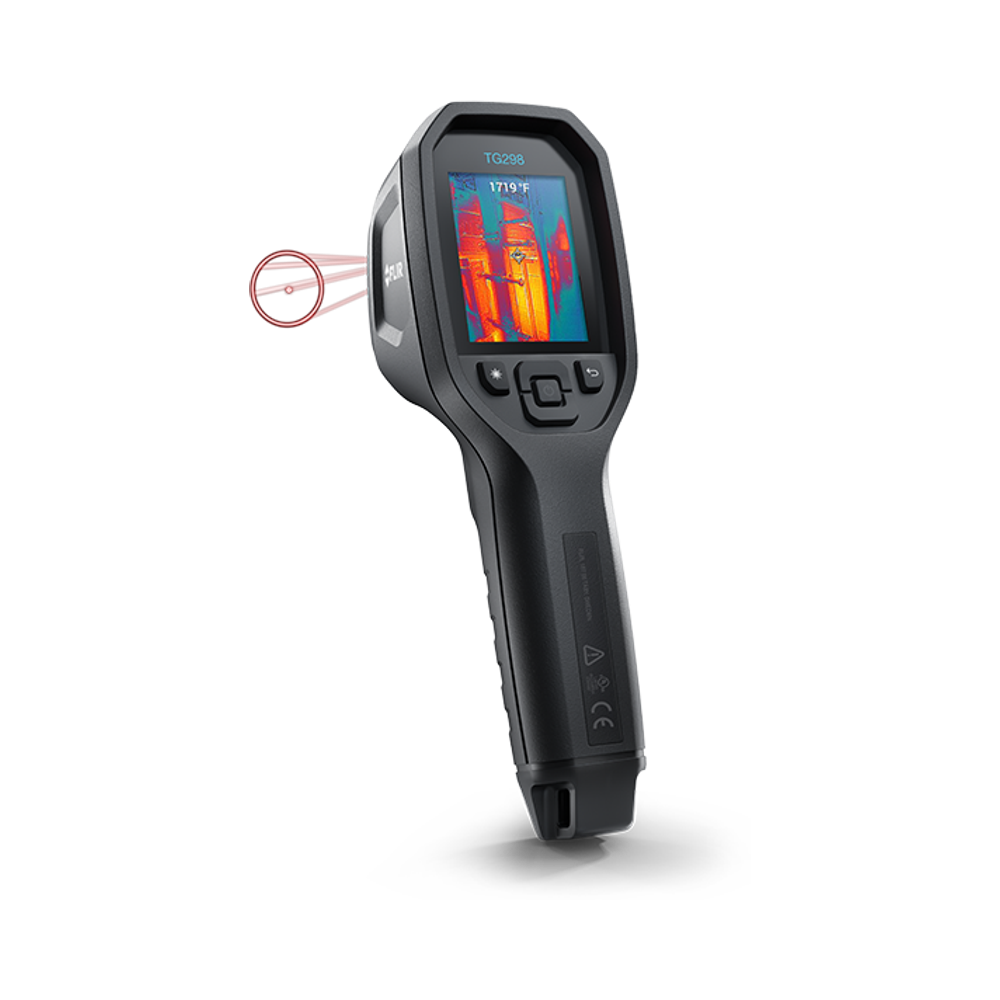

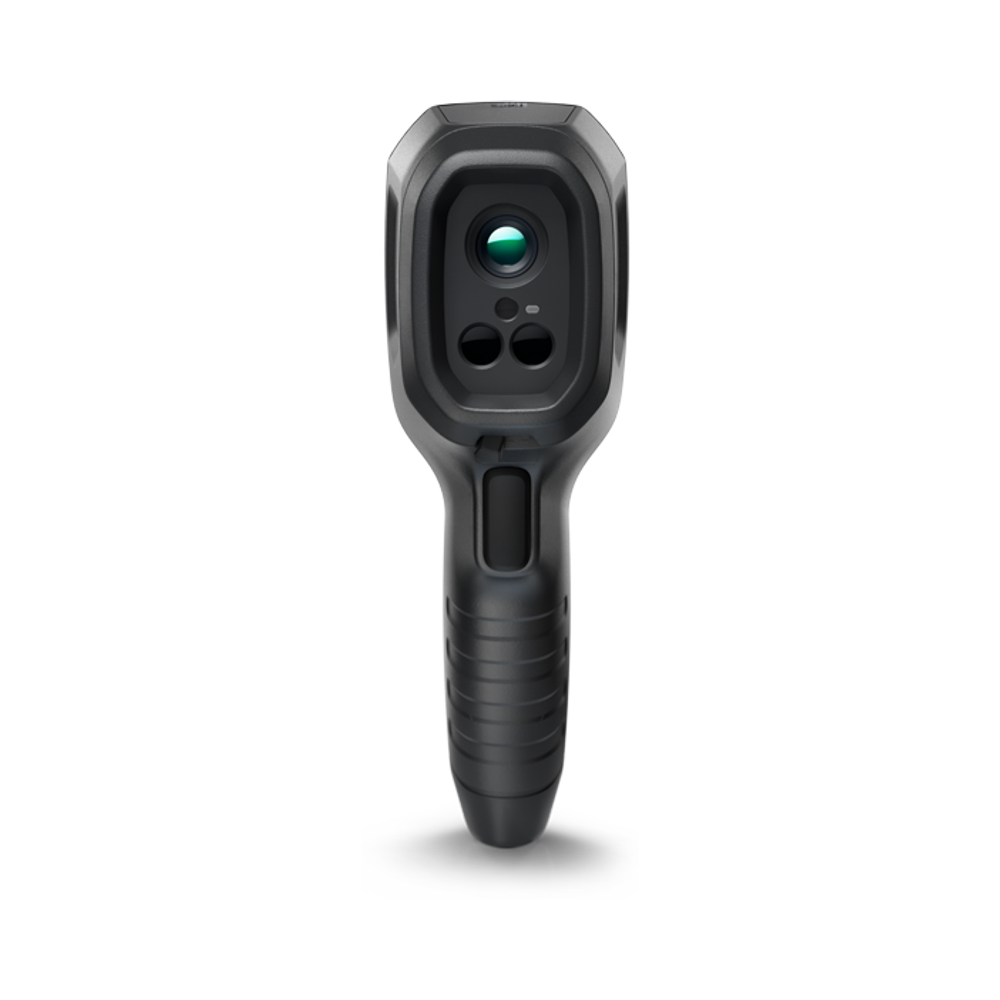

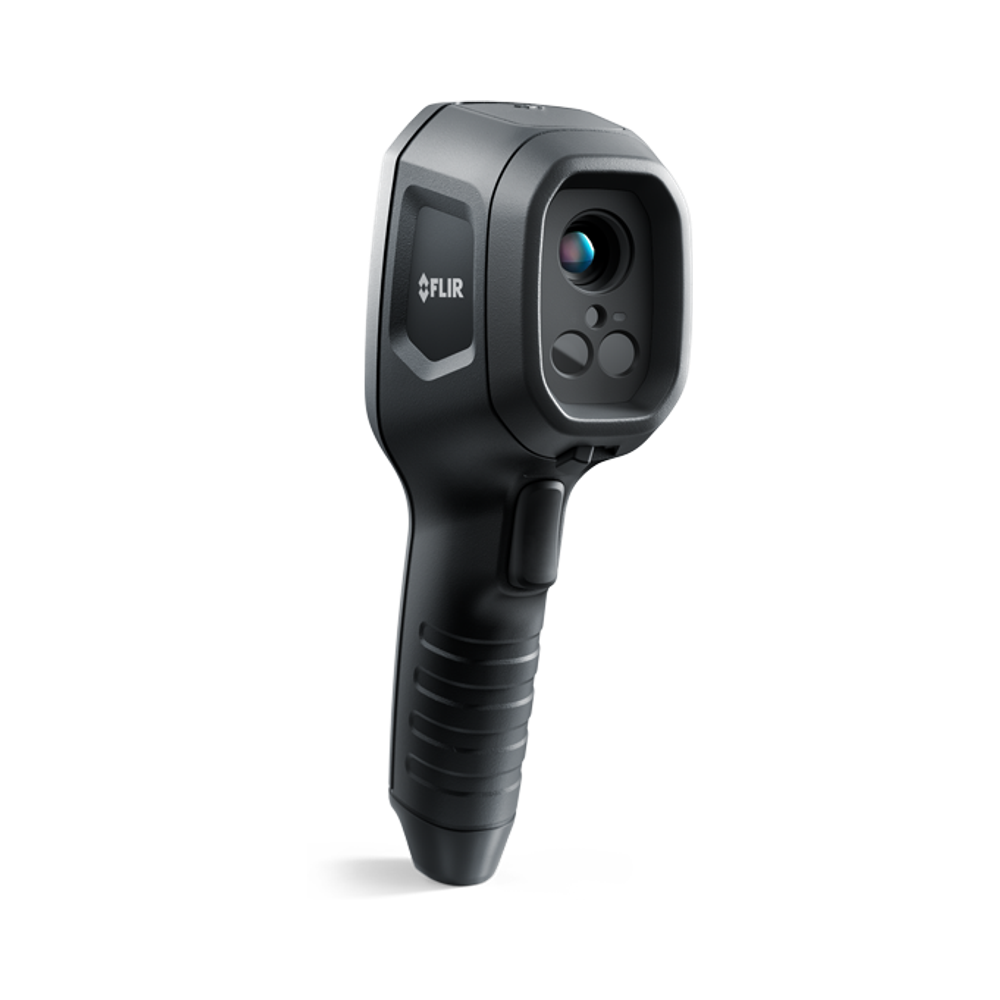

Flir TG298 TG298 8.7 Hz Thermal Camera, 160p × 120p IR, (Super Resolution 320 × 240), up to 1080°C (1976°F)

Features

• The Flir TG298 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1080°C (1976°F)
• Patented Flir MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail
• The Flir TG298 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, forges, as well as manufacturing applications, which allows you to accurately target potential faults, troubleshoot repairs, and monitor processes
• Additionally, the Flir Meterlink® app enables remote monitoring of measurements and seamless documentation of inspection data, making it simple to produce comprehensive reports while in the field

Technical Information

• IR Resolution 160 × 120
• Super Resolution 320 × 240
• Thermal Sensitivity_NETD <70 mK
• Field of view [FOV] 57° × 44°
• Image Modes MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading
• Display 320 × 240, 2.4 in color LCD
• Storage Media 8 GB
• Built_in Digital Camera Yes
• Color palettes Iron, Rainbow, White hot, Black hot, Arctic, Lava
• Detector Pitch 12 µm
• Detector Type Focal plane array (FPA), uncooled microbolometer
• Digital image enhancement Yes
• Field of view [FOV] 57° × 44°
• Focus Focus free
• Image Frequency 8.7 Hz
• Camera size 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
• Camera weight incl battery 0.394 kg (13.9 oz)
• Center spot Yes
• Object Temperature Range −25°C to 1080°C (−13°F to 1976°F)
• Spot Meter Center spot on/off
• Display 320 × 240, 2.4 in color LCD
• Image Storage Capacity 8 GB
• Interfaces USB 2.0, Bluetooth
• Memory Type Internal
• METERLiNK Yes
• Battery operating time 5 hours continuous scanning, 4.5 hours with laser on
• Battery Type Rechargeable Li ion battery
• Battery voltage 3.7 V
• Charging system Battery is charged inside the camera
• Charging Temperature 0°C to 45°C (32°F to 113°F)
• Charging Time 3 hours to 90%, 4 hours to 100%
• Certifications CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
• Drop test Designed for 2 m (6.6 ft)
• Safety CE/CB/EN61010/UL
• Form Factor Pistol

Items Included

• TG298
• Wrist Strap Lanyard
• Pouch
• USB Type-C cable
• Printed Documentation

Downloads

DatasheetUser Manual-en
