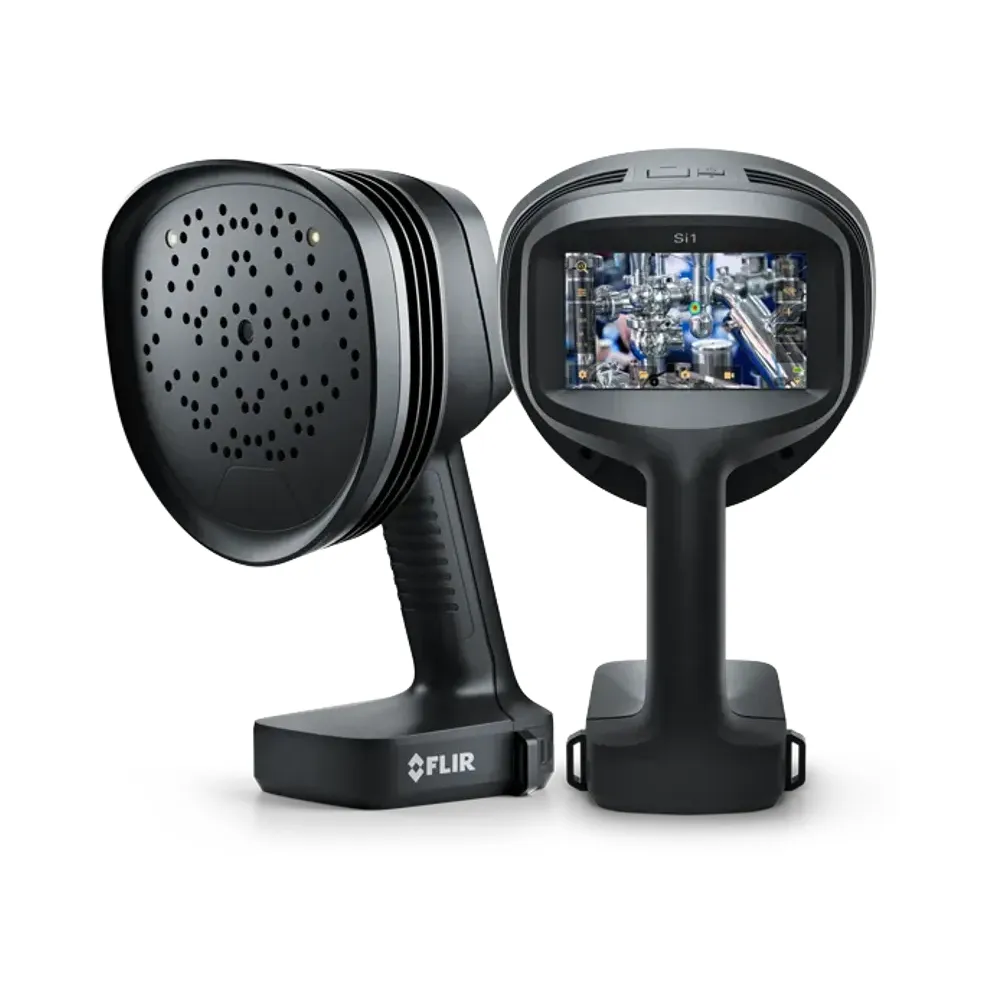

Flir T912537 Si1-LD Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

Model #   T912537

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Bandpass filtering allows manual adjustment of the frequencies being analyzed
  • The Si1's advanced hardware and algorithms provide increased sensitivity compared to many cameras with more microphones
  • Quantify leak severity in real time with this lightweight, smart tool, with simple online or offline reporting options

Technical Information

  • Acoustic Measurement Low-noise MEMS microphones, real-time sound visualization
  • Distance From 0.3 m (1.0 ft) up to 130 m (427 ft)
  • Leak Rate Minimum Detectable Leak Rate (MDLR)
  • Wireless Data Transfer Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
  • Camera software update Automatic over Wi-Fi - USB via computer
  • Field of view (FOV) 65° diagonal
  • Video Frame Rate (Camera) 60 fps / Acoustic image
  • Video Image Resolution 1280 × 720
  • Zoom 8x Digital zoom
  • Able to Quantify Compressed air
  • Acoustic Measurement Low-noise MEMS microphones, real-time sound visualization
  • Bandwidth 2 kHz to 100 kHz
  • Detection Threshold 20 kHz
  • Distance From 0.3 m (1.0 ft) up to 130 m (427 ft)
  • Leak Rate Minimum Detectable Leak Rate (MDLR)
  • Display Size
  • Protection Class IP54
  • Battery Size 85 mm × 77 mm (RRC2504)
  • Packaging Size 490 mm × 365 mm × 190 mm (19.3 in × 14.4 in × 7.5 in)
  • Packaging Type Hard transport case
  • Packaging Weight 6 kg (13 lb)
  • Size 184 mm × 276 mm × 167 mm (7 in × 11 in × 6 in)
  • Total Weight [Including All Accessories] 1.45 kg
  • Weight 1.2 kg
