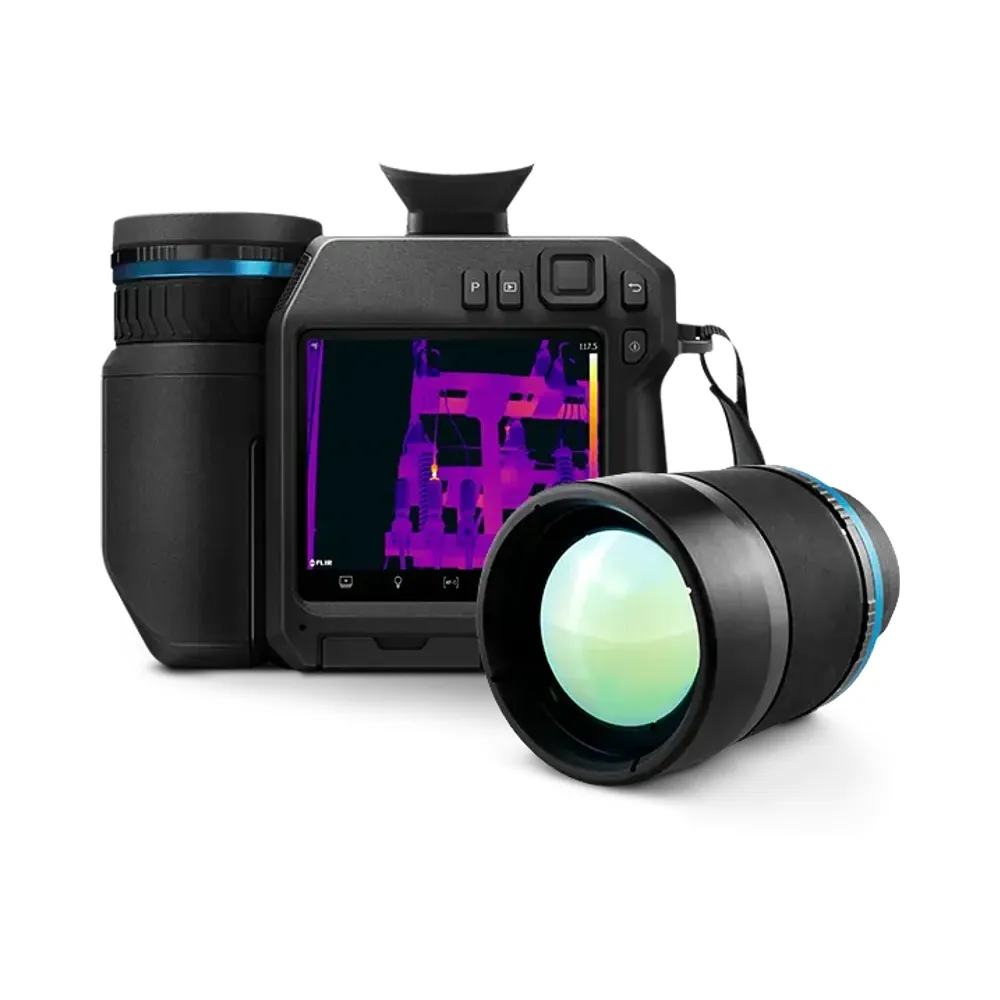

Flir T840 24° +6° T840 Thermal Imaging Camera with 6 & 24° Lenses, 464 × 348p IR, with Viewfinder
Model # T840 24° +6°Key Features
?
Question about this product?
Features
- Ergonomic design for comfortable all-day use
- FLIR FlexView™ dual field of view lens for instant switching from wide-area to telephoto scanning
- 6° telephoto lens option for accurate temperature measurement of small targets from greater distances
- Scan large areas from a safe distance with 464 x 348 resolution, and reduce the strain of full-day inspections with the 180° rotating optical block
- Get industry-leading image clarity from FLIR Vision Processing™, MSX®, and UltraMax® to help you make the right call – fast
- Get the most out of your workday with FLIR Ignite automatic image uploading directly from the camera and rapid reporting features that help you organize findings in the field
- Integrated eyepiece viewfinder and bright 4-inch color LCD display for easy outdoor inspections in bright conditions
- 180° rotating lens platform for flexible and efficient scanning in hard-to-reach areas
Technical Information
- IR Resolution 464 × 348 pixels (161,472 pixels)
- Thermal Sensitivity/NETD <40 mK (24° lens) or <50 mK (6° lens) @ 30°C (86°F)
- Accuracy ±2°C (±3.6°F) or ±2% of reading
- Digital Camera 5 MP, with built-in LED photo/video lamp; disabled when 6° lens in use
- Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media Removable SD card
- Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Type and Pitch Uncooled microbolometer, 17 µm
- Digital Camera 5 MP, with built-in LED photo/video lamp; disabled when 6° lens in use
- Digital Zoom 1-6x continuous
- f-number 24° lens
- Focus Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
- Image Frequency 30 Hz
- IR Resolution 464 × 348 pixels (161,472 pixels)
- Lens Identification Automatic
- Macro Mode 71 µm effective spotsize
- Minimum Focus Distance 24° lens
- Non-radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture Resizable and movable
- Radiometric IR video recording Real-time radiometric recording (.csq)
- Radiometric IR video streaming Yes, over UVC
- Spectral Range 7.5 - 14.0 µm
- Thermal Sensitivity/NETD <40 mK (24° lens) or <50 mK (6° lens) @ 30°C (86°F)
- UltraMax Quadruples pixel count; activated in menu and processed in FLIR Tools
- Viewfinder Yes
- Measurement & Analysis Accuracy ±2°C (±3.6°F) or ±2% of reading
- Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F)
- Spot Meter 3 ea. in live mode
- Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text Predefined list or touchscreen keyboard
- Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Battery operating time Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery type Li-ion battery, charged in camera or on separate charger
- Operating Temperature Range -15°C to 50°C (5°F to 122°F)
- Safety EN/UL/CSA/PSE 60950-1
- Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Items Included
- Infrared camera with lens
- Small viewfinder eyecup
- 2 x batteries
- Battery charger
- Hard transport case
- Lanyards
- front lens cap
- Power supplies
- Printed documentation
- SD card (8 GB)
- Cables (USB 2.0 A to USB Type-C
- USB Type-C to HDMI
- USB Type-C to USB)
- License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
