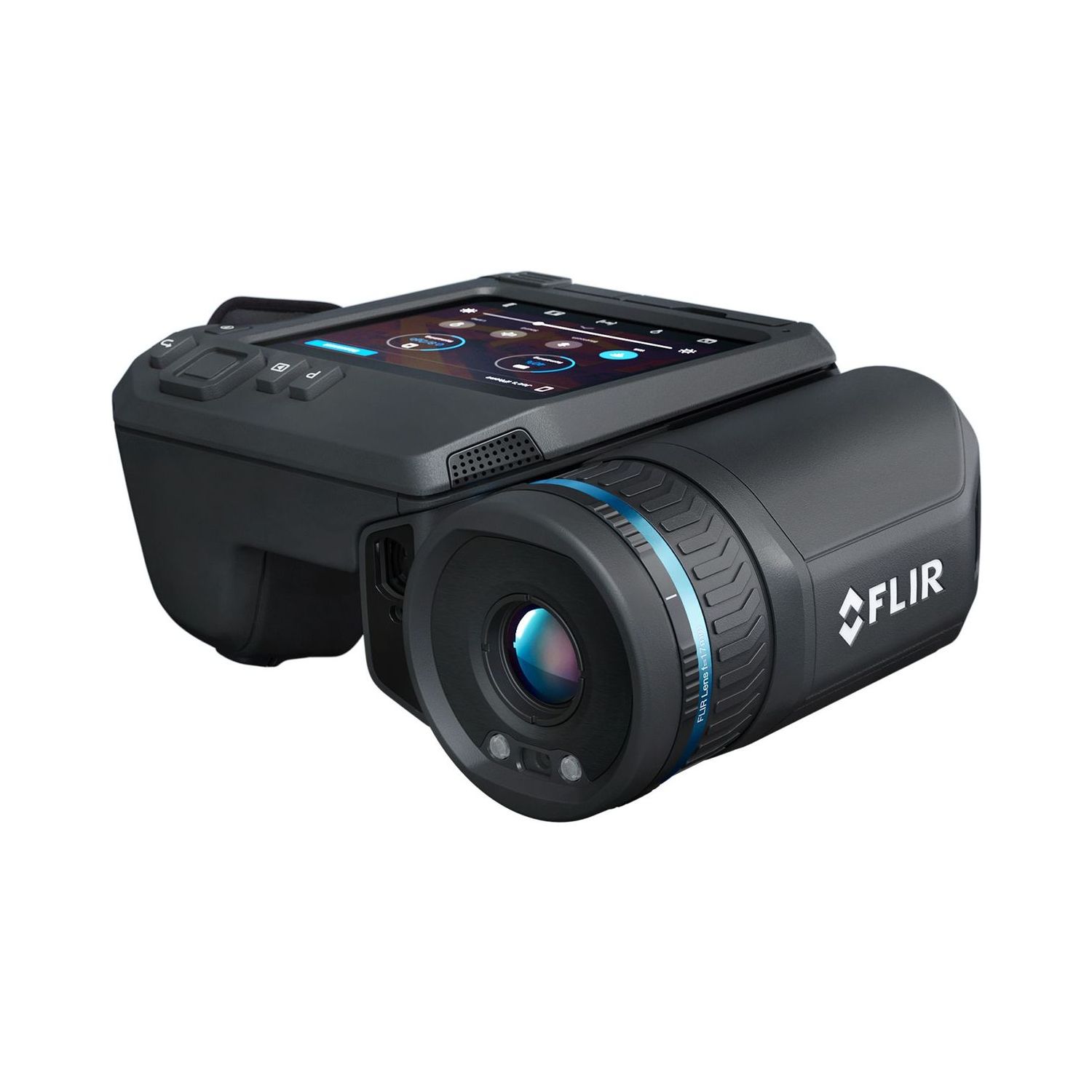

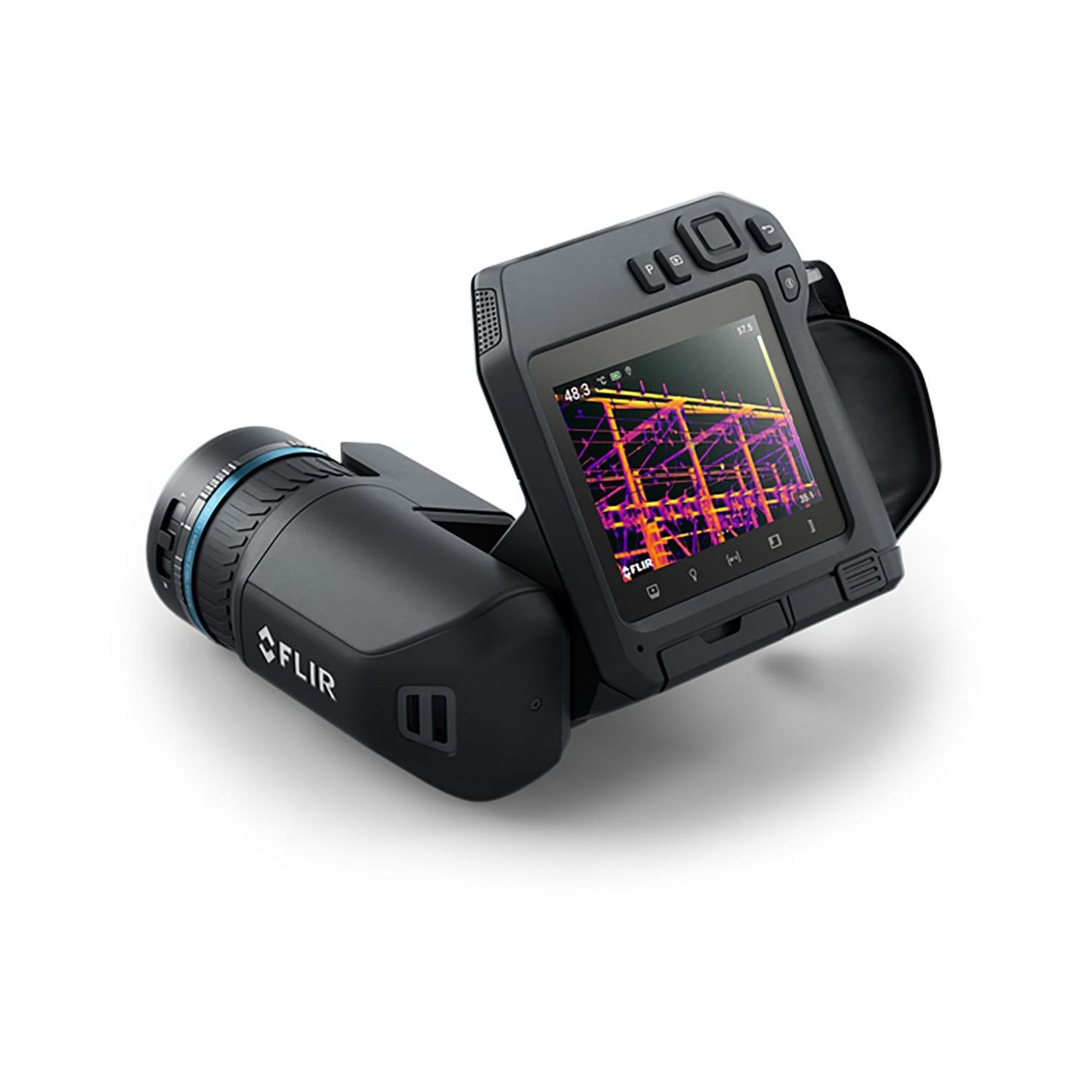

Flir T560 24° 30 Hz Thermal Imaging Camera with 24° and 42° FOV Lenses, 640 x 480p, -20 to 120°C / 0 to 650°C / 300°C to 1500°C
Model # T560 24°Key Features
?
Question about this product?
Features
- Ergonomic and high-resolution design with a 640 × 480 (307,200 pixel) thermal imaging camera, bright 4" LCD, and 180° rotating lens platform for comfortable diagnostics, even in hard-to-reach areas
- Advanced measurement tools including 1-Touch Level/Span and laser-assisted autofocus for accurate temperature measurements every time
- FlexView™ dual field-of-view lens compatibility allowing instant switching between wide-area and telephoto scanning without changing the lens
- FLIR Inspection Route Mode enabling download and execution of survey plans directly from FLIR Thermal Studio Pro with FLIR Route Creator plugin for efficient and logical temperature data recording
- Quick troubleshooting and repairs to identify hot spots, find hidden faults, and confirm repairs effectively
Technical Information
- Thermal Sensitivity/NETD <40 mK @ 30°C (86°F)
- Accuracy ±2°C (±3.6°F) or ±2% of reading
- Field of view (FOV) 24° × 18°
- Digital Camera 5 MP, with built-in LED photo/video lamp
- Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media Removable SD card
- Camera software update Using USB cable or SD card
- Color Black
- Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Resolution 640 × 480
- Detector Type and Pitch Uncooled microbolometer, 12 µm
- Digital Camera FOV 53° × 41°
- Digital Zoom 1–8× continuous
- Field of view (FOV) 24° × 18°
- f-number 1.3
- Focal Length 17 mm (0.67 in)
- Focus Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
- Frame Rate [Full Window] 30 Hz
- Gallery Yes
- Image Frequency 30 Hz
- Laser Alignment Position is automatically displayed on the infrared image
- Lens 24°
- Lens Identification Automatic
- Minimum Focus Distance 0.15 m (0.49 ft)
- Minimum Focus Distance with MSX 0.5 m (1.64 ft)
- Non-radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture Resizable and movable
- Radiometric IR video recording Real-time radiometric recording (.csq)
- Radiometric IR video streaming Over UVC
- Spatial resolution (IFOV) 0. 7 mrad/pixel
- Spectral Range 7.5 - 14 µm
- Thermal Sensitivity/NETD <40 mK @ 30°C (86°F)
- UltraMax Quadruples pixel count; activated in menu and processed in FLIR Tools
- Video Lamp Built-in LED light
- Viewfinder No
- Visual Image Yes
- Visual Video Recording H.264 to memory card
- Visual Video Streaming Yes
- Measurement & Analysis Accuracy ±2°C (±3.6°F) or ±2% of reading
- Automatic hot & cold detection Automatic maximum/minimum markers within area
- Color Alarm (Isotherm) Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
- Difference Temperature Yes
- Emissivity Correction Yes, variable from 0.01 to 1.0 or selected from materials list
- Measurement Corrections Yes
- Measurement Function Alarm Audible/visual alarms (above/below) on any selected measurement function
- Measurement Presets No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2
- Object Temperature Range -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
- Reference Temperature Yes
Items Included
- Infrared camera with lens
- 2 batteries
- Battery charger
- Hard transport case
- Lanyards, front lens cap
- Printed documentation
- SD card (8 GB)
- Cables (USB 2.0 A to USB Type-C
- USB Type-C to HDMI
- USB Type-C to USB Type-C)
- License card: FLIR Thermal Studio Pro (3 month subscription)
