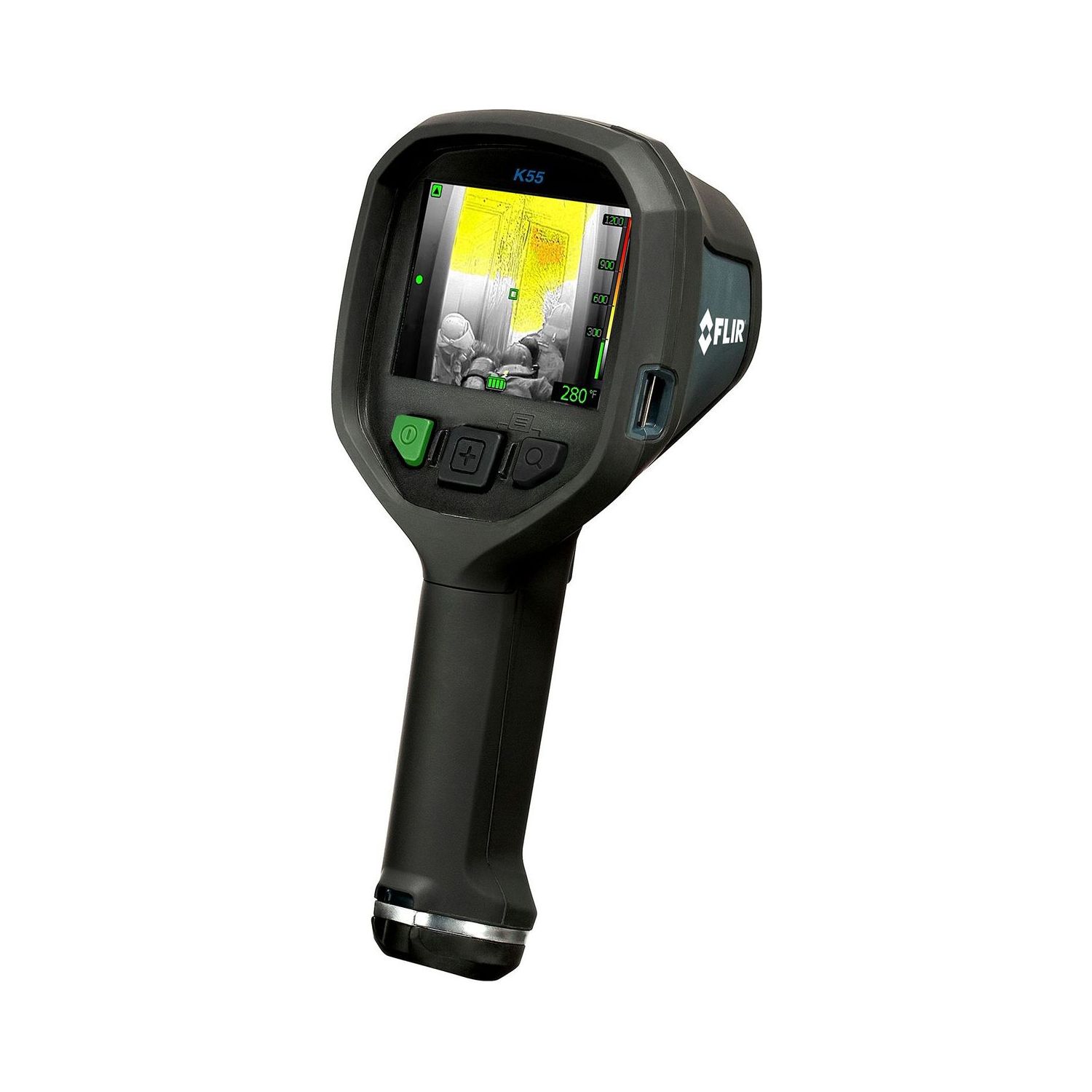

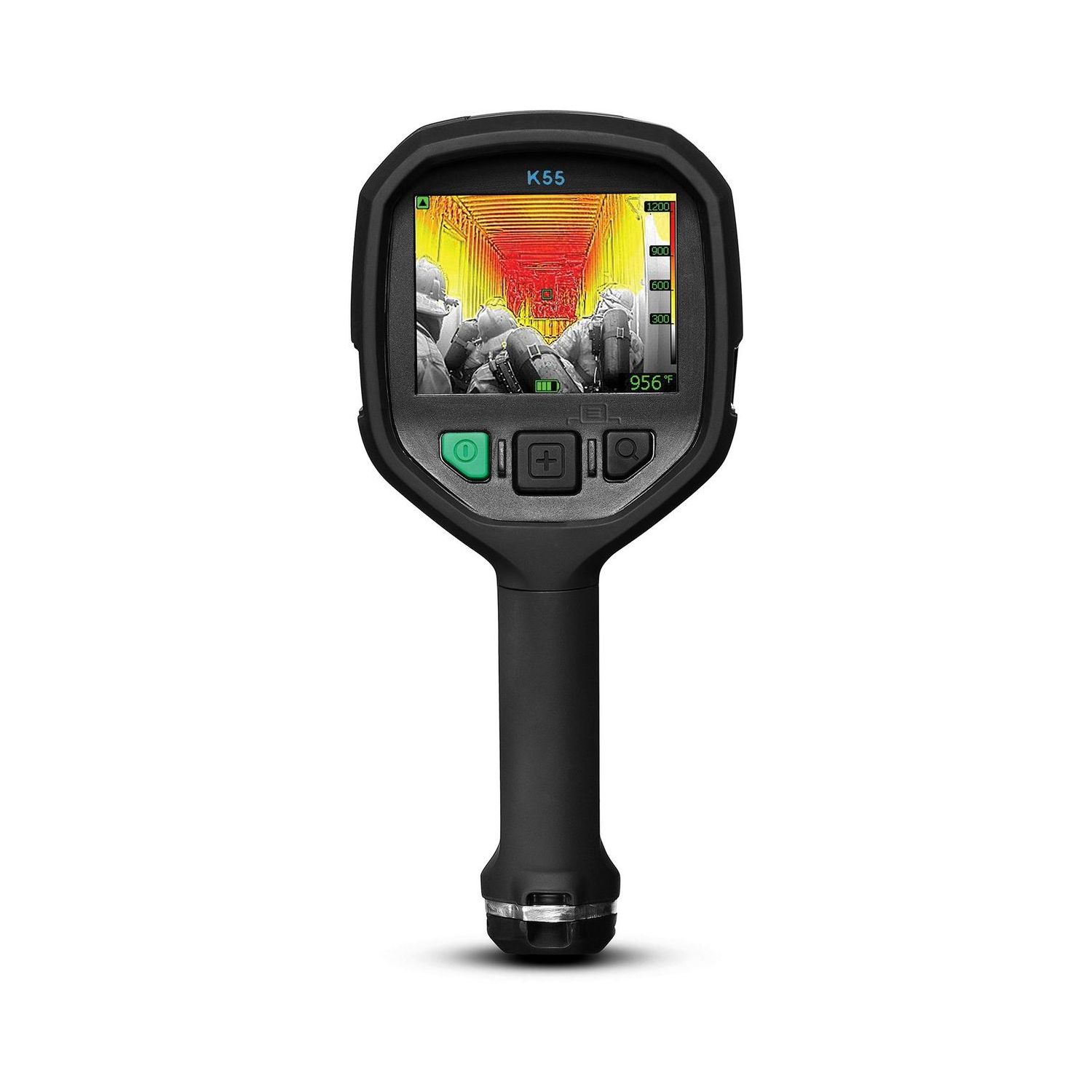

Flir K55 Handheld Thermal Imaging Camera (3-Button) Kit for Firefighters, –20 to 150°C, 320 x 240 Pixels, 60 Hz

Model #   K55

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • With a FLIR K55 TIC in hand, you can attack fires more strategically, maneuver through smoke more easily, and save lives
  • The K55 displays crisp thermal images on a bright LCD, helping you navigate better and expedite critical decisions
  • The 320 x 240 pixel IR sensor and FSX™ Flexible Scene Enhancement produce detail-rich imagery at a 60 Hz frame rate that keeps up with the action
  • Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis
  • K55 cameras are protected by FLIR's 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector

Technical Information

  • IR Resolution 320 × 240 pixels
  • Display 4 in. LCD, 320 × 240 pixels, backlit
  • Object Temperature Range –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
  • Image Modes IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
  • Camera weight incl battery 1.1 ±0.05 kg (2.4 ±0.1 lb.)
  • Camera size (L x W x H) 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
  • Contrast optimization Digital image enhancement using FSX
  • Depth of Field 0.84 m to infinity (33 in. to infinity)
  • Detector Type Focal plane array (FPA), uncooled microbolometer
  • Field of view (FOV) 51° × 38°
  • f-number 1.25
  • Focal Length 9 mm (0.35 in.)
  • Focus Fixed
  • Image Frequency 60 Hz
  • IR Resolution 320 × 240 pixels
  • Non-radiometric IR video recording MPEG-4 to internal flash memory
  • Non-radiometric IR video streaming Uncompressed colorized video using USB
  • Pitch 25 µm
  • Spatial resolution (IFOV) 2.8 mrad
  • Spectral Range 7.5–13 µm
  • Storage Capacity 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images
  • Thermal Sensitivity/NETD <30 mK @ 30°C (86°F)
  • Zoom 2× digital zoom
  • Accuracy ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
  • Auto Range Yes, selectable on/off using FLIR Tools®
  • Camera size (L x W x H) 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
  • Camera weight incl battery 1.1 ±0.05 kg (2.4 ±0.1 lb.)
  • Isotherm Yes
  • Object Temperature Range –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
  • Set-up Commands Local adaptation of units, date and time formats
  • Spot Meter 1.0
