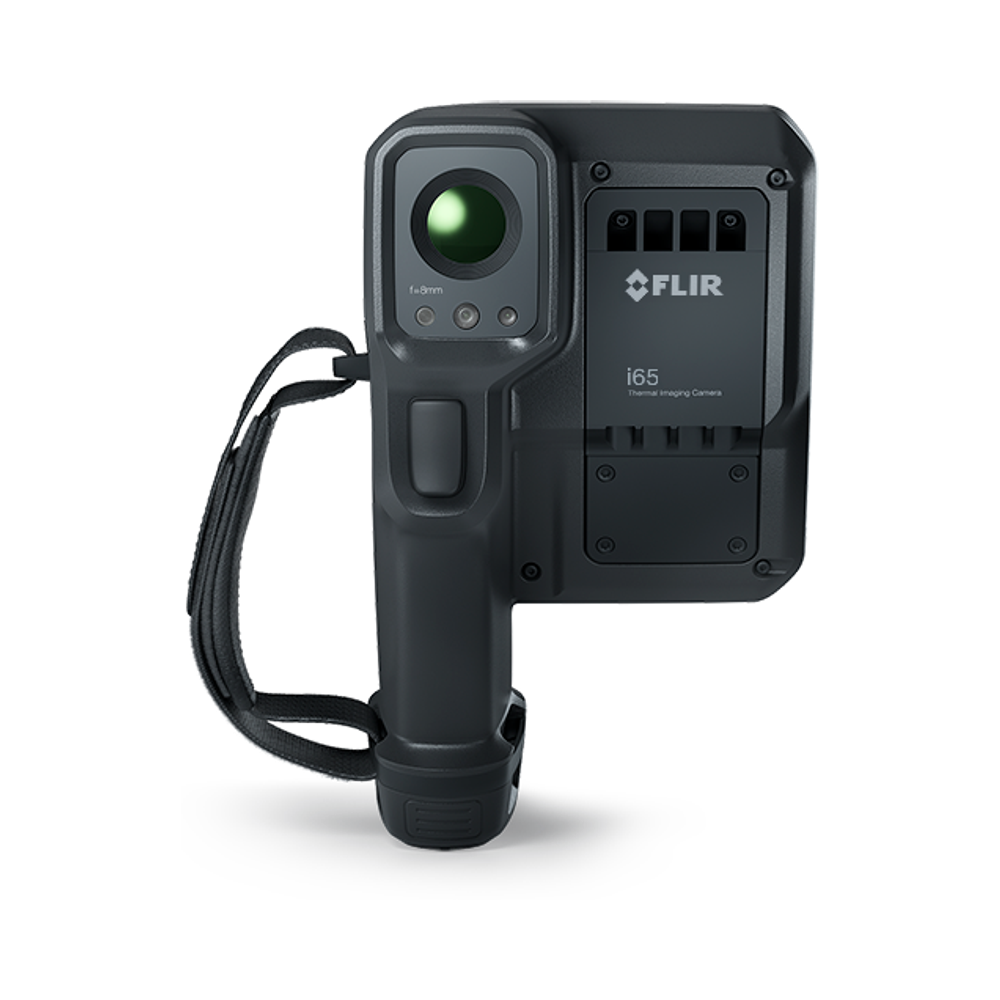

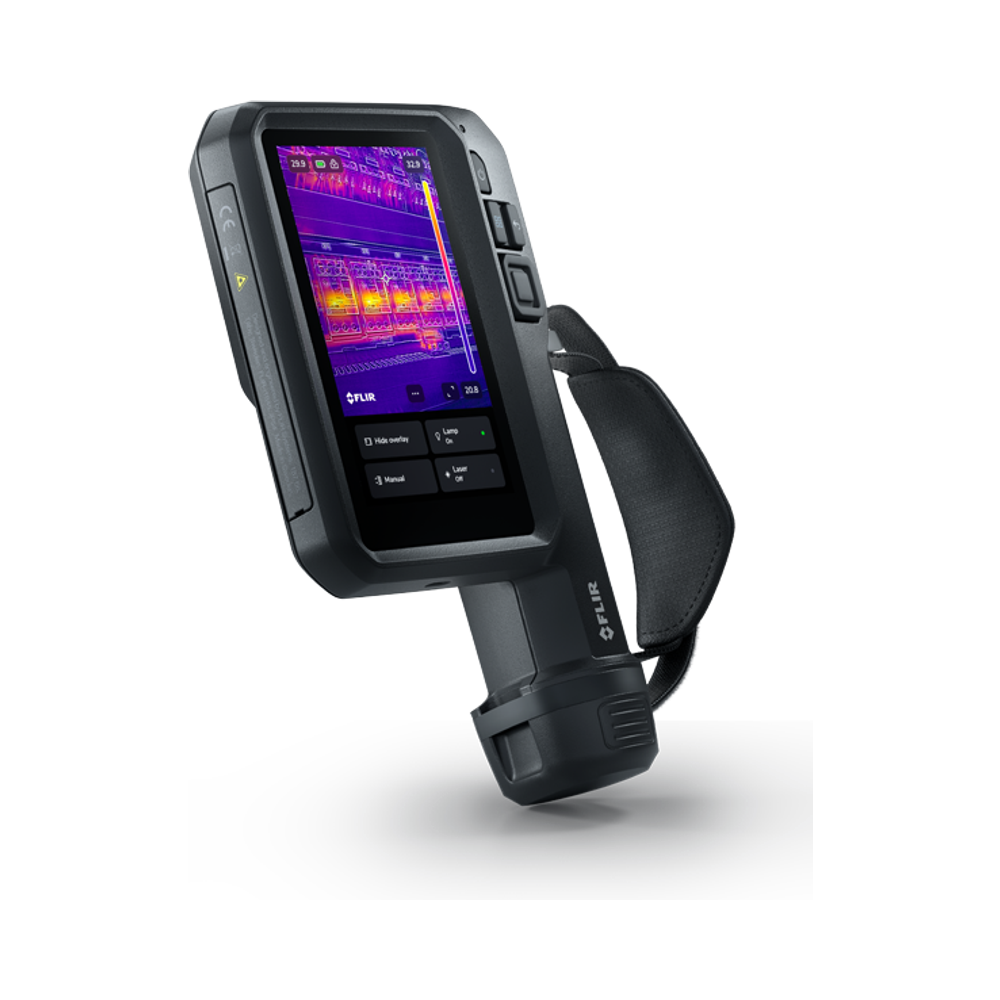

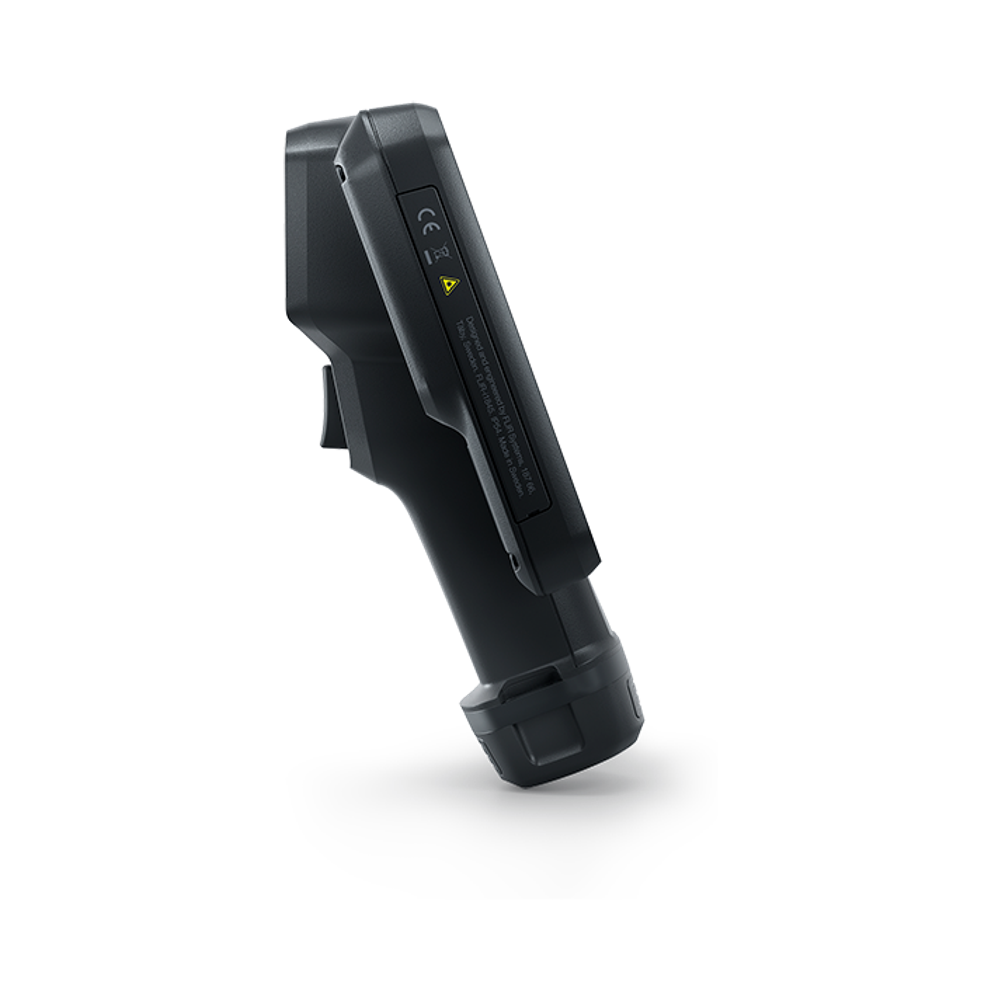

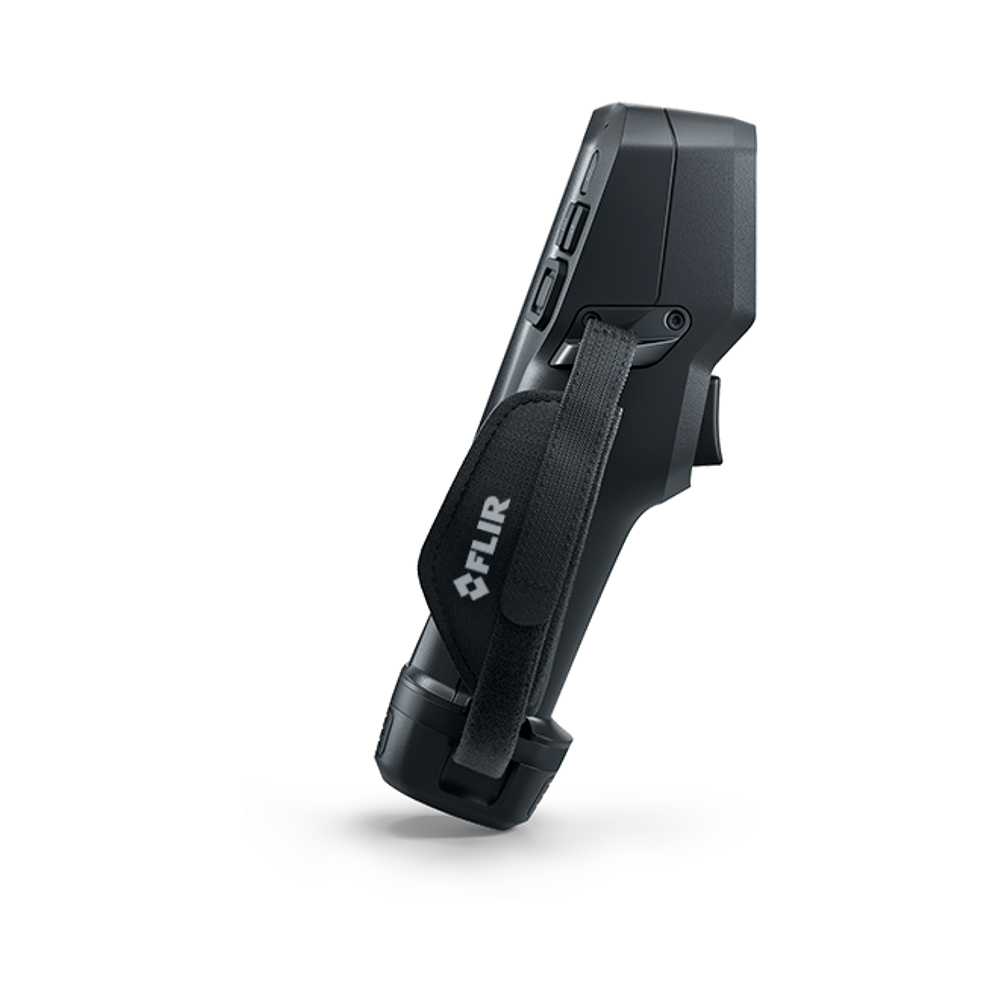

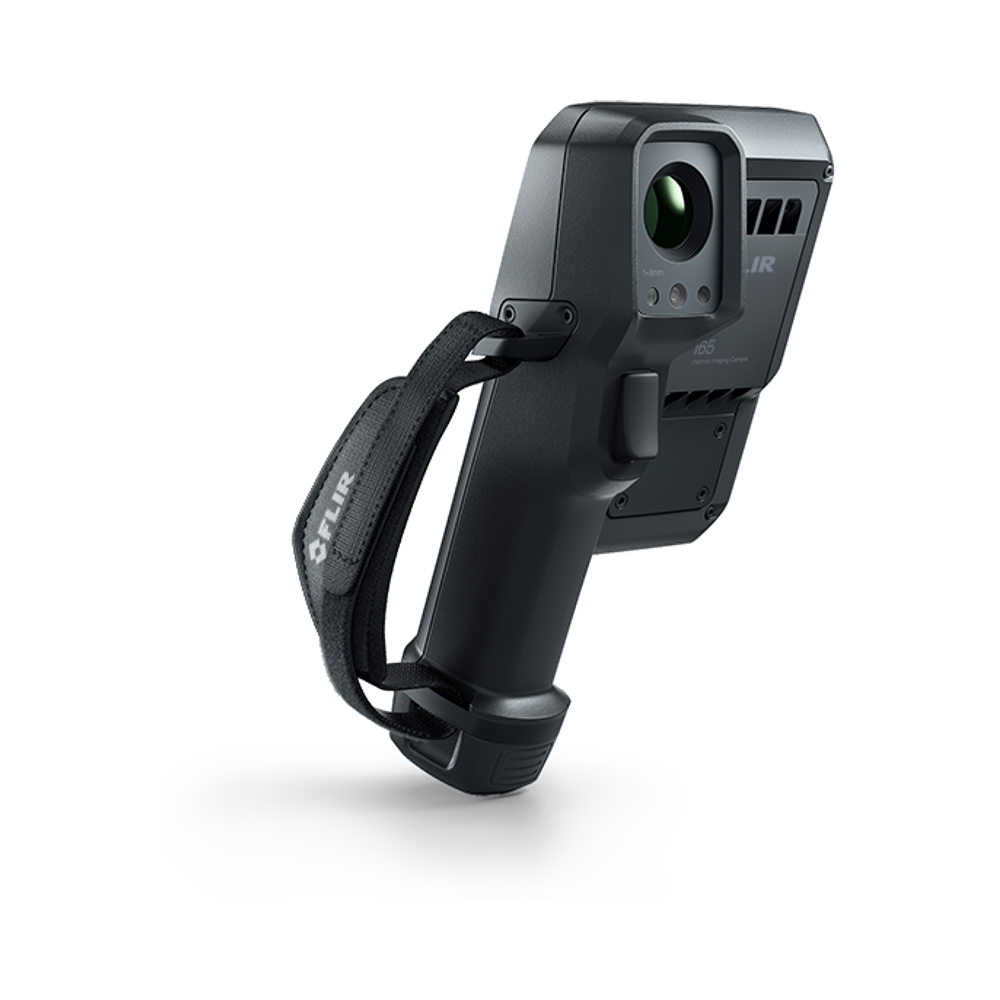

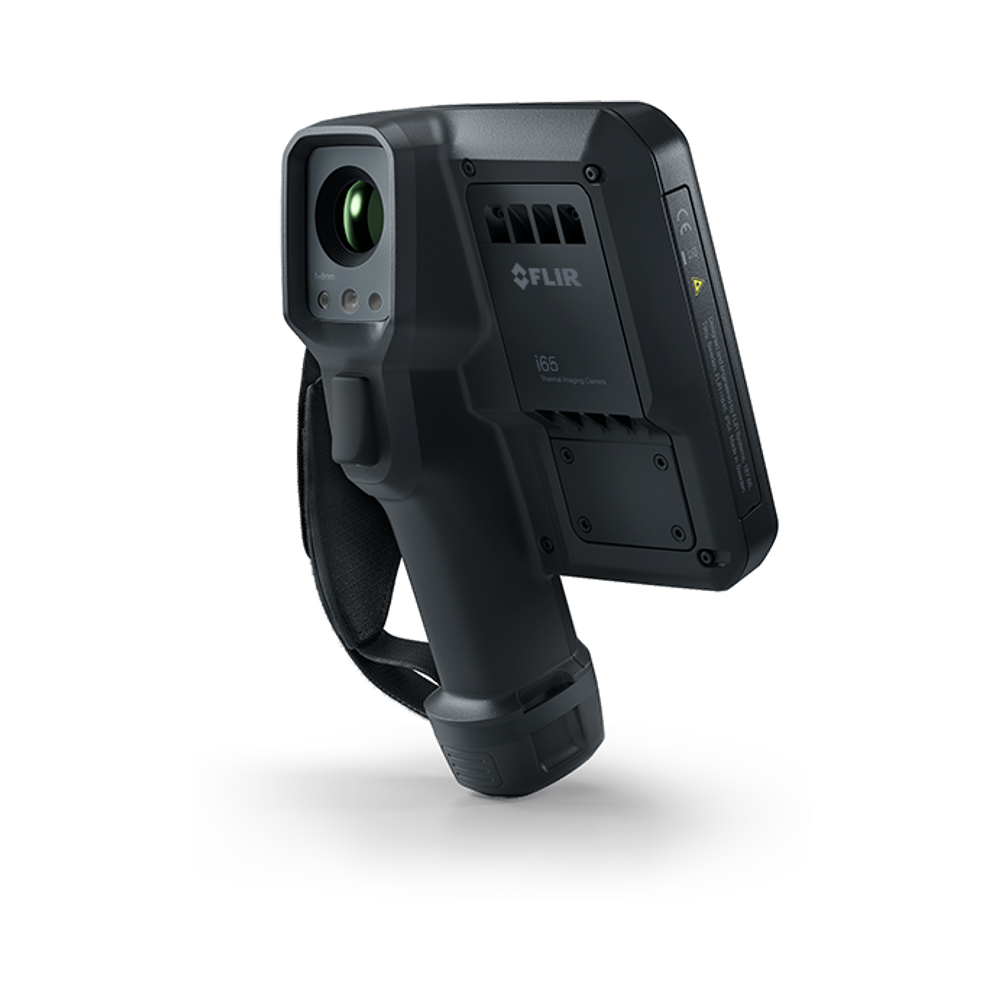

Flir i65 App-Enabled Thermal Imaging Camera with LTE, -20°C to 550°C

Model # i65

Key Features

Qty:

Question about this product?

The Flir i65 brings the power of NFPA 70B-compliant thermal inspections to every technician, no matter their experience level
Built on the new ACE operating system, it works just like a smartphone for thermography - powered by apps, connected to the cloud, and ready to scale across teams
With high-resolution 480 × 640 thermal imaging, an intuitive 5” touchscreen, rugged, glove-friendly design, and built-in LTE connectivity, this means technicians can securely upload thermal data, share reports, and collaborate in real time - directly from the field, without needing Wi-Fi access
With sharper detail, guided workflows, and enterprise-grade cybersecurity, the i65 helps organizations cut reporting time, boost uptime, and empower teams everywhere
With the advantage of Flir, 3rd-party, and custom apps, i65 cameras simplify inspections and improve workflow for increased productivity
Apps can reduce the steps between data gathering and consumption, letting you work the way that makes the most sense for your organization
On-board apps can flatten the learning curve, provide safety information, host training, and offer remote support so inexperienced users can perform expert-level inspections
Flir i65 cameras can host a range of apps designed to address documentation and decision-making
The i65 offers built-in LTE for uploading, sharing, and collaborating in real time, no Wi-Fi needed, underpinned by ISO 27001-certified practices

IR Resolution 480 × 640
Thermal Sensitivity_NETD <40 mK at 30°C (86°F)
Temperature Range -20°C to 200°C (-4°F to 392°F), 10°C to 550°C (50°F to 1022°F)
Accuracy ±2°C (±3.6°F) or ±2%
Field of view [FOV] 38° × 49°
Digital Camera 8 MP, Autofocus
Image Modes MSX®, Thermal, Picture-in-Picture, Digital camera
Display 5 in. 720 × 1280 color LCD
Storage Media Internal memory, onboard Flir Ignite cloud and Assetlink connectivity
Cellular Yes
File Formats Standard JPEG, 14-bit measurement data included
Interfaces USB-C - Data transfer to and from PC and Mac device, Display port over USB-C
WiFi IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Battery operating time 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type Rechargeable Lithium-ion battery
Charging system Battery is charged inside the camera or in specific charger (included)
Charging Time 2 hours in charger / 4 hours to 90% capacity in camera
Power Management Automatic shut-down
Drop 2 m (6ft 7 in)
EMC EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Emissivity Table Emissivity table of predefined materials
Encapsulation IP54 (IEC 60529)
Humidity IEC 60068-2-30/24 h 95% relative humidity
Laser Classification Class 2
Shock 25 g (IEC 60068-2-27)
Vibration 2 g (IEC 60068-2-6)
