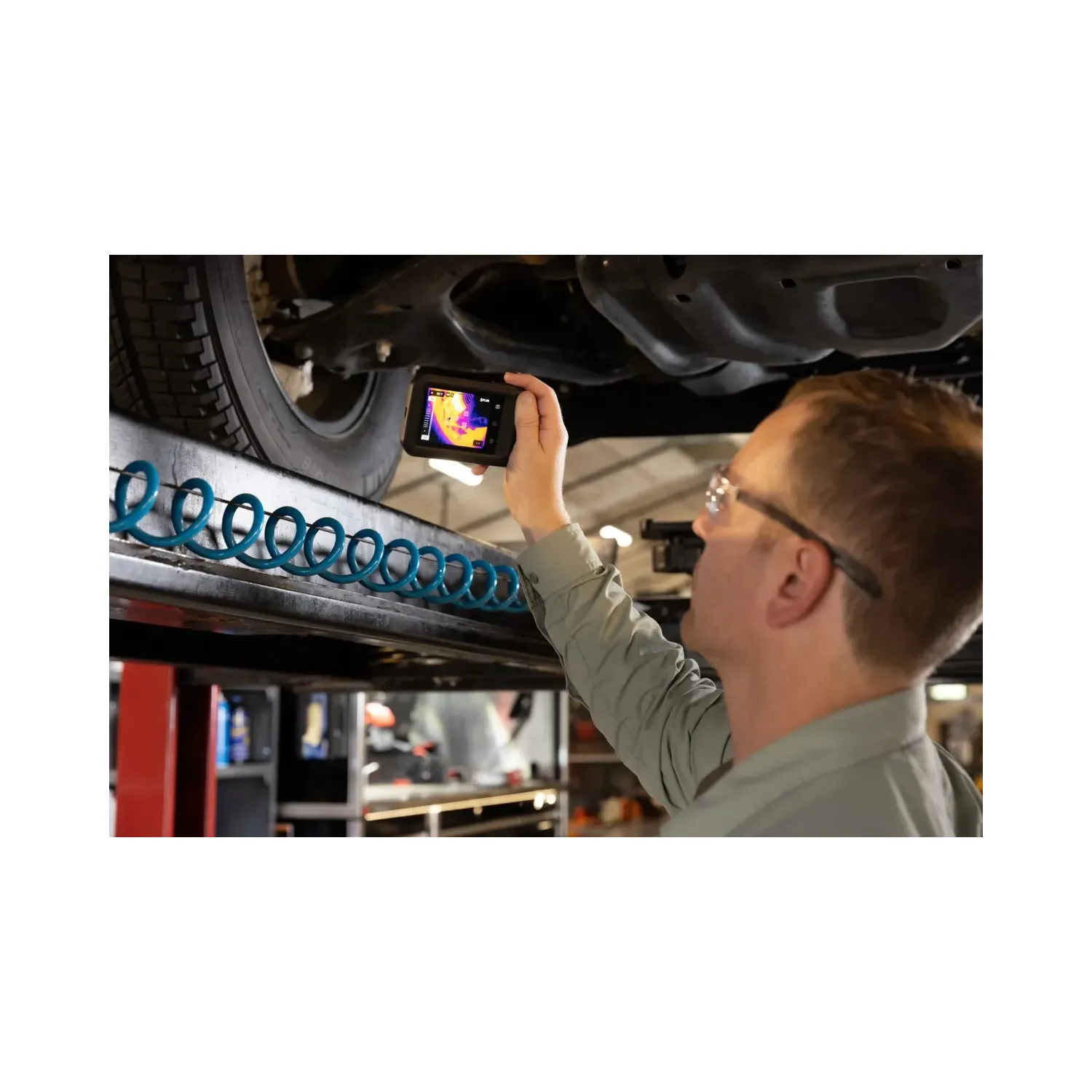

Flir Thermal Cameras C8 Thumbnail 6

Flir Thermal Cameras C8 Thumbnail 7

Flir Thermal Cameras C8 Thumbnail 8

Flir Thermal Cameras C8 Thumbnail 9

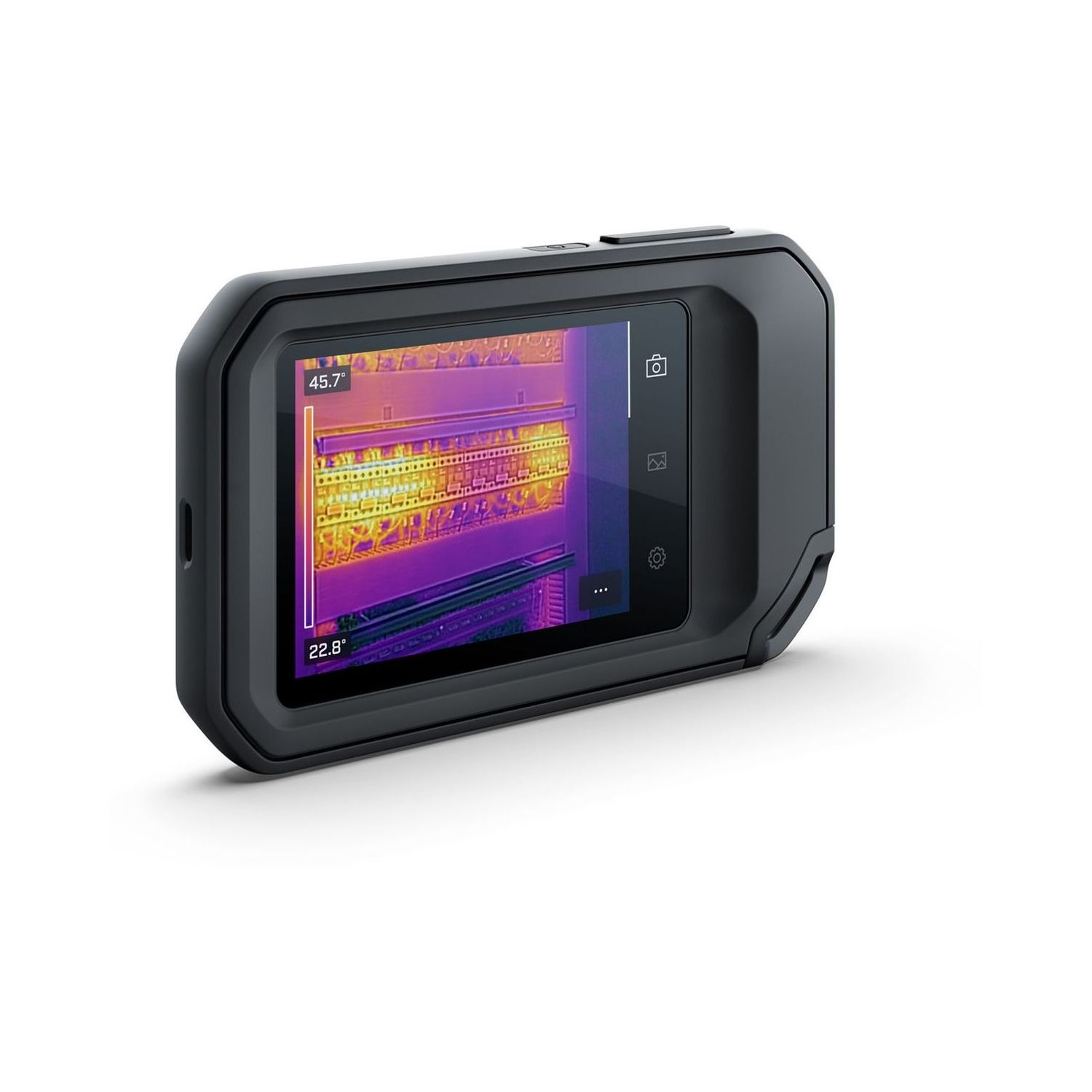

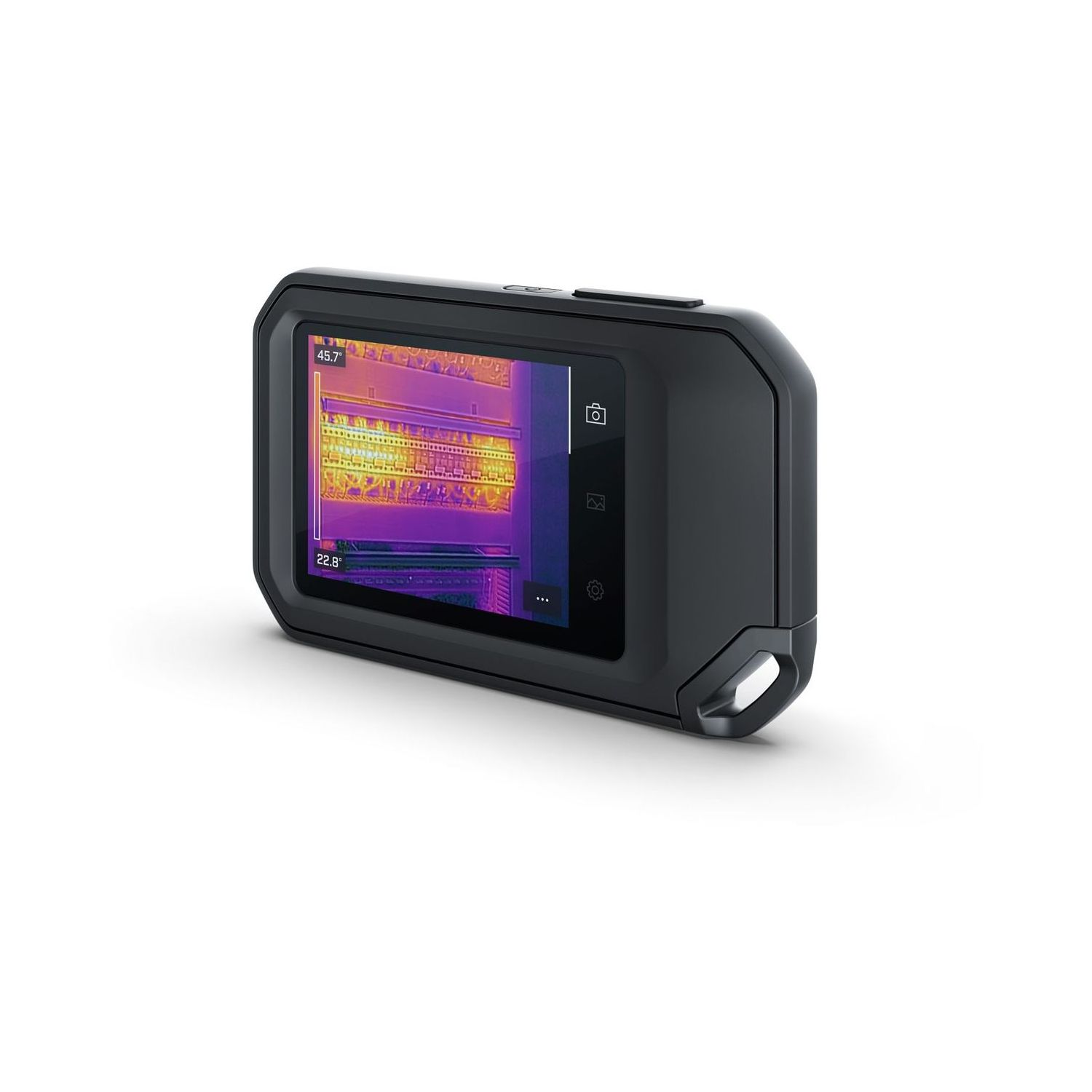

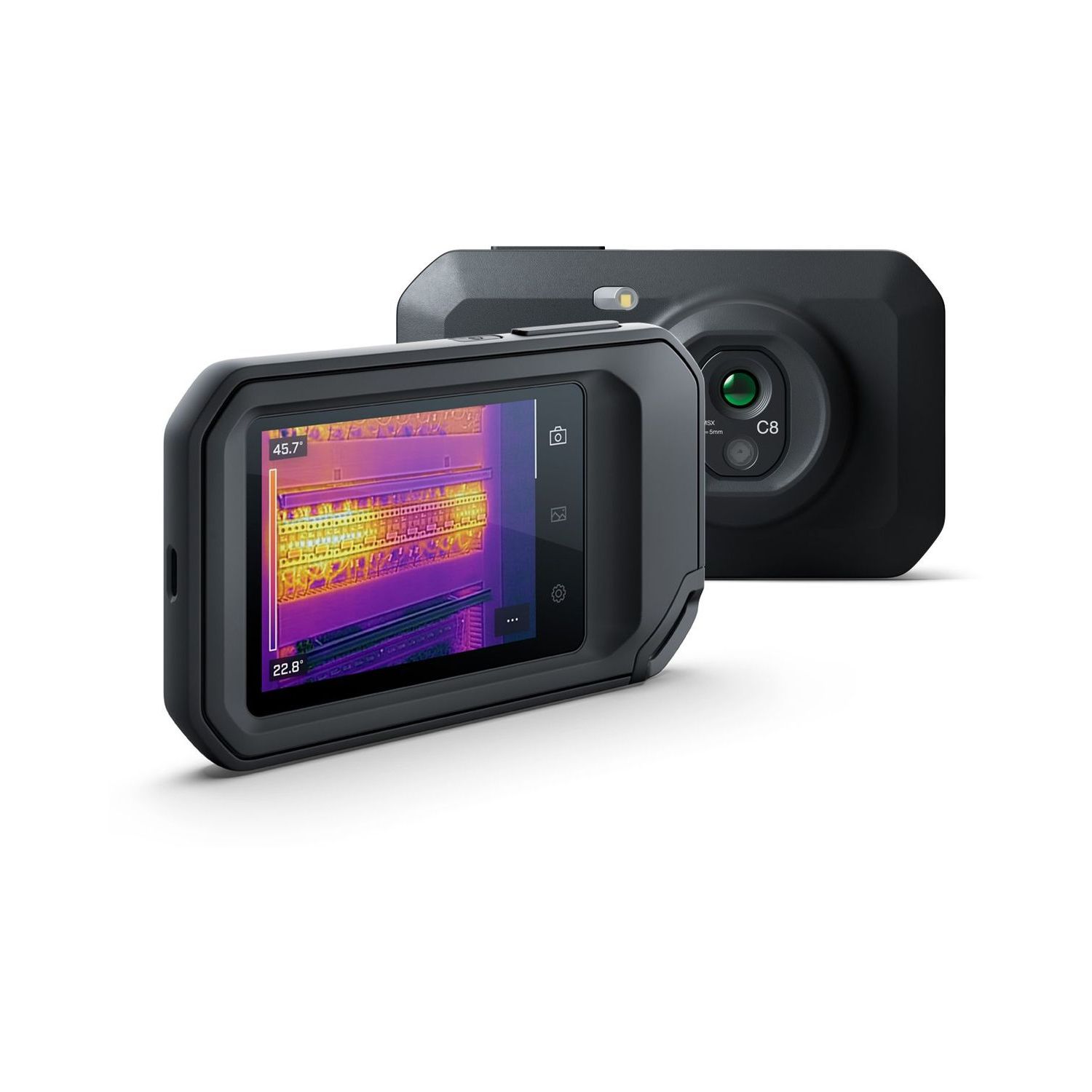

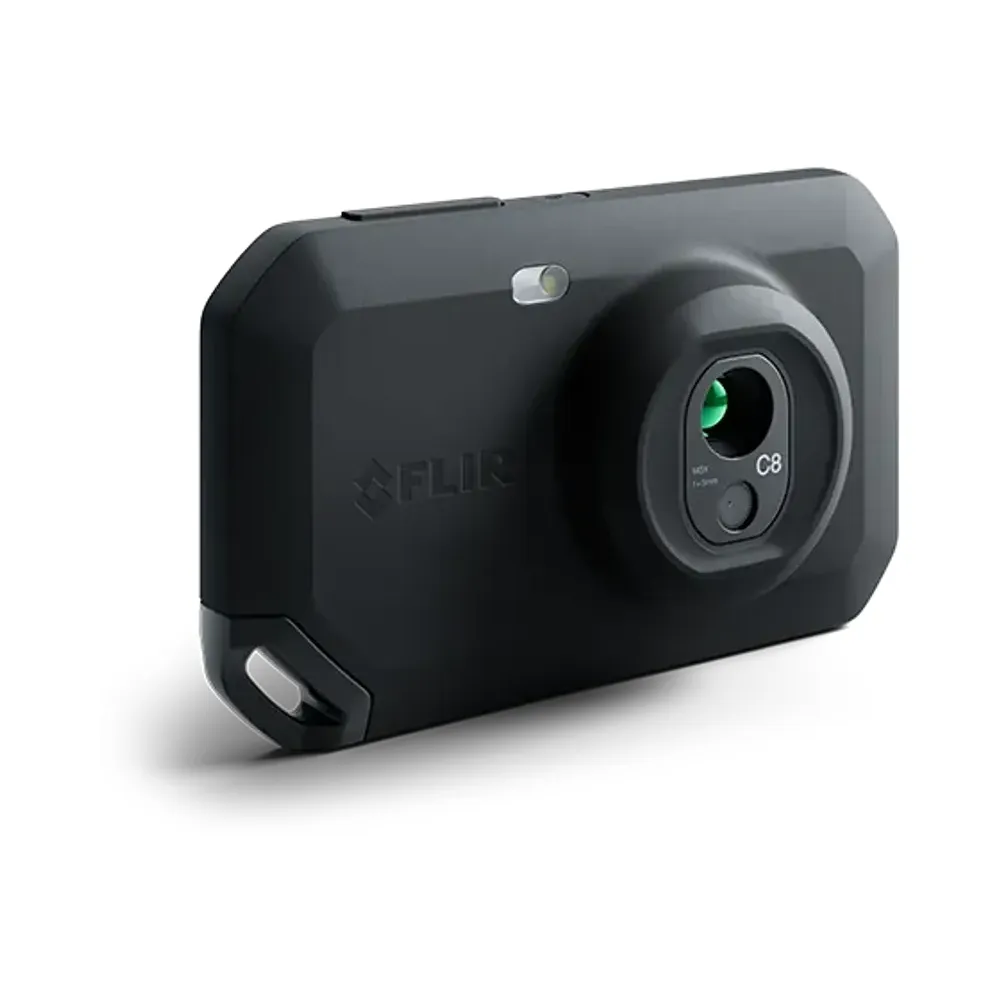

Flir C8 Compact Thermal Imaging Camera, -20°C to 450°C

Model # C8

Key Features

Brand: Flir
Model: C8
Warranty: 1 Year

Qty:

Qty:

?

Question about this product?

Speak to an expert

Learn how to use

Features

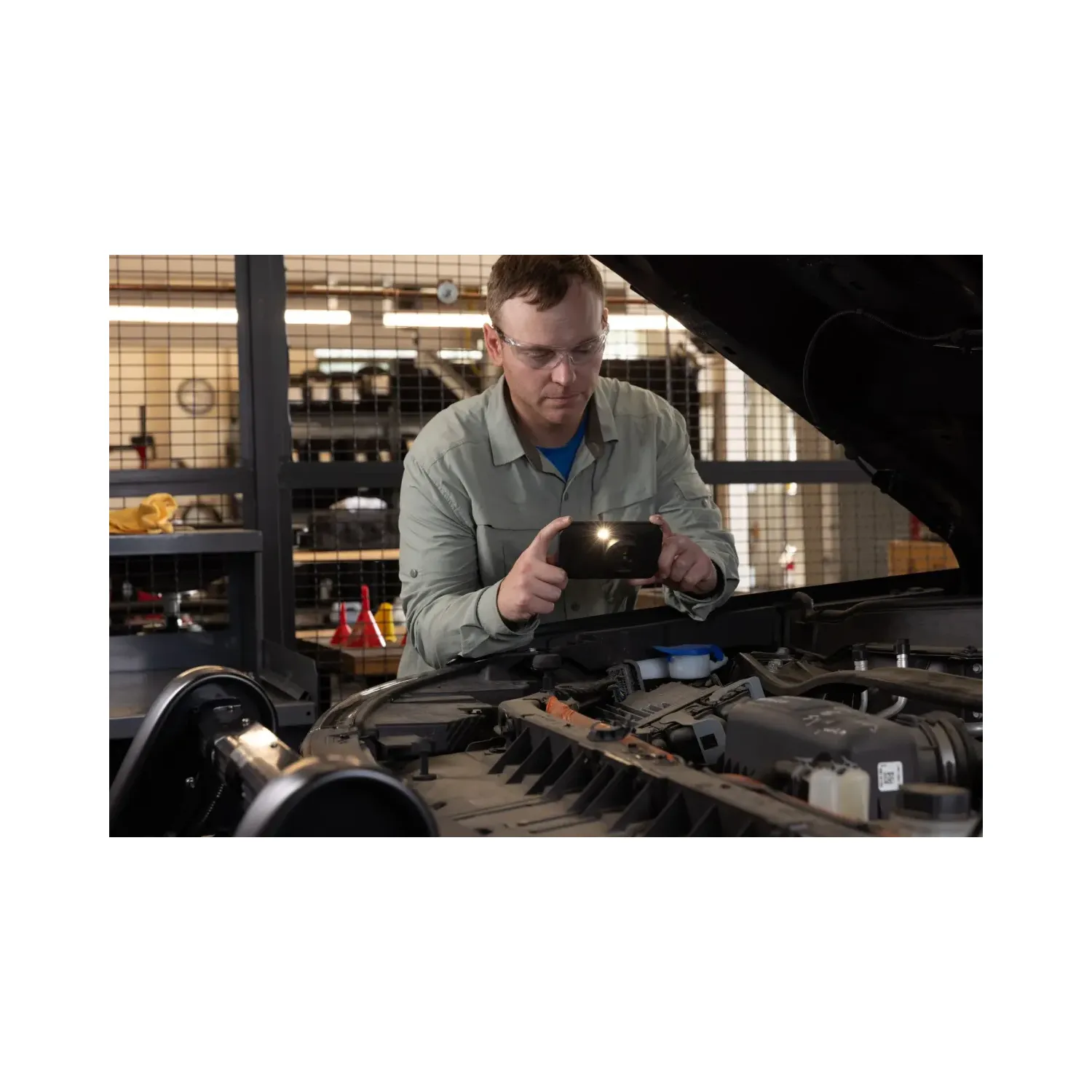

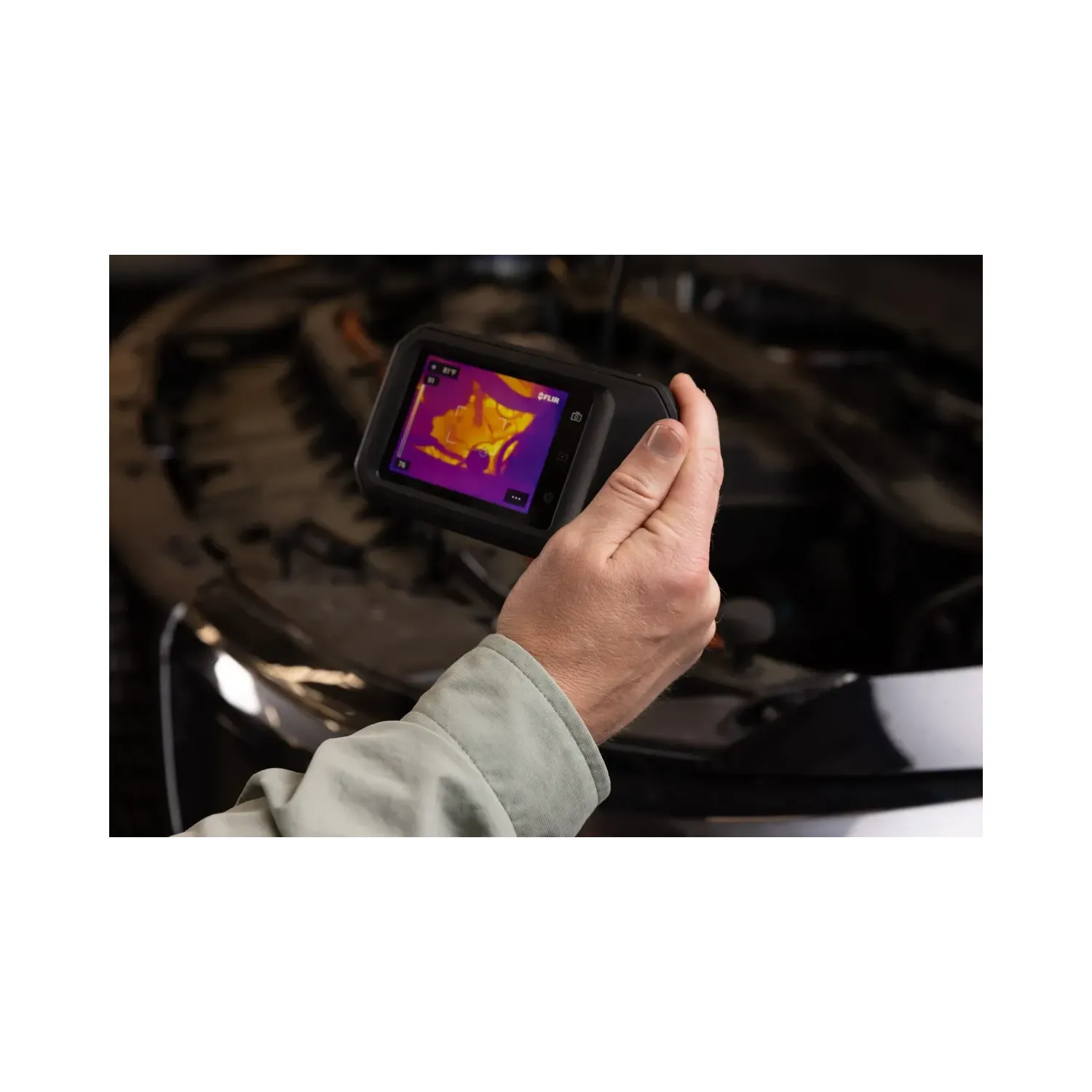

Flir C8 is a thermal imaging camera designed for electrical and mechanical maintenance, vehicle inspections, and other troubleshooting applications
Featuring 320 × 240 thermal resolution with MSX® detail enhancement, the C8 captures sharp thermal images for accurate diagnostics
Identify hidden problems with isotherm, which instantly detects if a temperature is exceeding a threshold
Built-in Flir Ignite™ cloud connectivity allows direct data transfer, storage, and backup, so images are always available on all your devices, as well as live streaming via USB
The 3.5 inch integrated touchscreen is simple to use, so you can quickly inspect, document repairs, and share evidence with customers

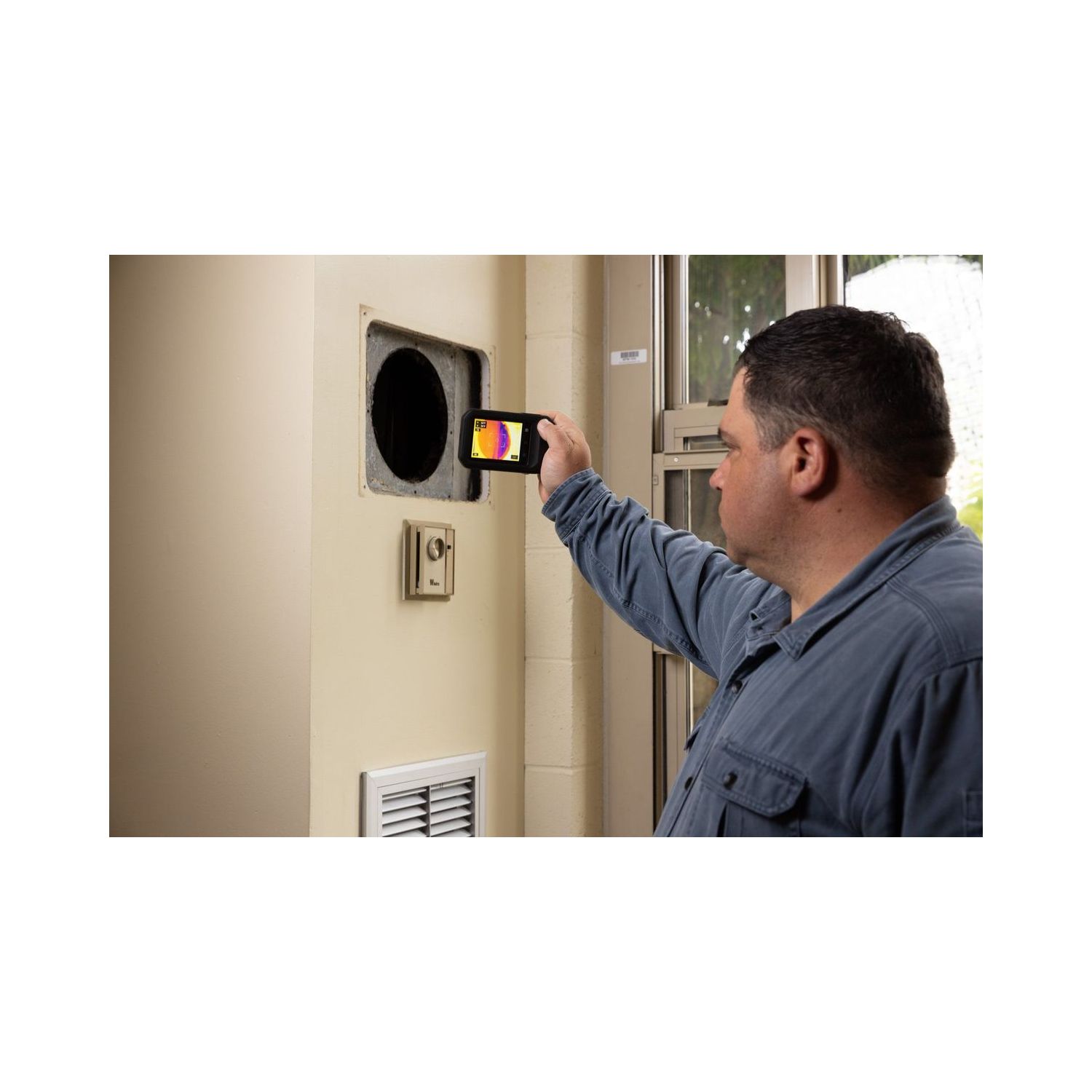

With the Flir C8 in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more

Technical Information

Field of view (FOV) 35° × 27°
Digital Camera 5 MP
Image Modes Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media Internal memory and onboard Flir Ignite cloud connectivity (with Wi-Fi)
Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Pitch 12 μm
Detector Type Focal plane array, uncooled microbolometer
Digital Camera 5 MP
Digital Zoom Yes, zoom pinch, up to 4× zoom
Field of view (FOV) 35° × 27°
f-number 1.4
Focus Fixed
Image Frequency 9 Hz
Minimum Focus Distance 0.4 m (1.3 ft)
Spectral Range 7.5 to 13 µm
Camera size (L x W x H) 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Object Temperature Range -20°C to 450°C (-4°F to 842°F)
Thermal Sensitivity <50 mK
Touchscreen Capacitive touch, 3.5 in
Battery operating time 3 hours
Battery type Rechargeable built-in Lithium Ion battery

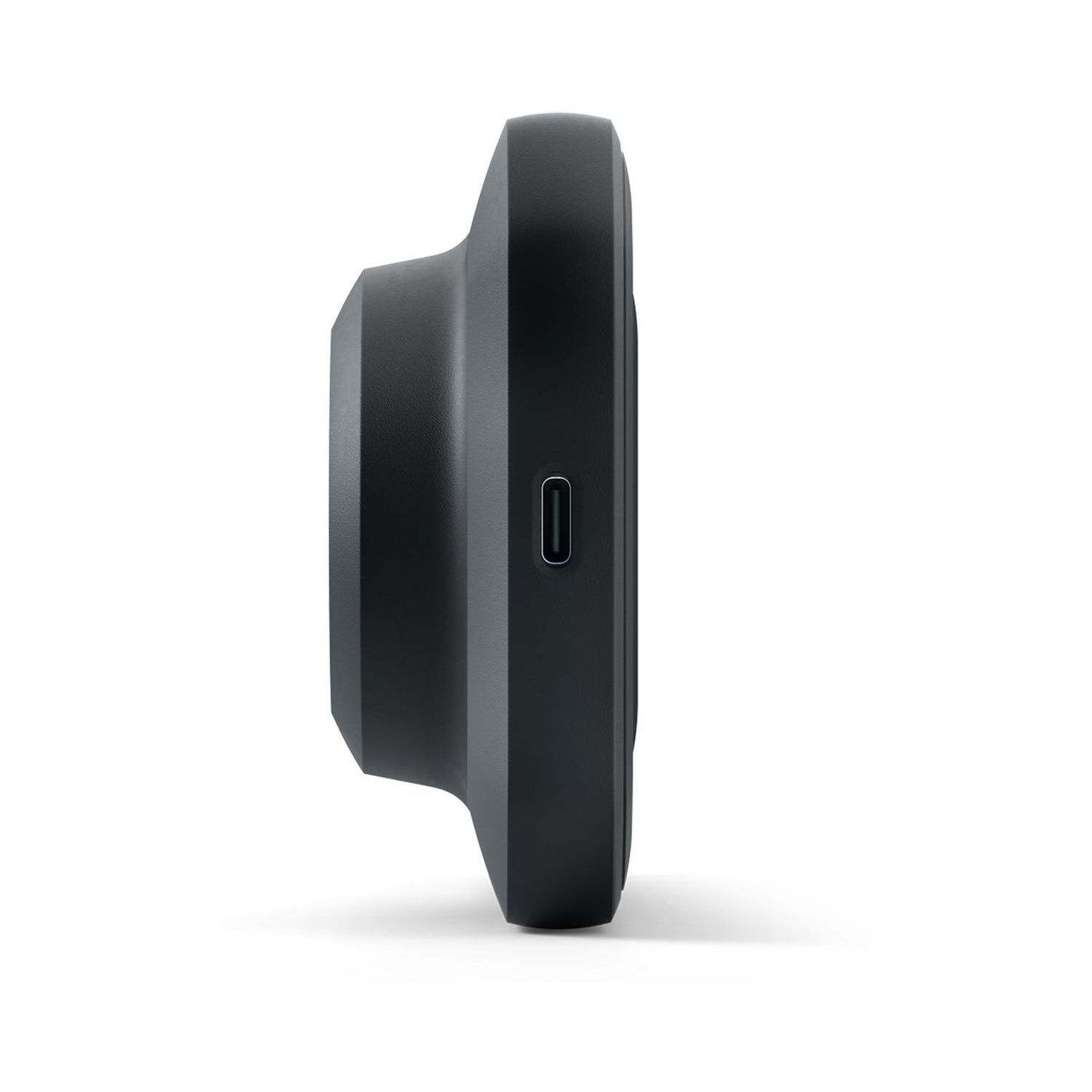

Charging system USB-C (1 A)
Charging Time 2 hours
External Power Operation 5 V, USB-C
Drop test 2 m (6.56 ft)
Encapsulation Camera housing and lens - IP54 (IEC 60529)
Operating Temperature Range -10°C to 50°C (14°F to 122°F)
Storage Temperature Range -40°Cto 70°C (-40°F to 158°F)
Tripod Mounting UNC ¼"-20 (built-in) Part No

Items Included

Flir C8
Printed documentation
Wrist strap lanyard
USB cable
Pouch
