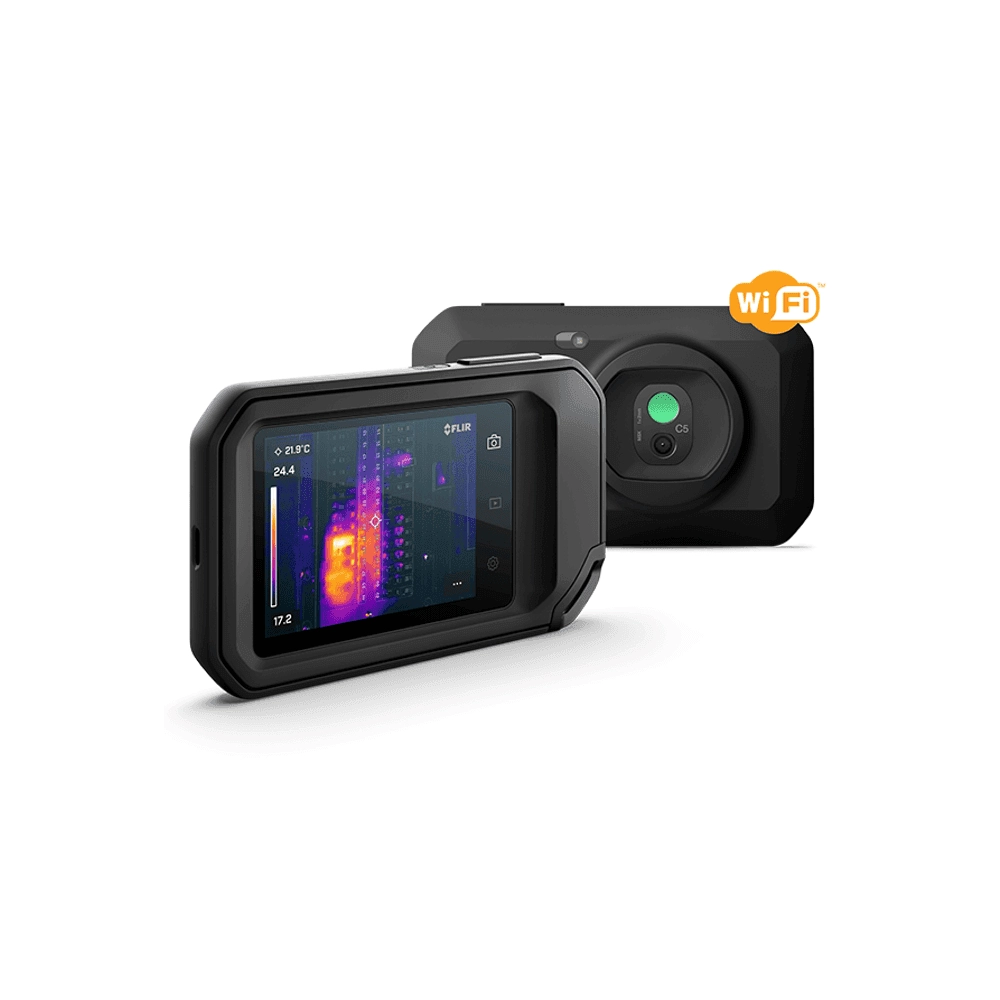

FLIR 89401-0202 C5 8.7 Hz Pocket Thermal Camera, 160 x 120p IR, -20 to 400°C

Model # 89401-0202

Find And Troubleshoot – Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
Document And Share – Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

Find And Troubleshoot – Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
Document And Share – Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Rugged, Reliable, Compact – Take the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop

Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F)- ±3°C (±5.5°F), 100 to 400°C (212 to 752°F)- ±3%
Digital Camera	5 MP
Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
FLIR Screen-EST Mode	No
Focus	Focus free
Gallery	Thumbnails and custom folder structure
Image Frequency	8.7 Hz
Minimum Focus Distance	Thermal- 0.1 m (3.94 in), MSX- 0.3 m (11.8 in)
Spectral Range	8 to 14 µm
Camera size (L x W x H)	138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction	Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range	-20 to 400°C (-4 to 752°F)
Thermal Sensitivity	<70 mK
Touchscreen	Capacitive touch
Battery operating time	4 hours
Battery type	Rechargeable built-in Lithium ion battery
Charging system	USB-C (1 A)
Charging Time	2 hours
External Power Operation	5 V, USB-C
Drop test	2 m (6.6 ft)
Encapsulation	Camera housing and lens- IP54 (IEC 60529)
Operating Temperature Range	-10 to 50°C (14 to 122°F)
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Tripod Mounting	UNC ¼”-20 (built-in)
