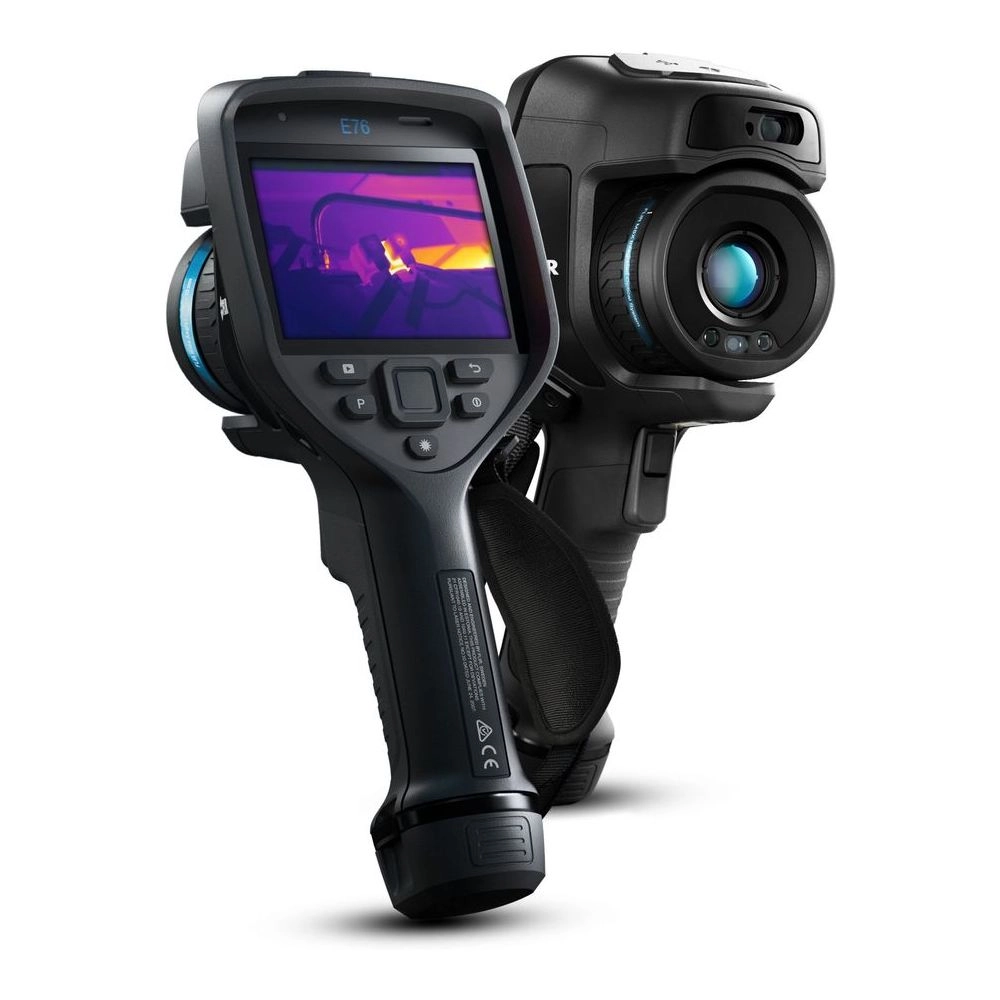

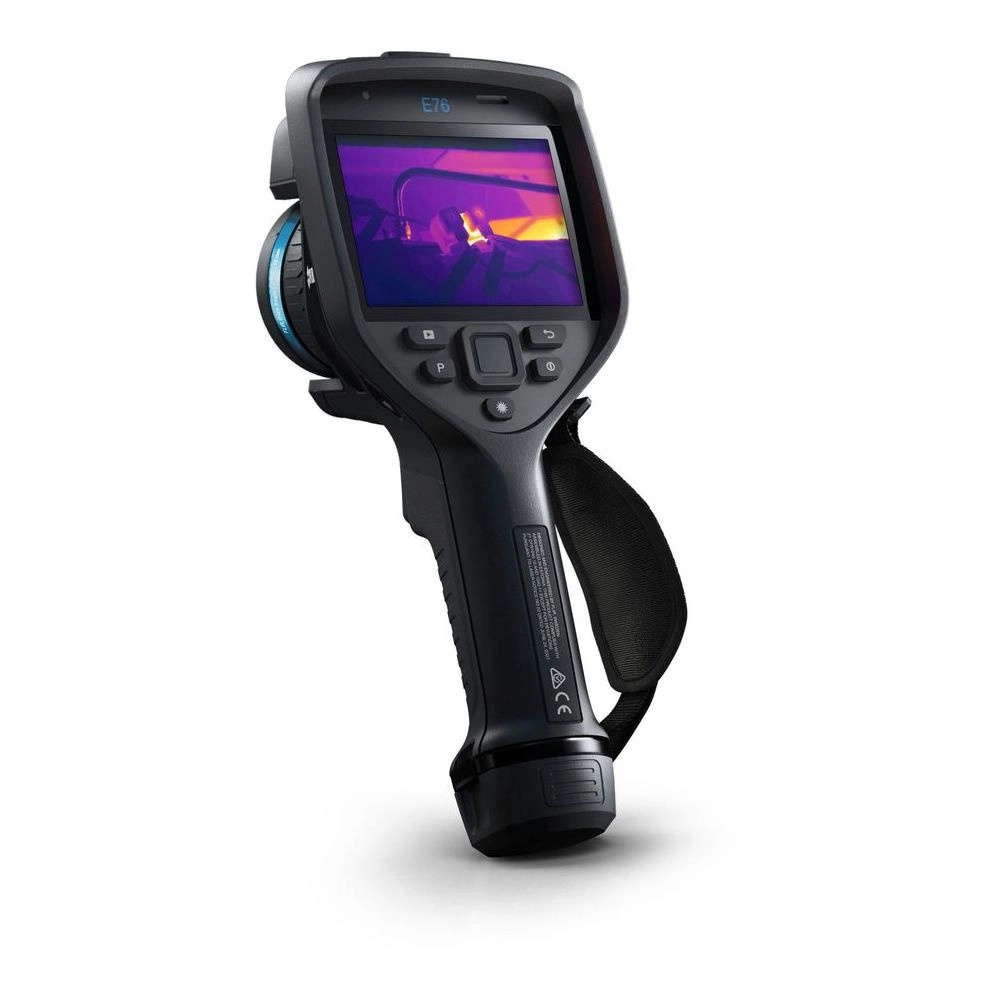

FLIR 78518-1101 E76 30 Hz Thermal Imaging Camera with 14°/24° Dual FOV Lens, 320 x 240p IR, -20 to 120°C / 0 to 650°C
# 78518-1101
- Interchangeable, Auto-Calibrating Lenses – Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
- Interchangeable, Auto-Calibrating Lenses – Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
- Improved Contrast For Faster Diagnosis – Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
- Includes laser-assisted autofocus and 3 area measurement boxes
- The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective.
- The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations.
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <40 mK, 24° at 30°C (86°F), <50 mK, 14° at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Zoom | 1-4x continuous |
| Field of View | 24° × 18°, 14° × 10° |
| f-number | 24°- 1.5, 14°- 1.5 |
| Focal Length | 24°- 17 mm (0.67 in), 14°- 29 mm (1.41 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| Lens Identification | Automatic |
| Minimum Focus Distance | 24°- 0.18 m (0.59 ft), 14°- 1.0 m (3.28 ft) |
| Minimum Focus Distance with MSX | 24°- 0.5 m (1.64 ft), 14°- 1.0 m (3.28 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution (IFOV) | 24°- 1.33 mrad/pixel, 14°- 0.75 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option |
| Spot Meter | 3 ea. in live mode |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery type | Rechargeable Li-ion battery |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
