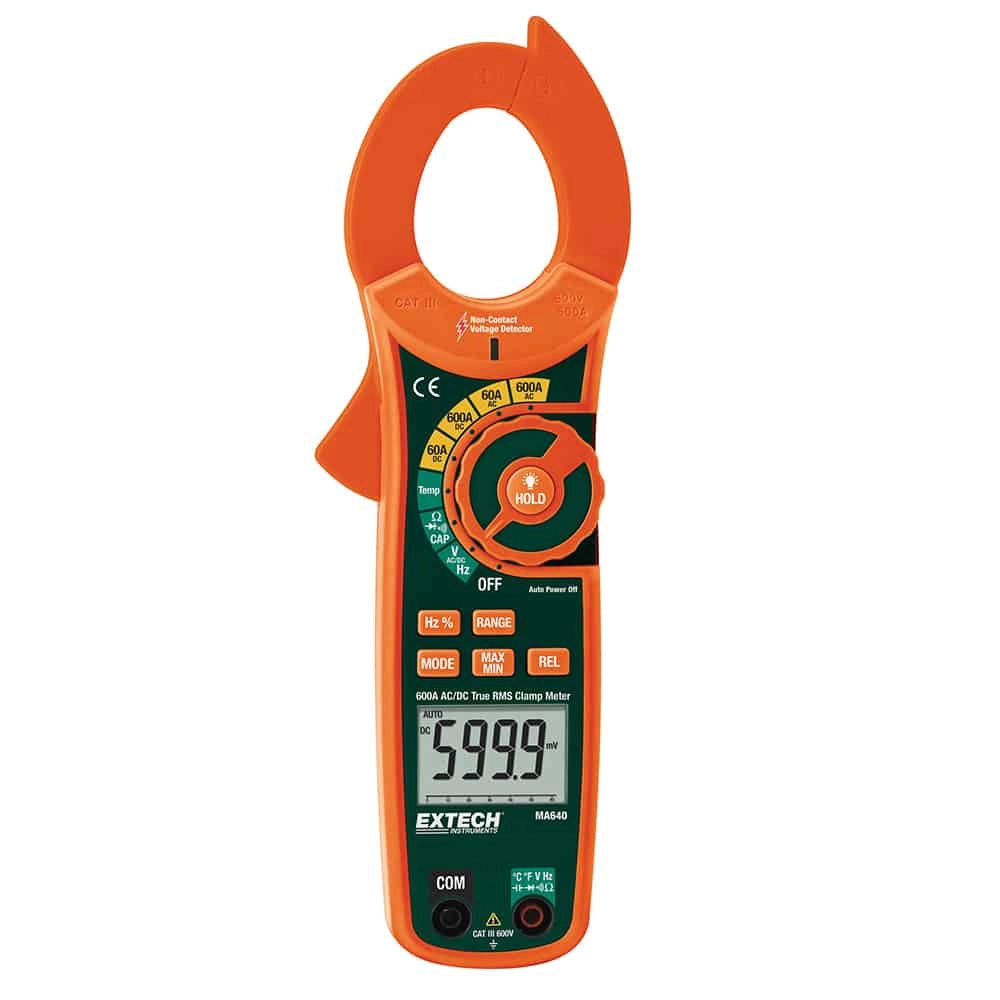

Extech MA640 True RMS AC/DC Clamp Meter + Non-Contact Voltage, 600A, 40mm Jaw, CAT III 600V
Model # MA640
Key Features
?
Question about this product?
Features
- AC/DC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
- Integrated Non-Contact Voltage Detector with LED alert
- 1.5” (40mm) jaw size for conductors up to 500MCM
- 6000 count, backlit LCD display
- Relative Mode for Capacitance Zero and Offset Adjustment
- Data Hold, MIN/MAX, and Auto Power Off
- Complete with test leads, general purpose Type K bead wire temperature probe, 9V battery and carrying case
Technical Information
- AC Current600.0A
- DC Current600.0A
- AC Voltage600.0V
- DC Voltage600.0V
- Resistance600.0Ω to 60.00MΩ
- Frequency10Hz to 10kHz
- Capacitance40.00nF to 4000μF
- Temperature4 to 1400°F (-20 to 760°C)
- Duty Cycle0.5 to 99.0%
- Jaw Size40mm
- Dimensions9.1x3x1.5in(232x77x39mm)
- Weight9.6oz (271g)
- Weight9.6oz (271g)
Items Included
- test leads
- general purpose Type K bead wire temperature probe
- 9V battery
- carrying case
