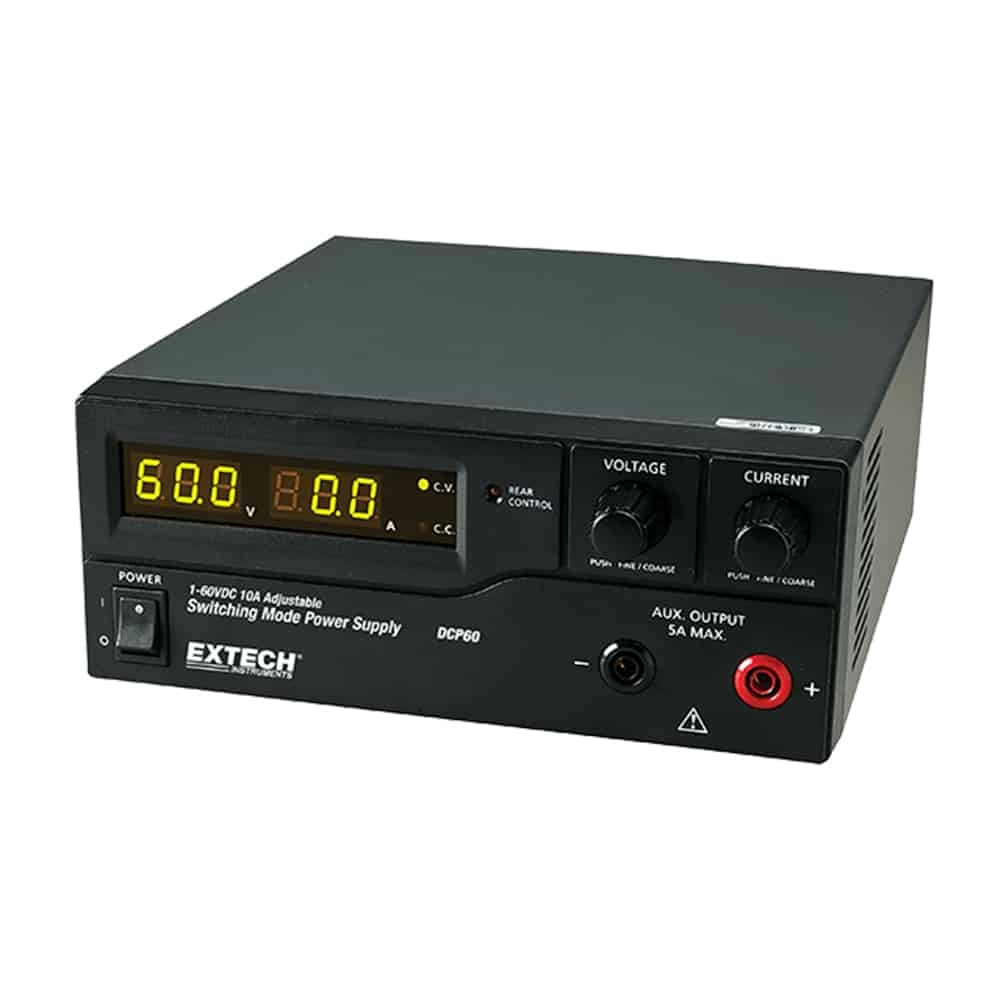

EXTECH DCP60-220 600W Switching Power Supply (220V)
# DCP60-220
- Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities
- 60V/10A output
- Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is on the back panel)
- Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities
- 60V/10A output
- Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is on the back panel)
- Three user-defined Voltage and Current presets
- Dual action rotary encoder control with push knob for fine and coarse tuning
- Remote control for Output VoltageCurrent and On/Off
- Complete with power cords
| Specifications | Range |
|---|---|
| Output Voltage | 1 to 60V |
| Output Current | 1 to 10A |
| Basic Accuracy | ±(0.2%+3 digits) |
| Load Voltage Regulation | 50mV |
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA |
| Line Current regulation | 50mA |
| Ripple and Noise | ≤5m Vrms, ≤100m Vp-p |
| Dimensions/ Weight | 7.9 x 3.5 x 8.5″ (200 x 90 x 215mm)/ 5.7lbs (2.6kgs) |
