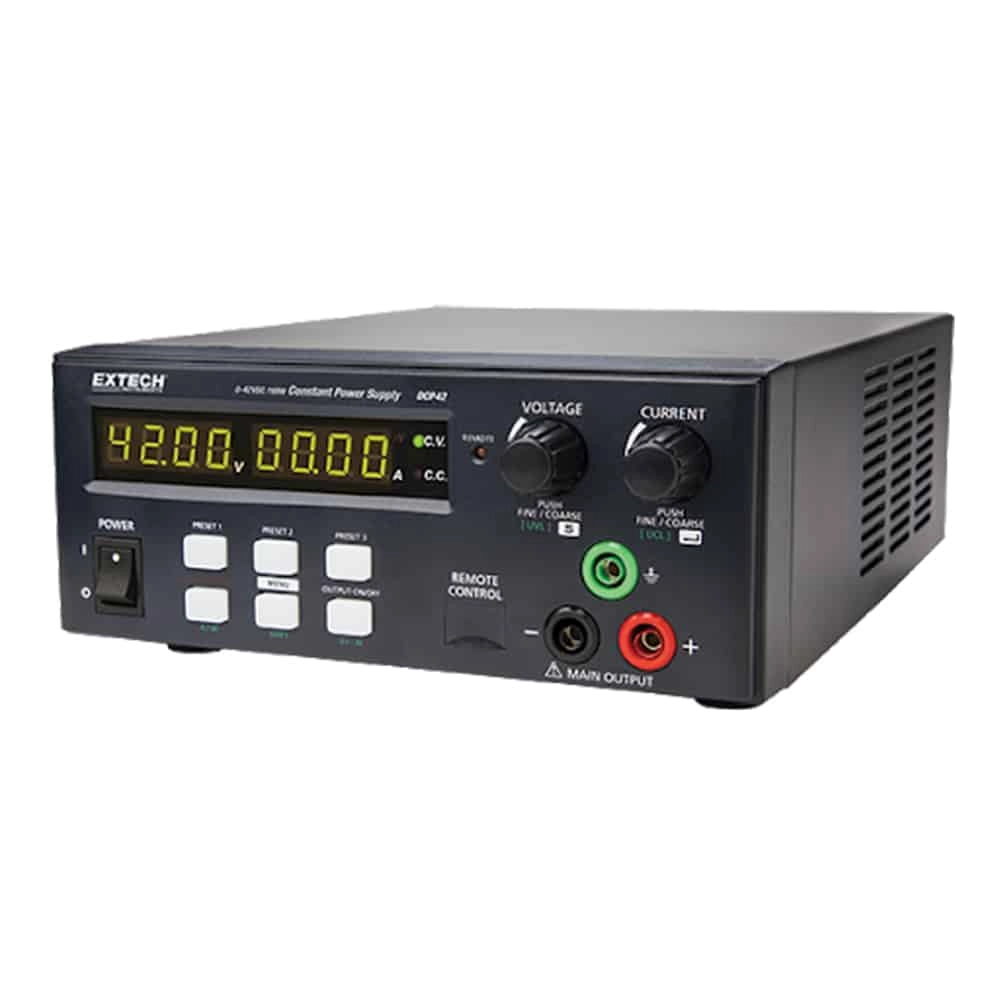

EXTECH DCP42 160W Switching Power Supply
# DCP42
This product has been discontinued by the manufacturer.
- At maximum current (10A), voltage is limited to 16V
- At maximum voltage (42V), current is limited to 3.8A
- Dual action rotary encoder control with push knob for fine and coarse tuning
- Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W)
- At maximum current (10A), voltage is limited to 16V
- At maximum voltage (42V), current is limited to 3.8A
- Dual action rotary encoder control with push knob for fine and coarse tuning
- Remote control for Programming, Output Voltage/Current, and ON/OFF using supplied software, driver, and USB
- Three on-board user-defined Voltage/Current presets
- Store 20 presets with up to 999 cycles each on a PC via USB and supplied Software
- Software also includes DC Ramp and Waveform Generator
- Complete with power cord, software, and USB cable
| Specifications | Ranges |
|---|---|
| Output Voltage | 0 to 42V |
| Output Current | 0 to 10A |
| Basic Accuracy | ±(0.2%+5 counts) |
| Load Voltage Regulation | ≤0.15% (10-100% rated current) |
| Line Voltage Regulation | ≤0.02% (90-264V AC) |
| Load Current Regulation | ≤0.5% (10-90% rated voltage) |
| Line Current regulation | ≤0.1% (90-264V AC) |
| Ripple and Noise | ≤5m Vrms, ≤50m Vp-p |
| Dimensions/ Weight | 7.9 x 3.7 x 9.5″ (200 x 95 x 245mm)/ 5lbs (2.3kg) |
