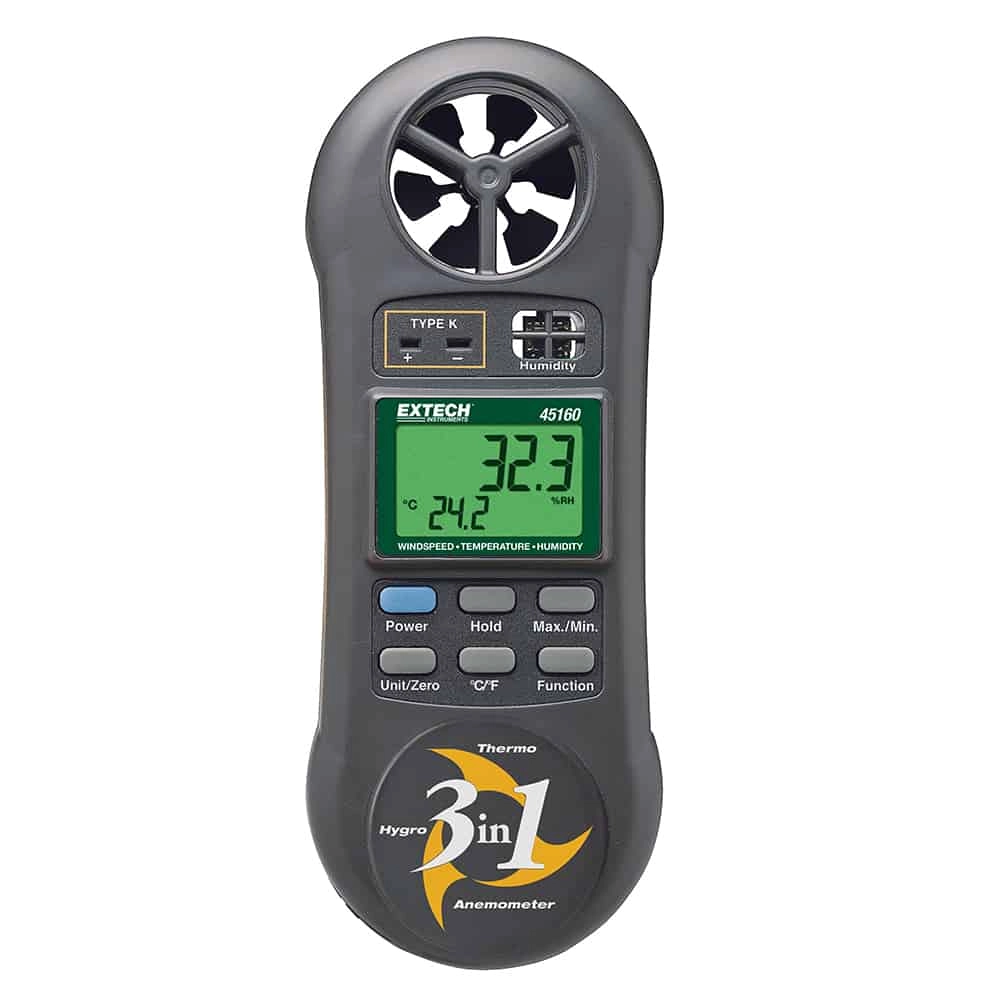

EXTECH 45160 3-in-1 Humidity; Temperature and Airflow meter

Model # 45160

3-in-1 meter measures Humidity, temperature and Air Velocity.
High Temperature measurements can be made using the Type K Thermocouple input.

BrandEXTECH
Model Number 45160
TypeType
WeightWeight

Quantity:

- +

ADD TO MY TOOLBOX

Where to buy this product?

Simultaneously displays Temperature and Air Velocity or Relative Humidity
Type K input socket for high temperature measurements to 2372°F (1300°C) using optional (TP870) Type K thermocouple
Min/Max, Data hold, Auto power off with disable feature
Built-in low friction vane wheel improves air velocity accuracy
Thin-film capacitance humidity sensor for fast response

Measurements	Range	Resolution	Basic Accuracy (Full Scale)
Air Velocity
ft/min (feet per minute)	80 to 5910 ft/min	10ft/min	±3%
m/s (meters per second)	0.4 to 30m/s	0.1m/s	±3%
km/h (kilometers per hour)	1.4 to 108km/h	0.1km/h	±3%
MPH (miles per hour)	0.9 to 67MPH	0.1MPH	±3%
knots (nautical miles per hour)	0.8 to 58.3 knots	0.1knots	±3%
Temperature (thermistor)	32 to 122°F	0.1°F	±2.5°F
Temperature (thermistor)	0 to 50°C	0.1°C	±1.2°C
% Relative Humidity	10 to 95%RH	0.1%RH	±4%RH of reading
Temperature (thermistor)	32 to 122°F	0.1°F	±2.5°F
Temperature (thermistor)	0 to 50°C	0.1°C	±1.2°C
Temperature (Type K)	-148°F to 2372°F	0.1°F	±(1%+2°F) of reading
Temperature (Type K)	-100°C to 1300°C	0.1°C	±(1%+1°C) of reading
Power	9V battery
Dimensions	Meter: 6.1 x 2.4 x 1.3″ (156 x 60 x 33mm); Vane: 1.2″ (31mm)
Weight	5oz (160g)

Built-in Humidity sensor and Vane wheel
Wrist strap
9V battery
