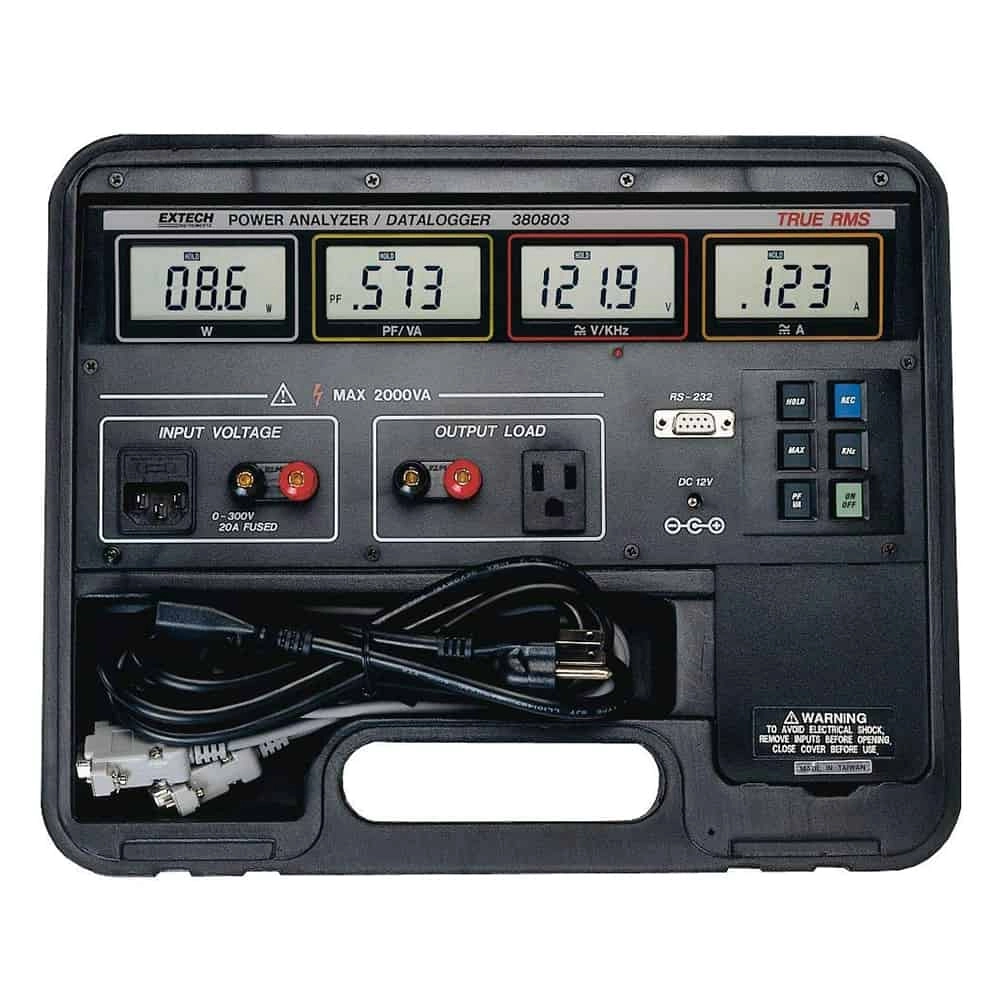

Extech 380803 True RMS Power Analyzer Datalogger, CAT IV 600V, 200/2000W
Model # 380803
Key Features
?
Question about this product?
Features
- Built-in Datalogger stores up to 1,012 readings (single record/continuous datalogging)
- Four simultaneous displays of Watts, Power Factor or VA, Voltage or Hz, Amps
- True RMS Voltage & Current measurements of sine, square, triangular and distorted wave forms with a crest factor < 5
- Plug device to be tested directly into the Power Analyzer
- Max, Data Hold and Overload Protection
- Battery or AC adaptor provides line isolation
- Sampling (update) rate is 2.5 times/second
- Software included to download and store data to a PC
Technical Information
- Frequency40Hz to 20kHz
- Power Factor0.5 to 1.0
- Watts200/2000W
- Voltage200.0/750V
- Current via terminals2/20A
- Current via sockets2/15A
- Weight4.85lb (2.2kg)
- Dimensions11 x 8.3 x 3.5in (280 x 210 x 90mm)
Items Included
- Windows compatiblesoftware
- cable
- 8 x AA batteries
- power cord
- 117 VAC adaptor
- case
