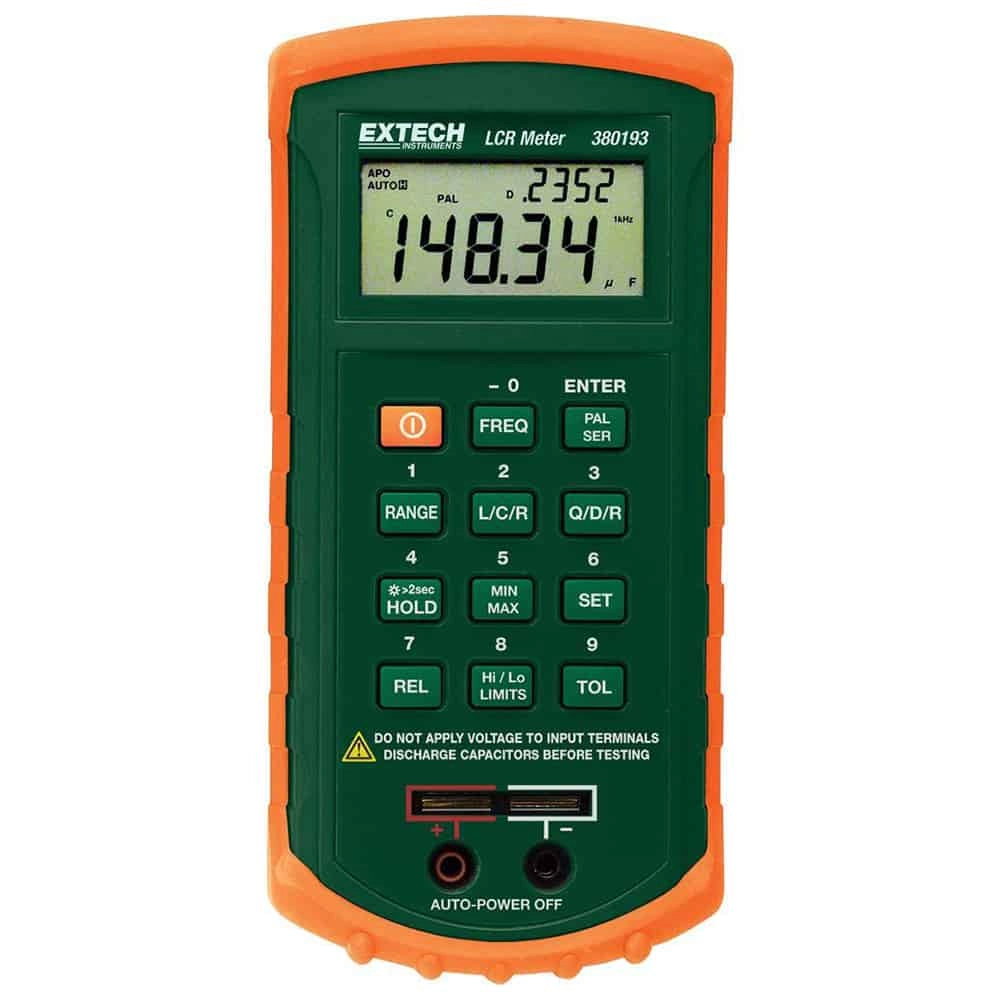

    EXTECH 380193 Passive Component LCR Meter

    # 380193

    • Dual display for greater clarity
    • Set high/low limits using absolute values of percentages
    • Automatic fuse blown indicator
    EXTECH
    • EXTECH
    • 380193

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
    • Secondary parameter of Q (quality), D (dissipation) or R (resistance)
    • Set Hi/Lo limits using absolute values or percentage limits
    • Parallel or Series equivalent circuit
    • Automatic blown fuse indication
    • Built-in test fixture or use external test leads
    Specifications Range Basic Accuracy
    Inductance 2000.0µH, 20.000mH, 200.00mH, 2000.0mH 20.000H, 200.00H, 2000.0H, 10000H ±(0.7%rdg)
    Capacitance 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2000.0µF ±(0.7%rdg)
    Resistance 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ ±(0.5%rdg)
    DF (with C) 0 to 0.9999 ±(0.7%rdg)
    Q 0 to 9999 ±(1.2%rdg)
    Test Freq. 120Hz and 1kHz
    Dimensions/Weight 7.56×3.58×2.1″ (19.2×9.1×5.25cm) / 12.87oz (365g)
    • 9V battery
    • Protective holster
    • Test leads
    • Alligator clips
