DJI Zenmuse P1 Full Frame Drone Camera Sensor, 45MP, f/2.8-f/16

Model # Zenmuse P1

Includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight
Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level

BrandDJI
Model NumberZenmuse P1

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

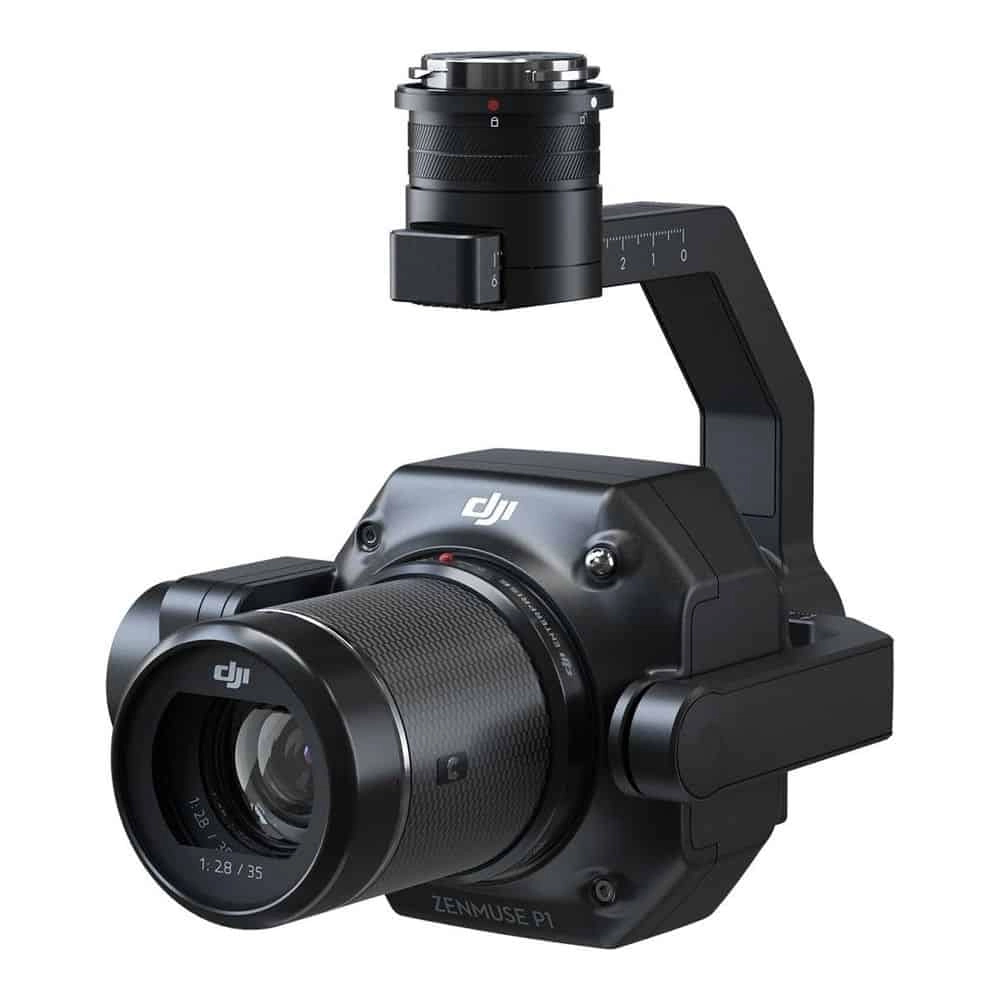

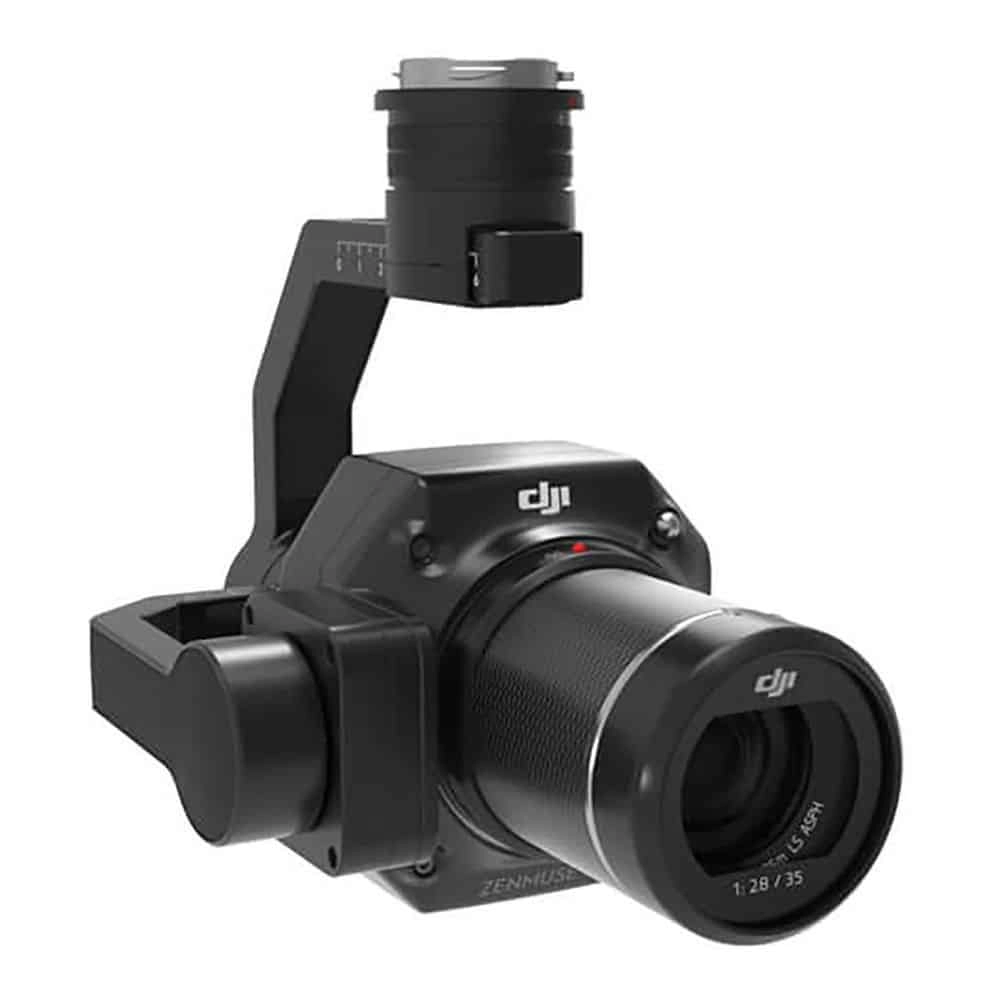

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

Includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight
Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level
Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature
Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed

Sensor size (Still)	35.9×24 mm
Sensor size (Max video recording area)	34×19 mm
Effective Pixels	45m
Pixel size	4.4 μm
Storage Files	Photo / GNSS Raw Observation Data/ Image Log File
Operation Modes	Photo, Video, Playback
Minimum photo interval	0.7 s
Mechanical Shutter Speed	1/2000-1 s (upto f/5.6)
Electronic Shutter Speed	1/8000-1 s
Aperture Range	f/2.8-f/16
Video Format	MP4,MOV
Frame Rate	60fps

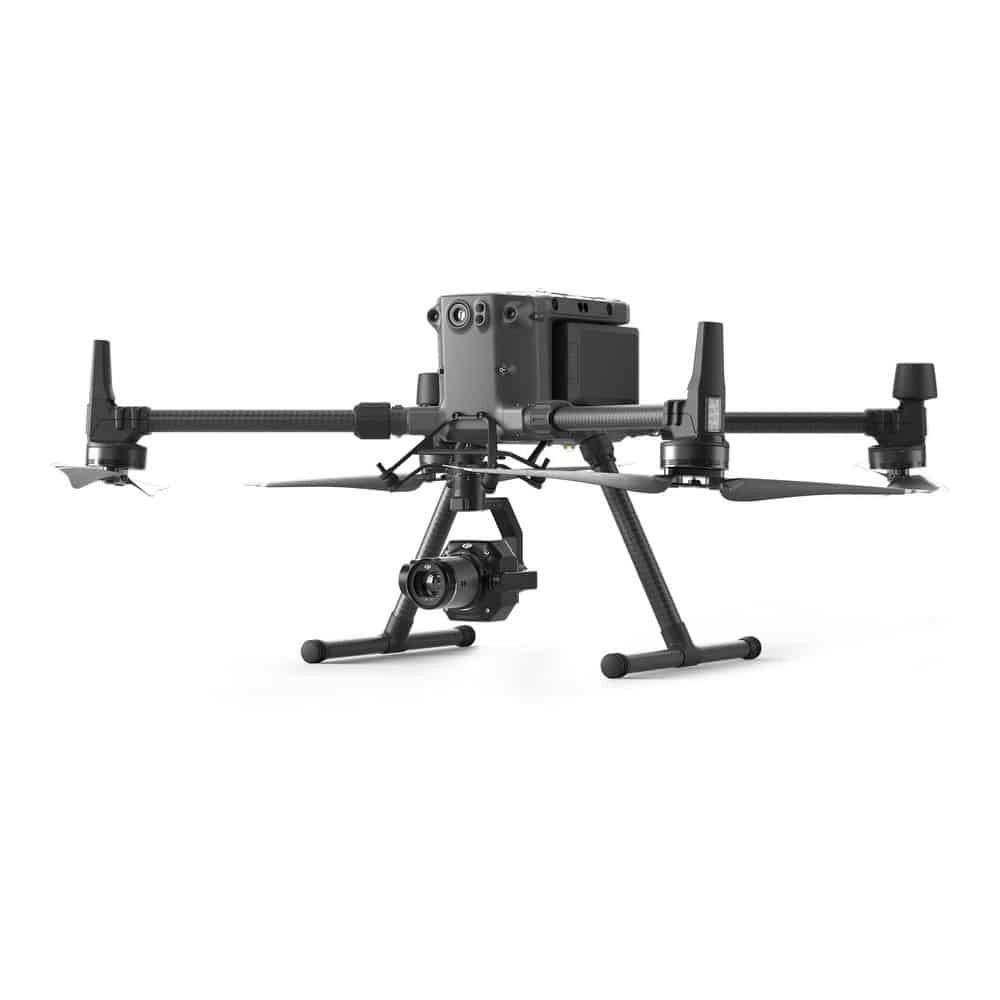

Supported Aircraft	Matrice 300 RTK
IP Rating	IP4X
Weight	Approx. 800 g
Power	20W
Dimensions	198×166×129 mm
Warranty	1 Year Warranty Against Manufacturing Defect Only
