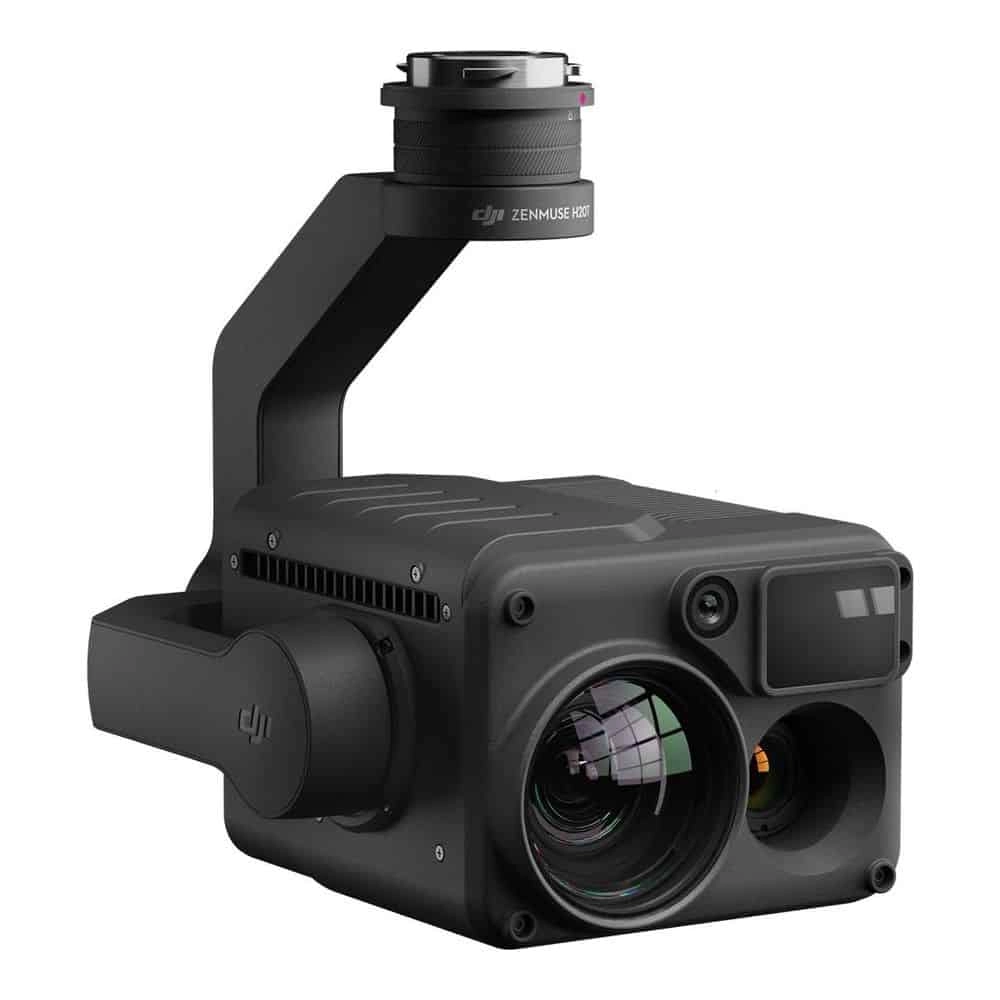

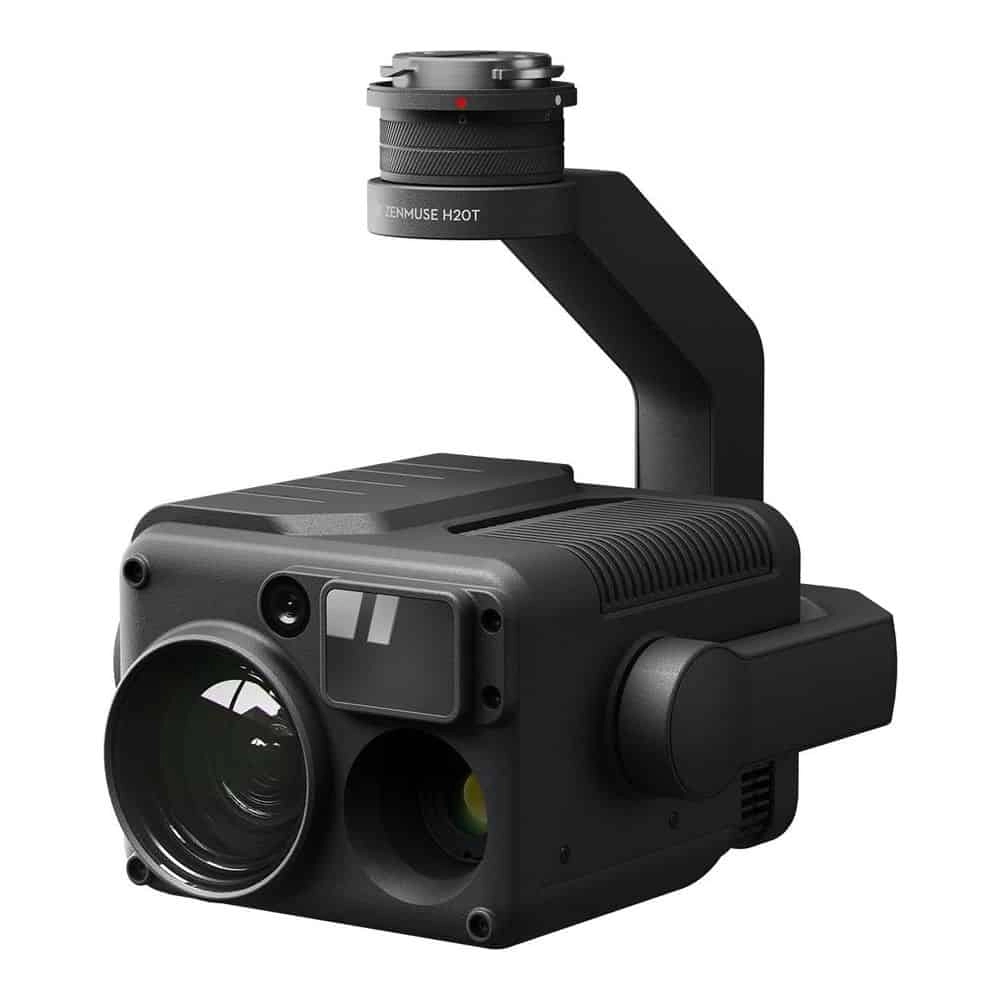

DJI Zenmuse H20T Quad Sensor Drone Payload, 20MP Zoom Camera, 12MP Wide Camera, 640×512 Thermal Camera

Model # Zenmuse H20T

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.
Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.
Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location
Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air
Tap a point to get a real-time reading of the surface temperature
Select an area to view the lowest, highest, and average temperatures

Zoom Camera Sensor	1/1.7″ CMOS, 20 MP
Zoom Camera Aperture	f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Zoom Camera Video	3840×[email protected], 1920×[email protected]
Wide Camera Sensor	1/2.3″ CMOS, 12 MP
Wide Camera Aperture	f/2.8
Wide Camera Video	1920×[email protected]
Laser Rangefinder Wavelength	905nm
Laser Rangefinder Range	3-1200m
Thermal Camera Type	Uncooled VOx Microbolometer
Thermal Camera Resolution	640×512
Thermal Camera Pixel Pitch	12 μm
Thermal Camera Aperture	f/1.0
Protection Rating	IP44
Supported Aircraft	Matrice 300 RTK
Dimensions	167×135×161 mm
Weight	828±5 g
Warranty	1 Year Warranty Against Manufacturing Defect Only
