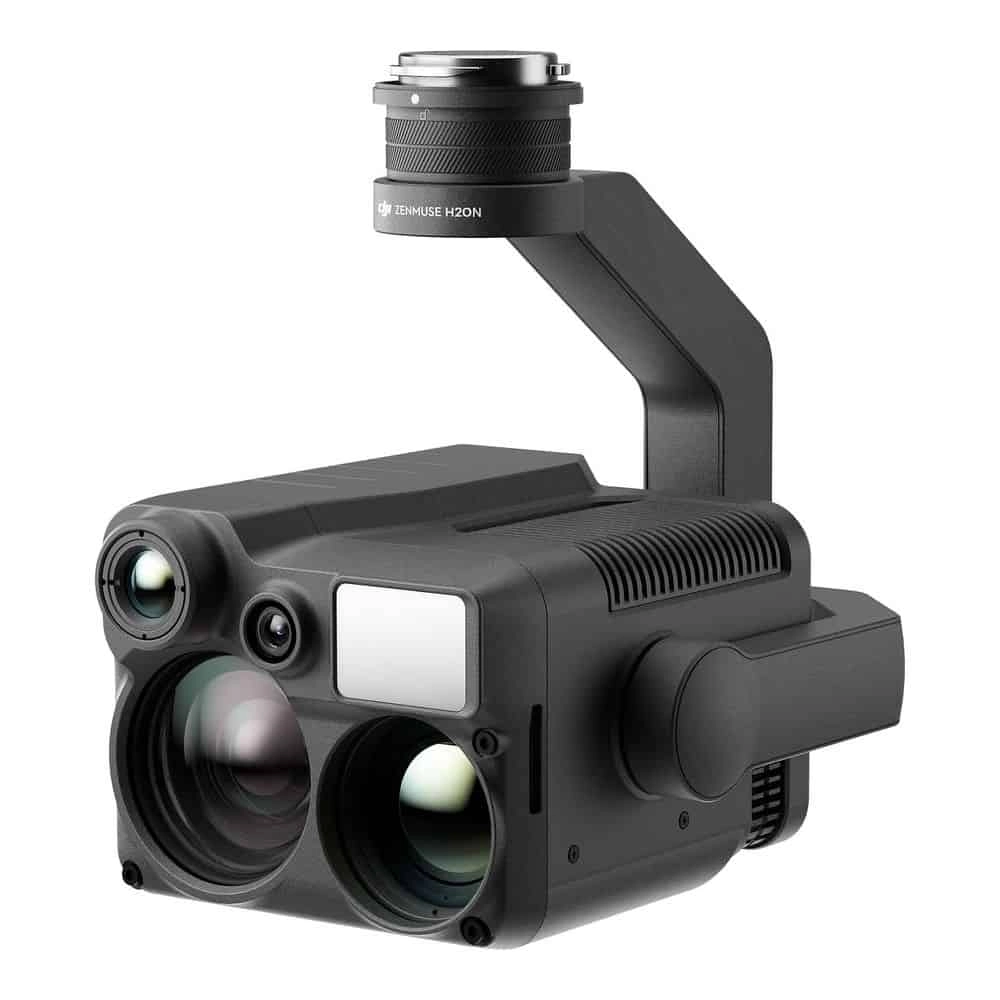

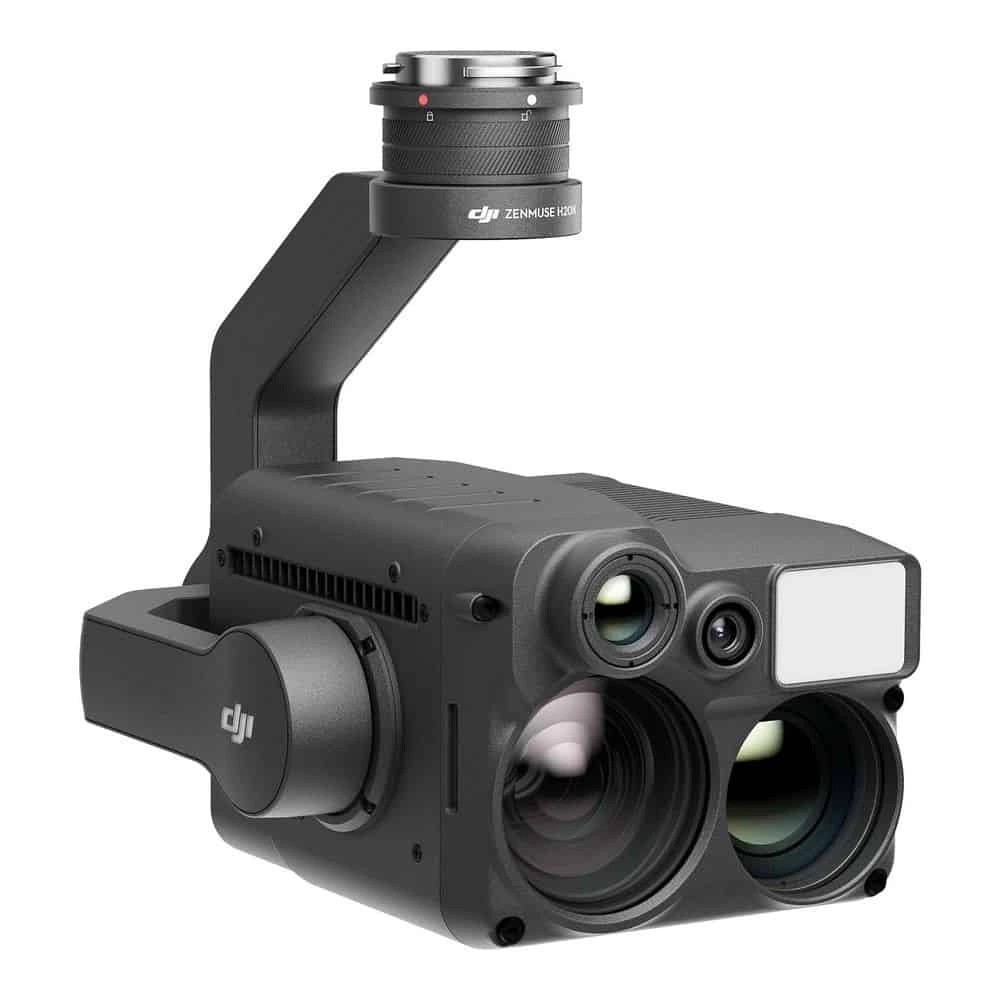

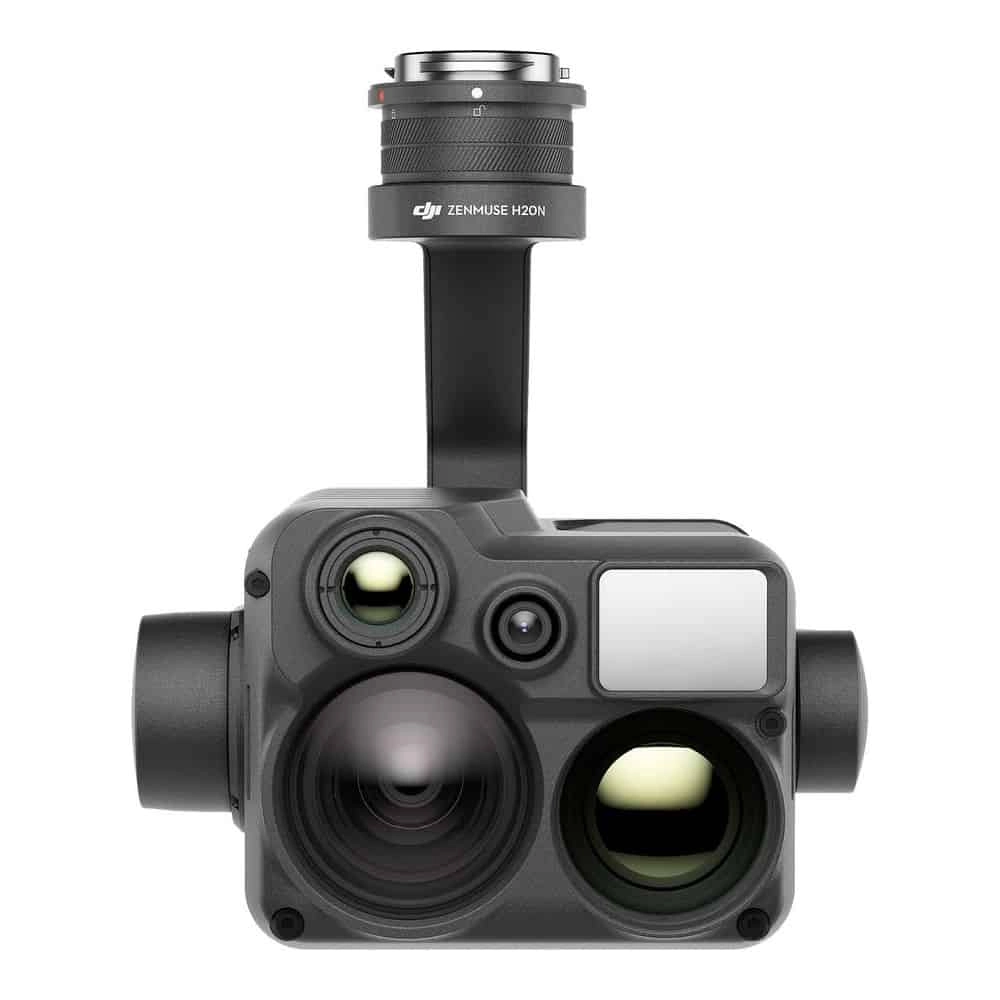

DJI Zenmuse H20N Quad Sensor Drone Payload, 2x and 8x Zoom Thermal Cameras, 2MP Wide and 4MP 20x Optical Zoom Night Vision Cameras

Model # Zenmuse H20N

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
Adjust gain modes to change the temperature range captured
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values

Zoom Camera Sensor	1/1.8″ CMOS, 4MP
Zoom Camera Aperture	f/1.6-f/11
Zoom Camera Video	2688×[email protected]
Wide Camera Sensor	1/2.7″ CMOS, 2MP
Wide Camera Aperture	f/2.8
Wide Camera Video	1920×[email protected]
Thermal Cameras Type	Uncooled VOx Microbolometer
Thermal Cameras Resolution	640×512
Thermal Cameras Pixel Pitch	12 μm
Thermal Telephoto Aperture	f/1.2
Thermal Telephoto Zoom	16x, 32x (Digital Zoom Equivalent)
Thermal Wide Aperture	f/1.0
Thermal Wide Zoom	4x (Digital Zoom Equivalent)
Protection Rating	IP44

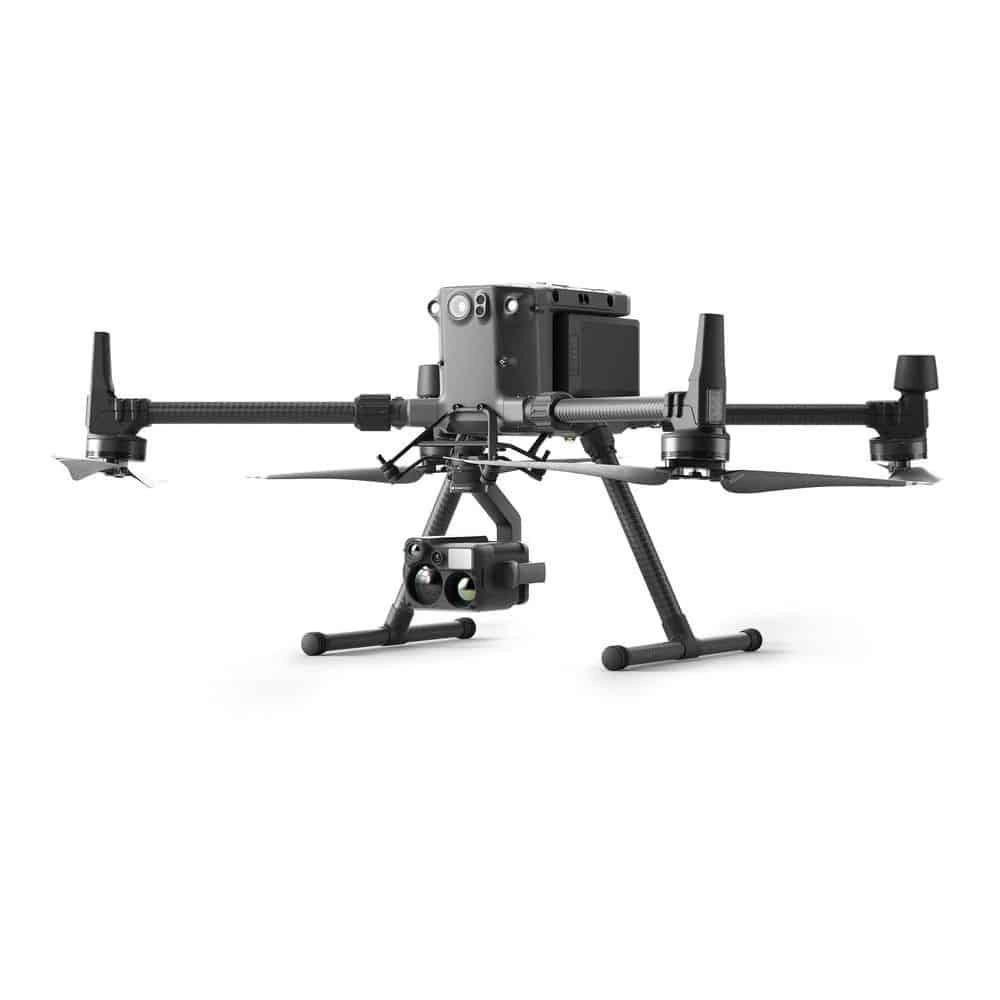

Supported Aircraft	Matrice 300 RTK
Dimensions	178x135x161 mm
Weight	878±5 g
Warranty	1 Year Warranty Against Manufacturing Defect Only
