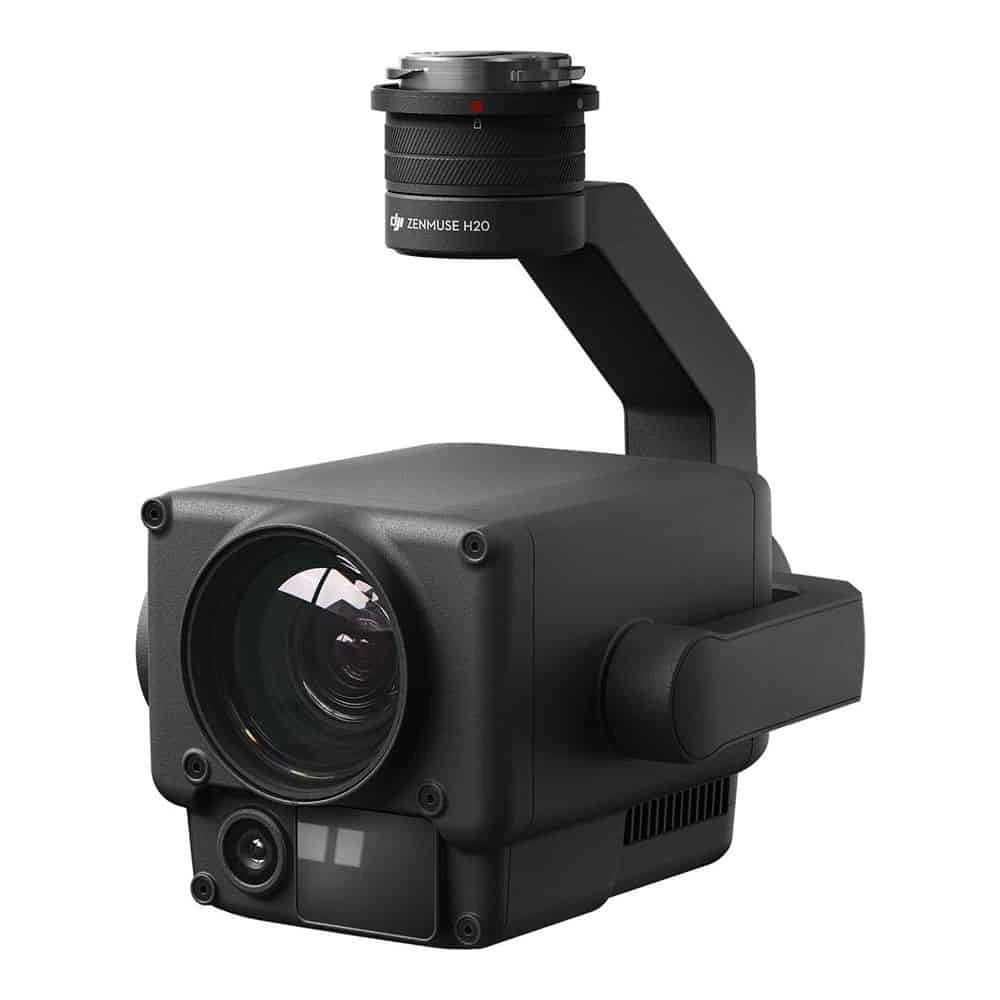

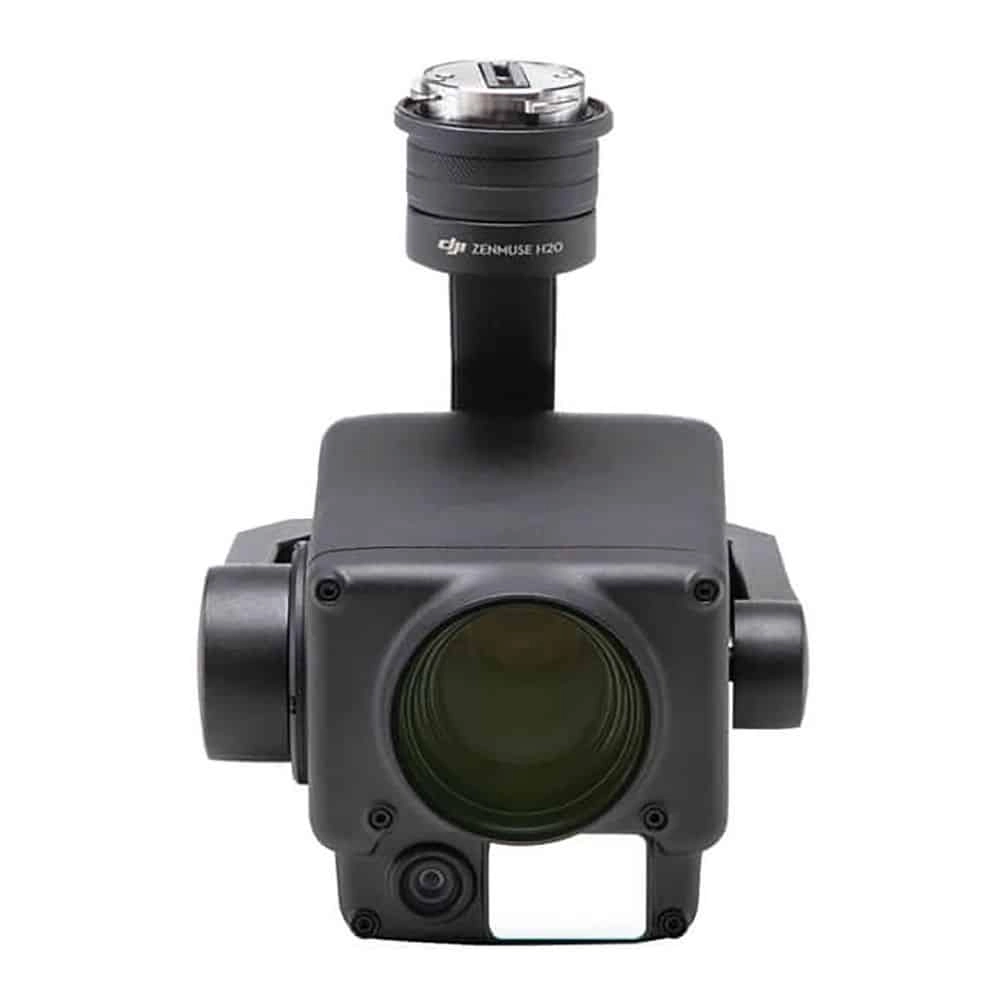

DJI Zenmuse H20 Triple Sensor Payload, 20MP Zoom Camera, 12MP Wide Camera and Laser Rangefinder

Model # Zenmuse H20

A new integrated user interface lets you quickly switch between wide and zoom camera views, and preview the zoom FOV while in wide view.
Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

A new integrated user interface lets you quickly switch between wide and zoom camera views, and preview the zoom FOV while in wide view.
Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location

Zoom Camera Sensor	1/1.7″ CMOS, 20 MP
Zoom Camera Aperture	f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Zoom Camera Video	3840×[email protected], 1920×[email protected]
Wide Camera Sensor	1/2.3″ CMOS, 12 MP
Wide Camera Aperture	f/2.8
Wide Camera Video	1920×[email protected]
Laser Rangefinder Wavelength	905nm
Laser Rangefinder Range	3-1200m
Protection Rating	IP44
Supported Aircraft	Matrice 300 RTK
Dimensions	150×114×151 mm
Weight	678±5 g
Warranty	1 Year Warranty Against Manufacturing Defect Only
