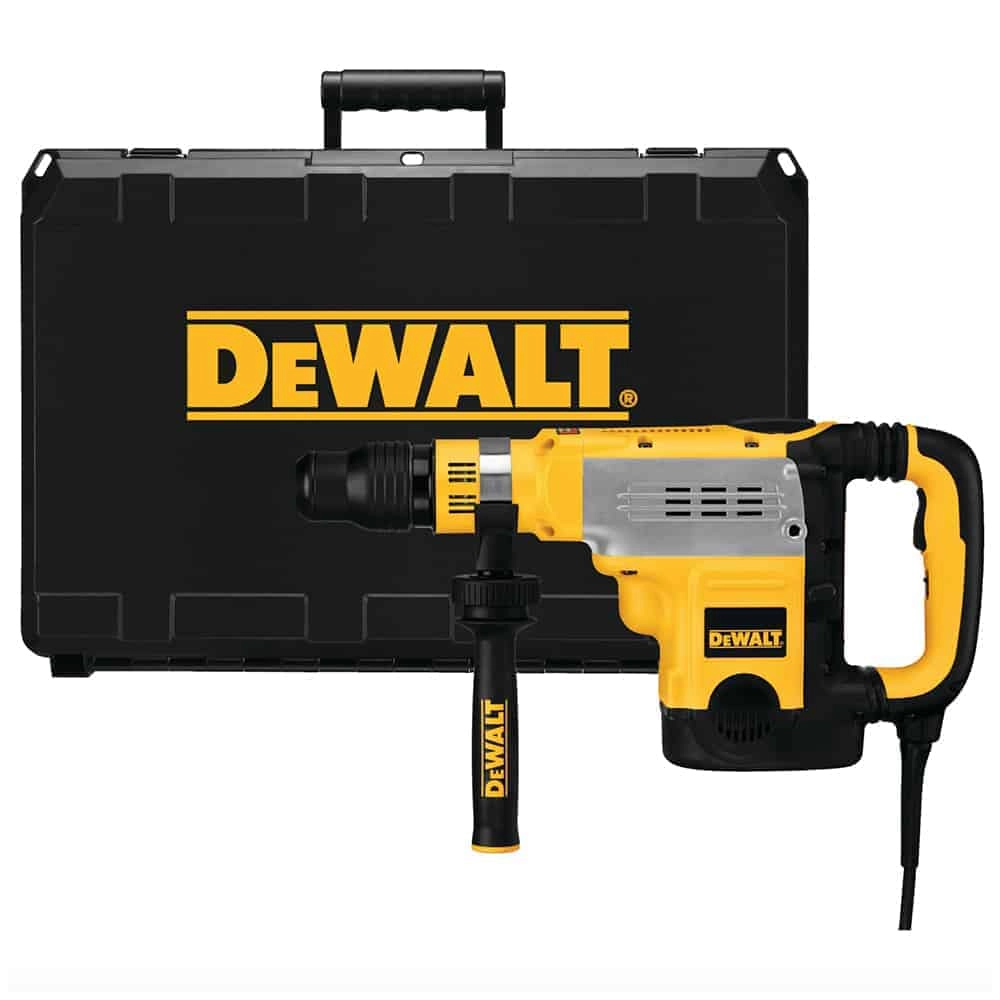

Dewalt D25723K-B5 220V SDS Max Combination Hammer With UTC; 48mm;
Model # D25723K-B5
Key Features
?
Question about this product?
Features
- Ideal for drilling anchor fixing and through holes in concrete and masonry from 12 to 40 mm in diameter. Core drilling up to 90 mm
- Chain drive improves durability and increases efficiency together with an oil-filled gearbox to ensure total component lubrication and superior heat dissipation
- Ergonomic; compact and slimline design maximizes control and offers easy access to confined spaces
- Excellent power to weight ratio: 8 Joules of impact energy delivered by a 6.1 kg hammer
- Rotation-stop for medium-light demolition applications
- Unique dust sealing protection to prevent even the finest dust ingress into the hammer mechanism delivering high durability and extended tool life
- Hammer mechanism is optimized by reducing the number of components and by improving dampening to deliver maximum impact energy and therefore the efficiency to drill into the hardest concrete
- Efficient mechanism delivers impact blows directly to the bit without losses through excessive vibration and rebound dampening reduces stress to the tool
Technical Information
- Tool Holder SDS-Max
- Power Input 1100 Watts
- Power Output 500 Watt
- Impact energy (EPTA 05/2009) 8 J
- Load Speed 400 rpm
- Blows per Minute 2740 bpm
- Max. Drilling Capacity [Concrete] 40 mm
- Max. Drilling Capacity [Breakthrough bit] 55 mm
- Max. Drilling Capacity [Core bit] 90 mm
- Weight 6.1 kg
- Length 457 mm
- Height 245 mm
- Width 104 mm
- Hand/Arm Vibration – Hammer drilling into concrete 18.3 m/s²
- Uncertainty K 1 (Vibration) 1.8 m/s²
- Hand/Arm Vibration – Chiselling 13.2 m/s²
- Uncertainty K 2 (Vibration) 1.6 m/s²
- Sound Pressure 94 dB(A)
- Sound Pressure Uncertainty 3 dB(A)
- Sound Power 104 dB(A)
- Sound Power Uncertainty 3 dB(A)
Items Included
- Side Handle Carry Case
