Bosch PTW1600A039YN GAL 18V-40 with GBA 18V 5.0Ah

Features

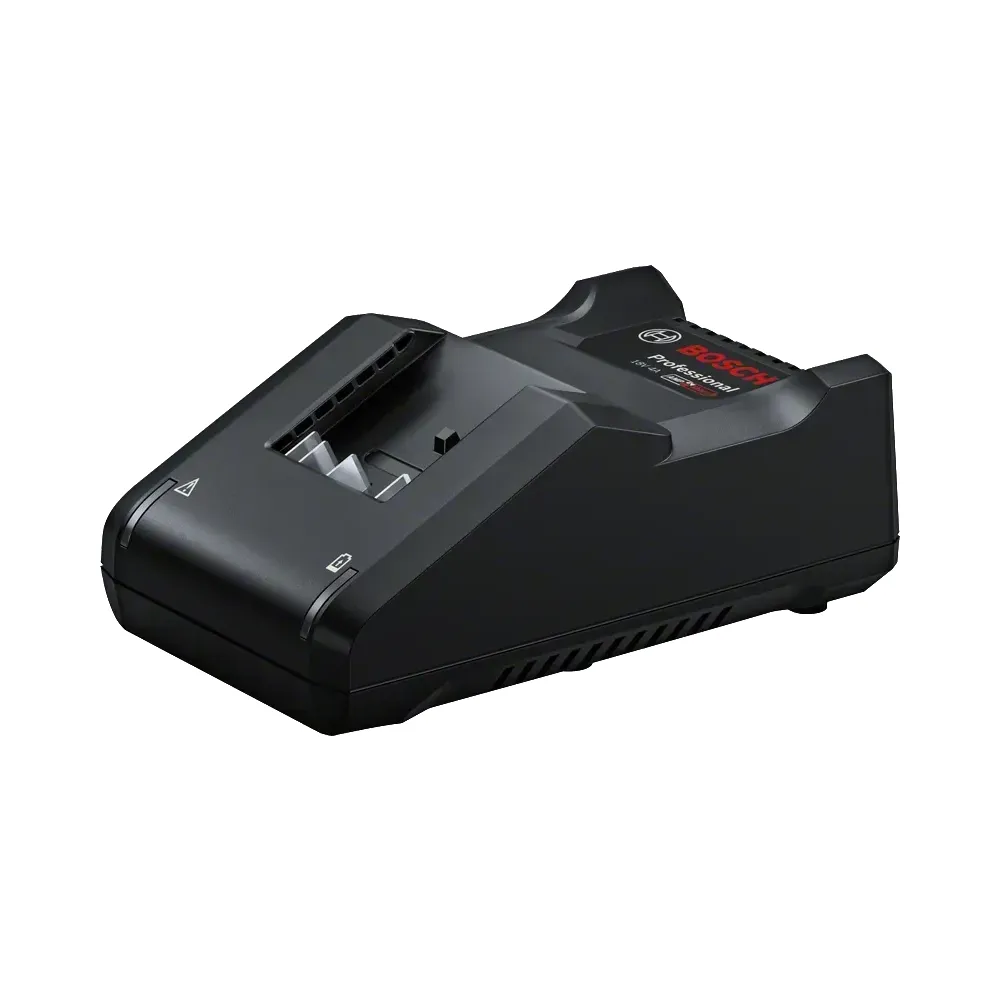

• Compact Charger: Due to its modern design it is very compact
• Charger Compatibility: Charger is compatible with all batteries of the Bosch Professional 18V System and the AMPShare Alliance
• Fast Charging: With 4 A charging current it charges the GBA 18V 4.0 Ah battery up to 80% in only 48 minutes, GBA 18V 2.0 Ah up to 80% in 24 minutes
• Battery Pack Life: COOLPACK 1.0 improves heat dissipation from the inside to the outside of the battery for longer lifetime and runtime

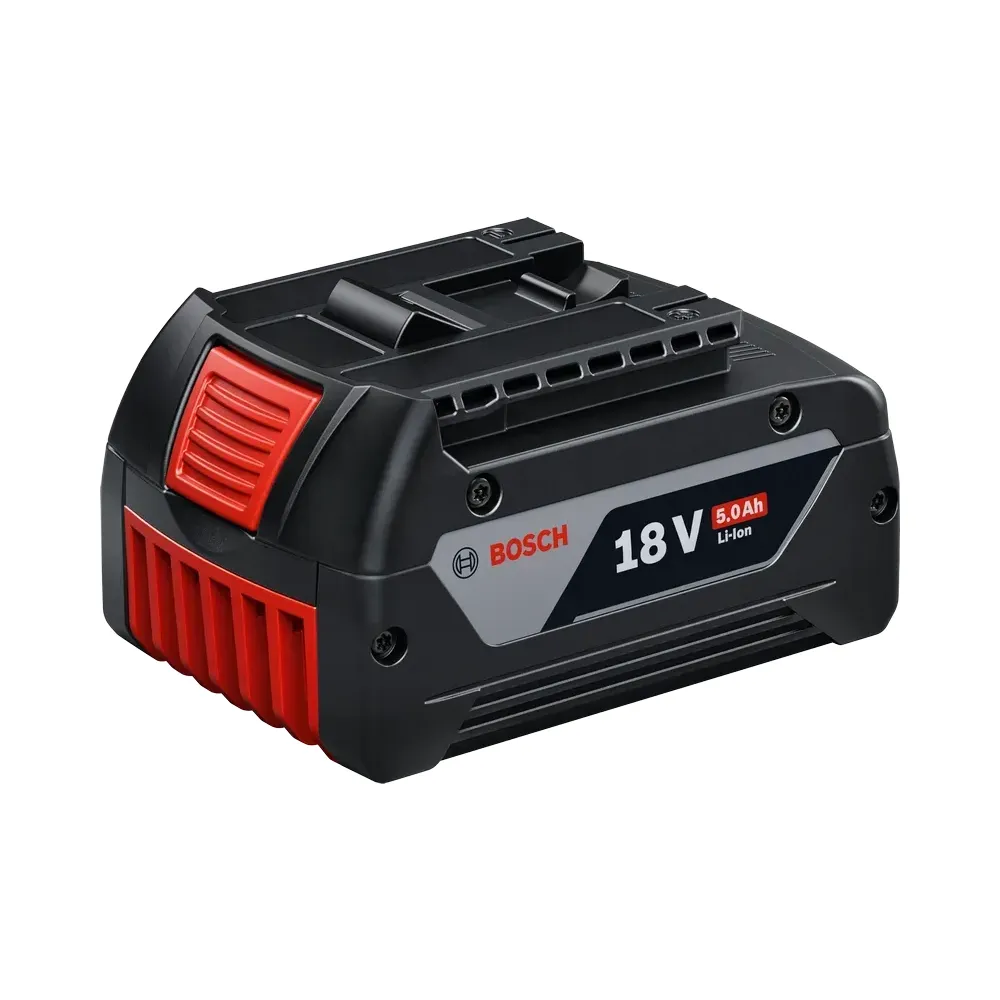

• Battery Compatibility: Battery is compatible with all tools and chargers of the Bosch Professional 18V System and the AMPShare Alliance
• Battery Runtime Efficiency: Higher battery capacity enables 25% more runtime than the 18V 4.0 Ah Professional model

Technical Information

• Battery voltage 18.0 V
• Battery Weight 0.62 kg
• Battery capacity 5 Ah
• Battery dimensions (wxlxh) 74 x 114 x 56 mm
• Battery charging voltage 14=4 – 18 V
• Charge current 4 A
• Charger weight 0.55 kg
• Charg. time at bat. cap. 2.0 Ah (80%/100%) approx 24/35 min
• Charg. time at bat. cap. 3.0 Ah (80%/100%) approx 36/50 min
• Charg. time at bat. cap. 4.0 Ah (80%/100%) approx 48/65 min
• Charg. time at bat. cap. 5.0 Ah (80%/100%) approx 60/70 min
• Charg. time at bat. cap. 6.0 Ah (80%/100%) approx 72/95 min
• Charg. time ProCORE18V 4.0 Ah (80%/100%) approx 48/65 min
• Charg. time ProCORE18V 8.0 Ah (80%/100%) approx 113/124 min
• Charg. time ProCORE18V 12.0 Ah (80%/100%) approx 162/172 min

Items Included

• NA
