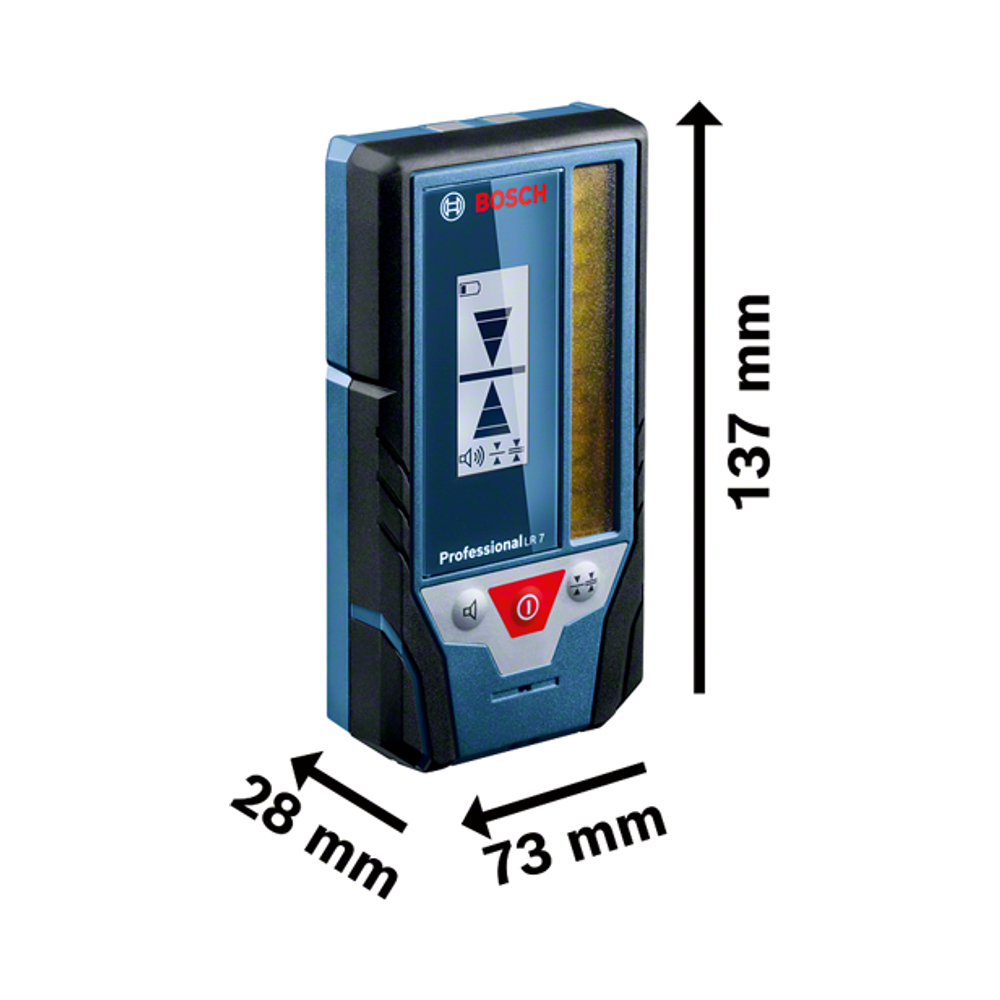

Bosch LR 7 Professional Laser Receiver

Model #   LR 7

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Technical Information

  • Dust and splash protection IP 54
  • Range of 5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used) m
  • Power supply 2 x 1.5 V LR6 (AA)
  • Weight, approx. 0.15 kg
  • Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
  • Type of receiver Combi- and line lasers

Items Included

  • Protective Bag
  • Bracket for laser receiver LR 6/7
  • 2 x 1.5 V LR6 battery (AA)
