Bosch GTC 400 C 12V Professional Thermo Camera, 160x120, -10 °C to +400 °C
Model # GTC 400 CKey Features
?
Question about this product?
Features

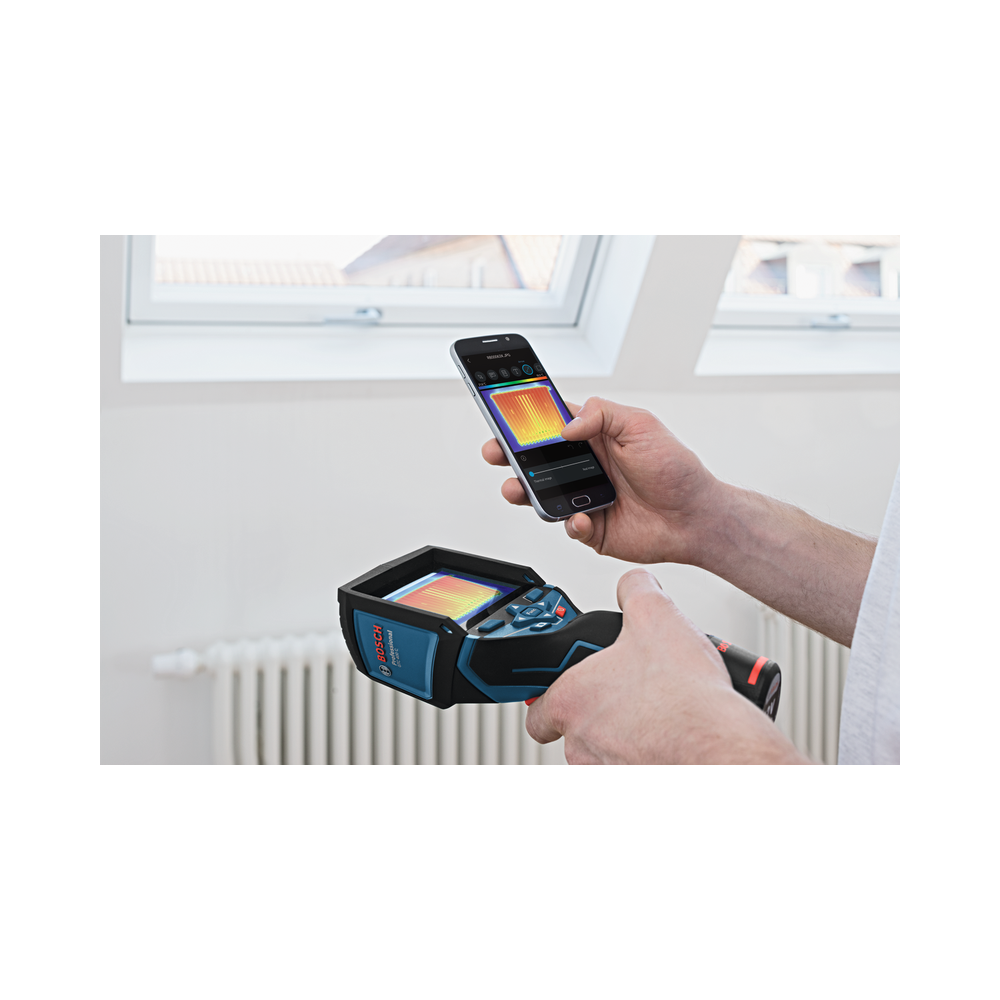

- Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app

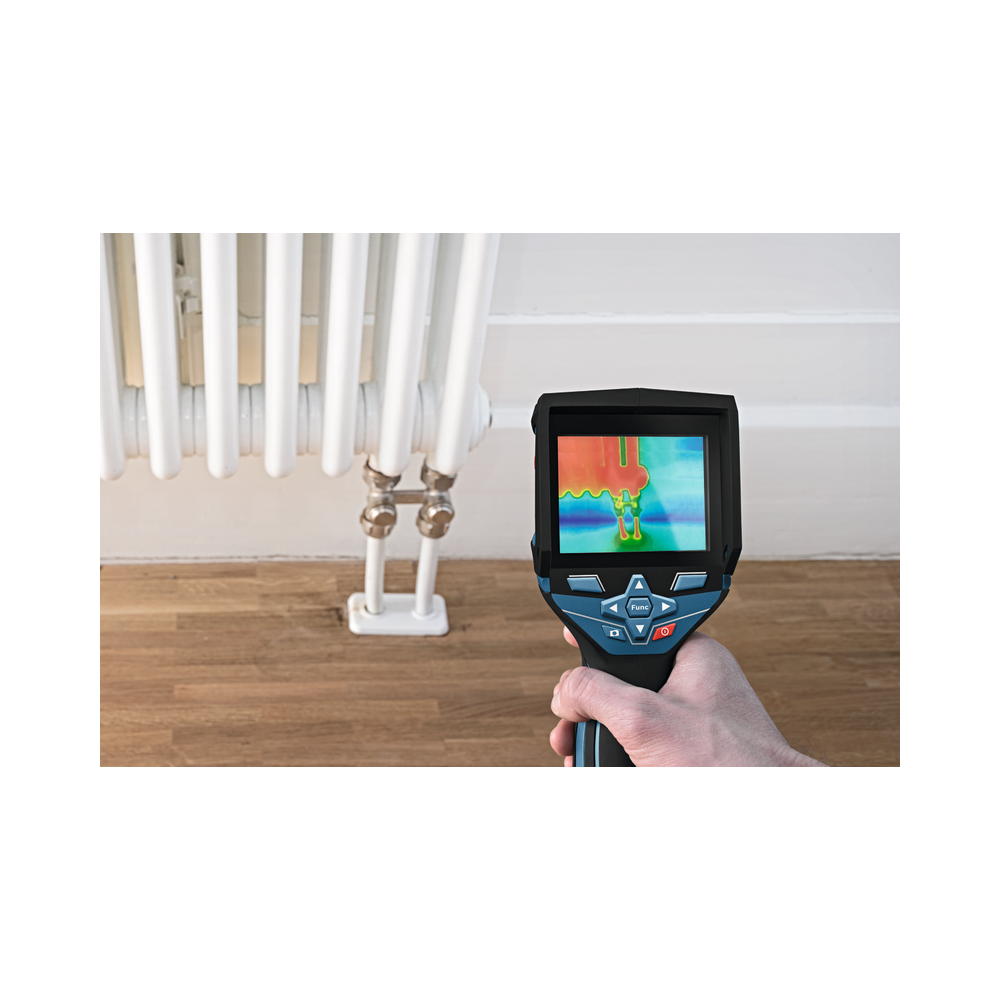

- Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
- Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
Technical Information
- Battery voltage 12.0 V
- Measurement range -10 °C to +400 °C
- Measuring accuracy of IR ±3.0 °C
- Measuring application Thermal image
- Data transfer MicroUSB, Wi-Fi
- Thermal sensitivity (NETD) <50 mK
- Size of IR sensor 160 Pixel x 120 Pixel
- Resolution 0.1 °C
- Number of measuring points 19.200
- Field of view (FOV) 53° x 43°
- Power supply and runtime 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
- Frame buffer (number of images) 500
- Memory type Internal memory
- File format of image .jpg
- Dust and splash protection IP 53
- Weight 0.54 kg
- Size of display 3.5"
- Operating temperature -10 – 45 °C
- Storage temperature -20 – 70 °C
- Focus distance, minimum 0.3 m

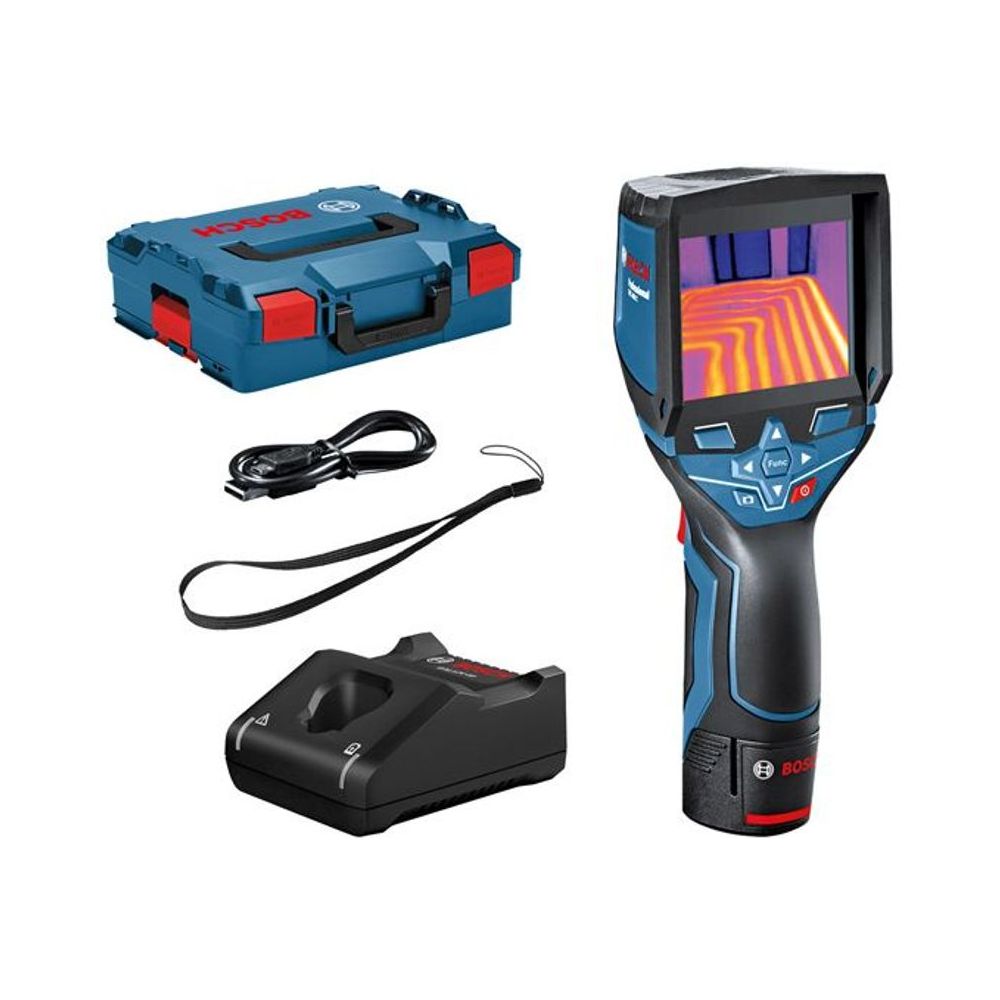

Items Included
- L-BOXX 136
- Micro USB cable
- Quick charger GAL 12V-40 Professional
- Hand strap
- L-BOXX inlay for tool
- 1 x battery GBA 12V 2.0Ah
