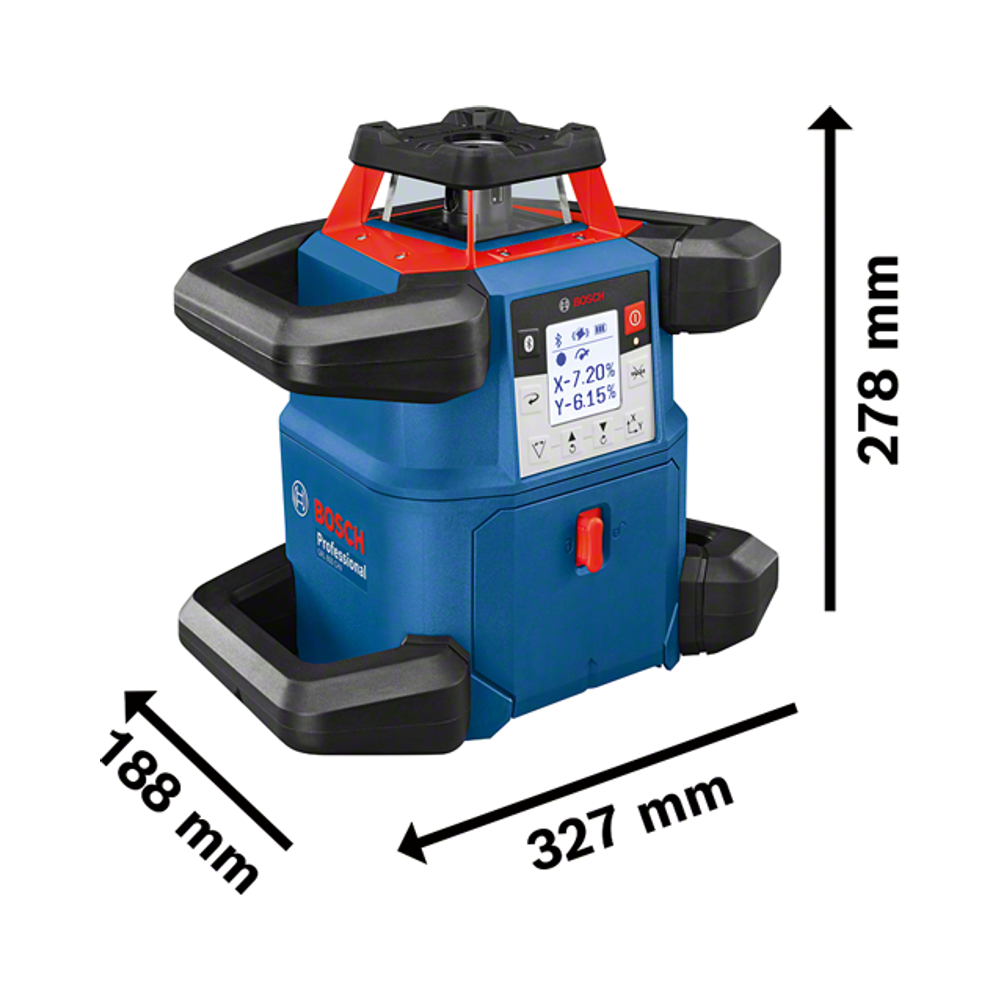

Bosch GRL 600 CHV 18V Professional Rotation Laser, 600m (Diameter)

Model #   GRL 600 CHV

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water
  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time
  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

Technical Information

  • Battery voltage 18.0 V
  • Dust and splash protection IP 68
  • Working range with receiver 600 m (diameter)
  • Accuracy ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
  • Tripod thread 2 x 5/8"
  • Laser diode 630 – 650 nm, < 1mW
  • Operating temperature -10 – 50 °C
  • Storage temperature -20 – 50 °C
  • Laser class 2
  • Working range without receiver 60 m (diameter)
  • Self-levelling range ±8.5% (±5°)
  • Rotation speed 150/300/600 min-¹
  • Power supply 18 V Li-ion battery, 4 x D cell batteries
  • Operating time (max.) 60 h, 70 h
  • Projection 1 x 360° line
  • Compatible laser receivers LR 60
  • Weight with 4.0 Ah battery 4.3 kg
  • Weight with alkaline batteries 4.6 kg
  • Slope function yes

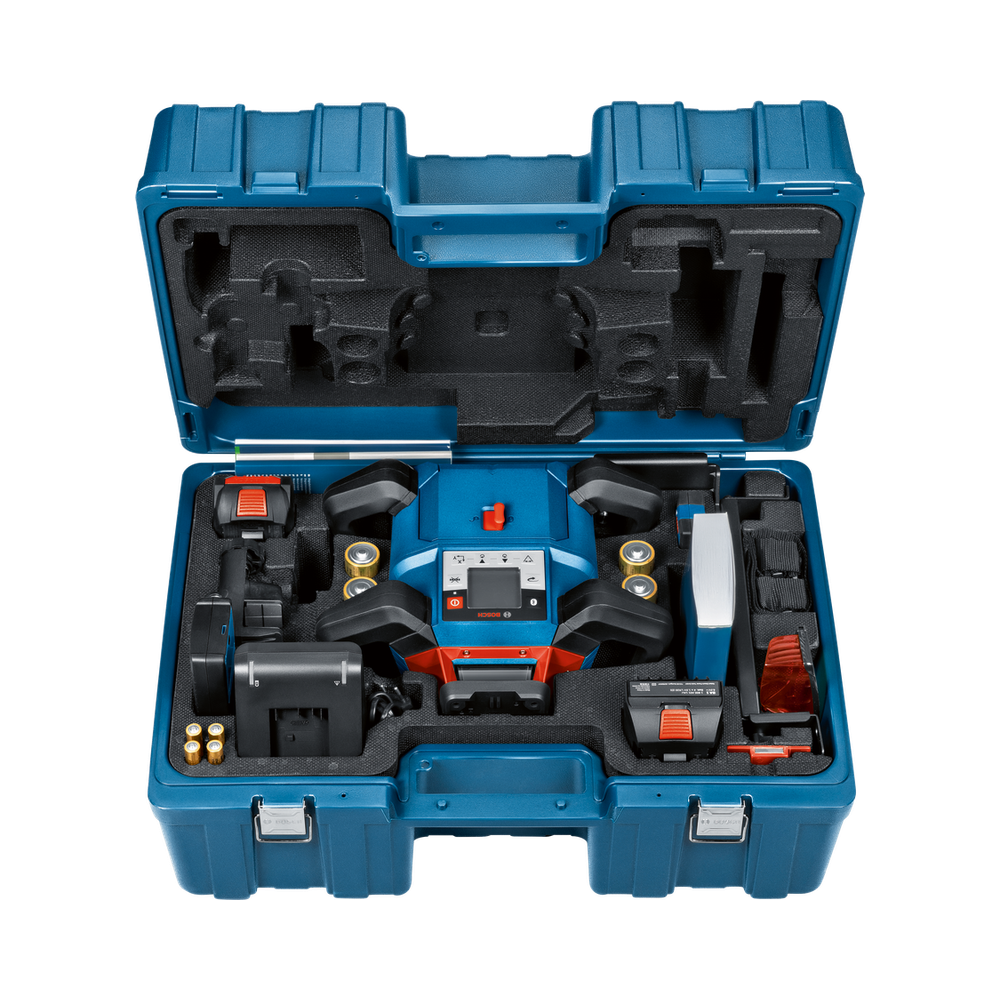

Items Included

  • Remote control RC 6 Professional
  • Receiver bracket RB 60 Professional
  • Battery adapter BA 1 Professional
  • 4 x 1.5 V LR6 battery (AA)
  • Wall mount WM 6 Professional
  • Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
  • Laser receiver LR 60 Professional
  • 4 x 1.5 V LR20 battery (D)
  • Laser target plate
  • Carrying case
  • 1 x battery ProCORE18V 4.0Ah
