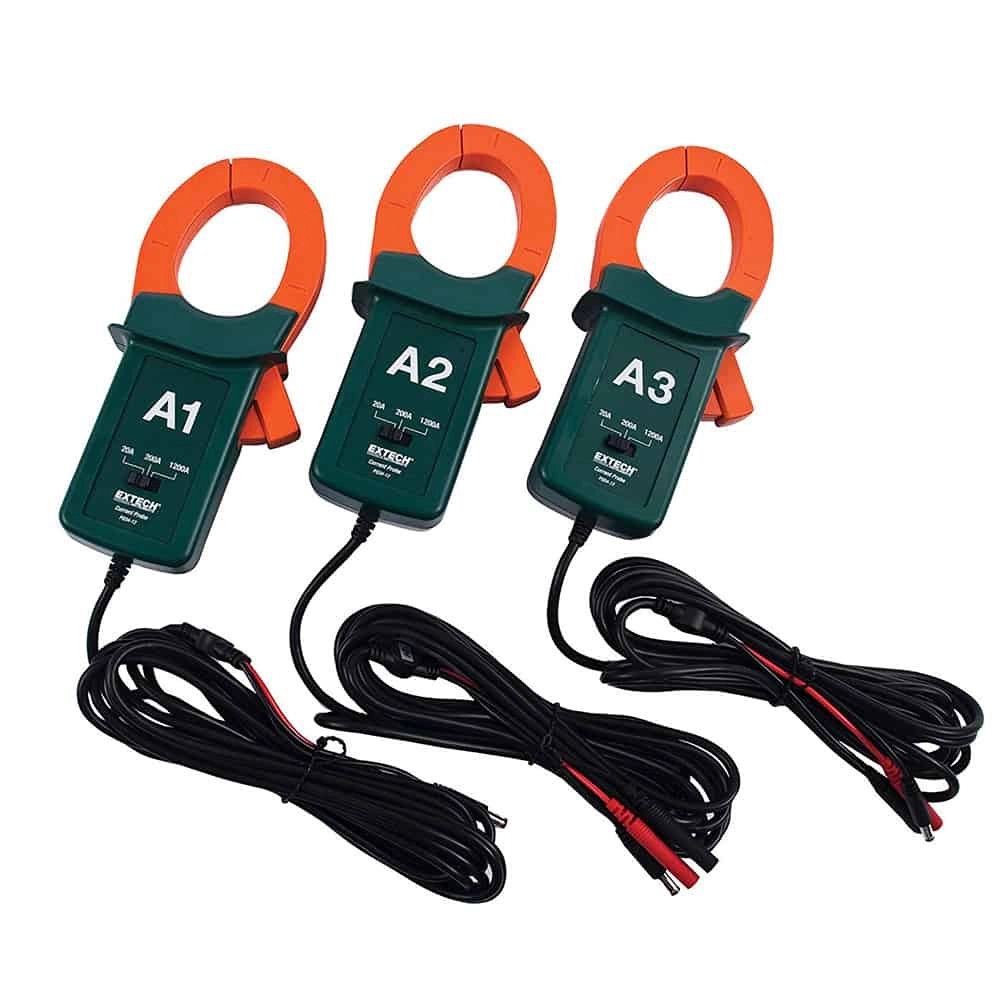

EXTECH PQ34-12 1200A Current Clamp Probes

Model # PQ34-12

Compatible with PQ3450 – 3-Phase Power Analyzer/Datalogger
Compatible with PQ3470 – 3-Phase Graphical Power & Harmonics Analyzer/Datalogger

Compatible with PQ3450 – 3-Phase Power Analyzer/Datalogger
Compatible with PQ3470 – 3-Phase Graphical Power & Harmonics Analyzer/Datalogger

Specifications	Range
Measurement ranges	20A, 200A and 1200A, switch selectable
Output sensitivity	10mV/A on the 20A range
	1mV/A on the 200A range
	0.1mV/A on the 1200A range
Output coupling	AC coupled.
Accuracy (50/60Hz)	± 1% F.S. @ 23 ± 5°C
Frequency range	45 to 400 Hz.
Phase error (50/60Hz)	< ± 1°
Minimum load	100 K ohm for specified accuracy
Enclosure material	UL 94-V0 rated
Safety	IEC 1010, Category III 600V
Power Supply	8V± 1V (supplied from meter)
Max. Jaw Open Size	50 mm (2.0 inch) Dia.
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	Less than 80% RH
Dimension	210 x 64 x 33 mm. (8.3 X 2.5 X 1.3″inch )
Cable length :	4 meters (13.17 feet)
DC plug size :	5.5 mm x 2.5 mm DIA.
Weight	490 g (1.08 LB)
Safety	For indoor use and in accordance with the requirements for indoor use, double insulation to IEC1010-1 (2001):
Safety	EN61010-1 (2001) Overvoltage Category III 600V,, Pollution Degree 2.
