How to Detect Underground Cables Locators Before any Large-scale Excavation

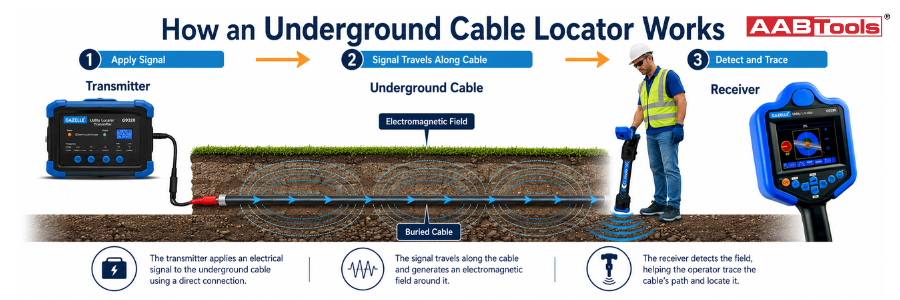

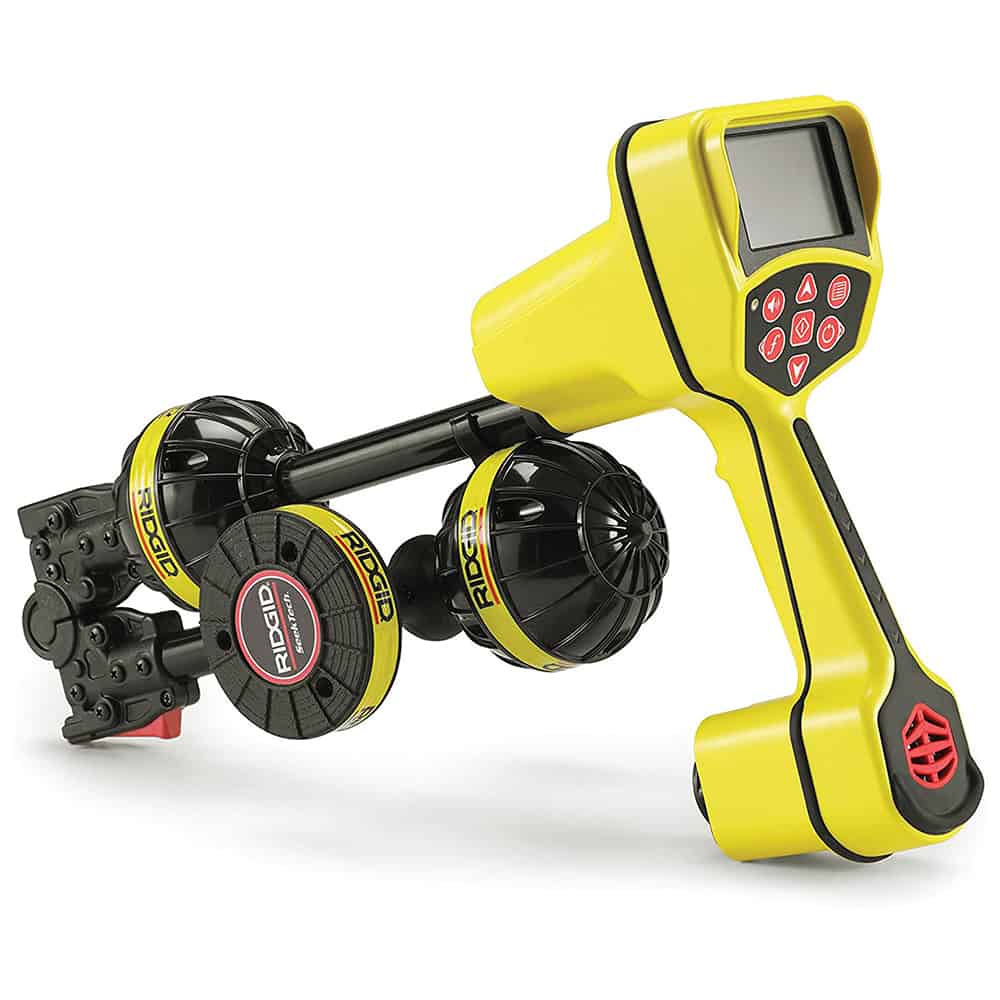

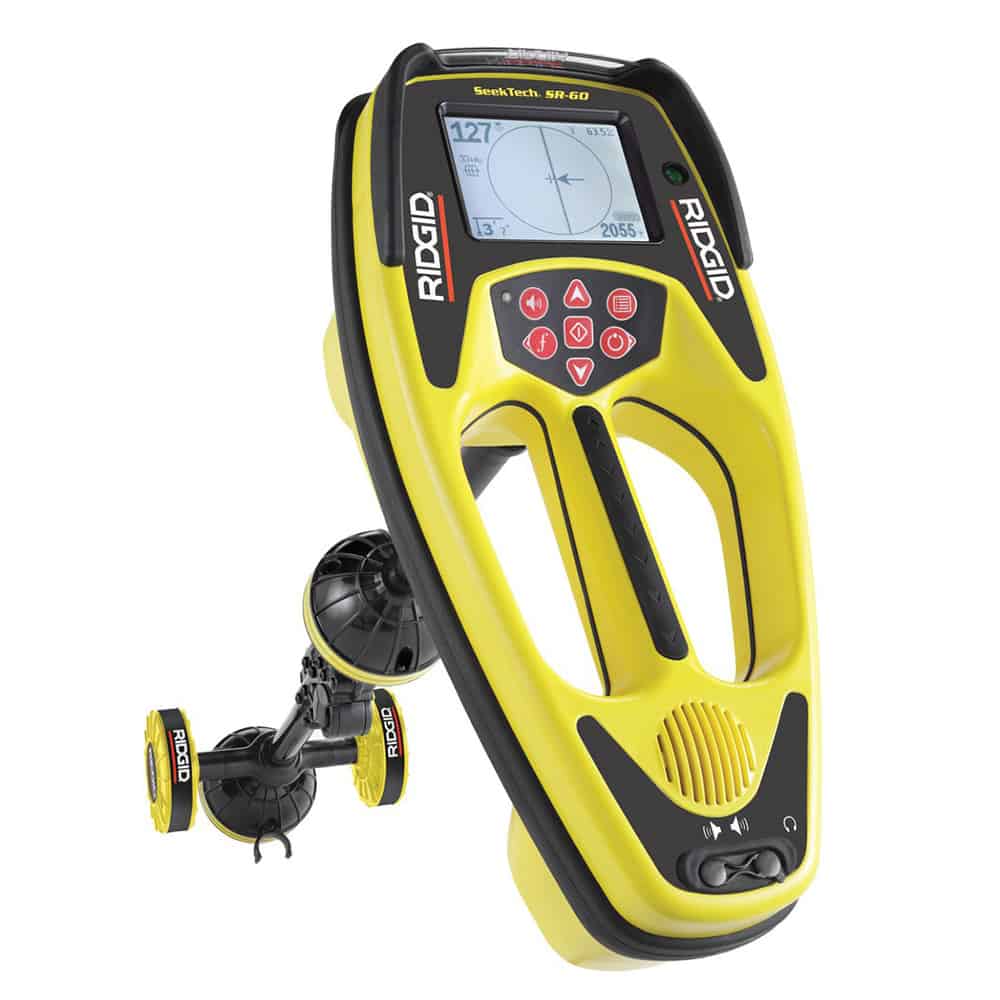

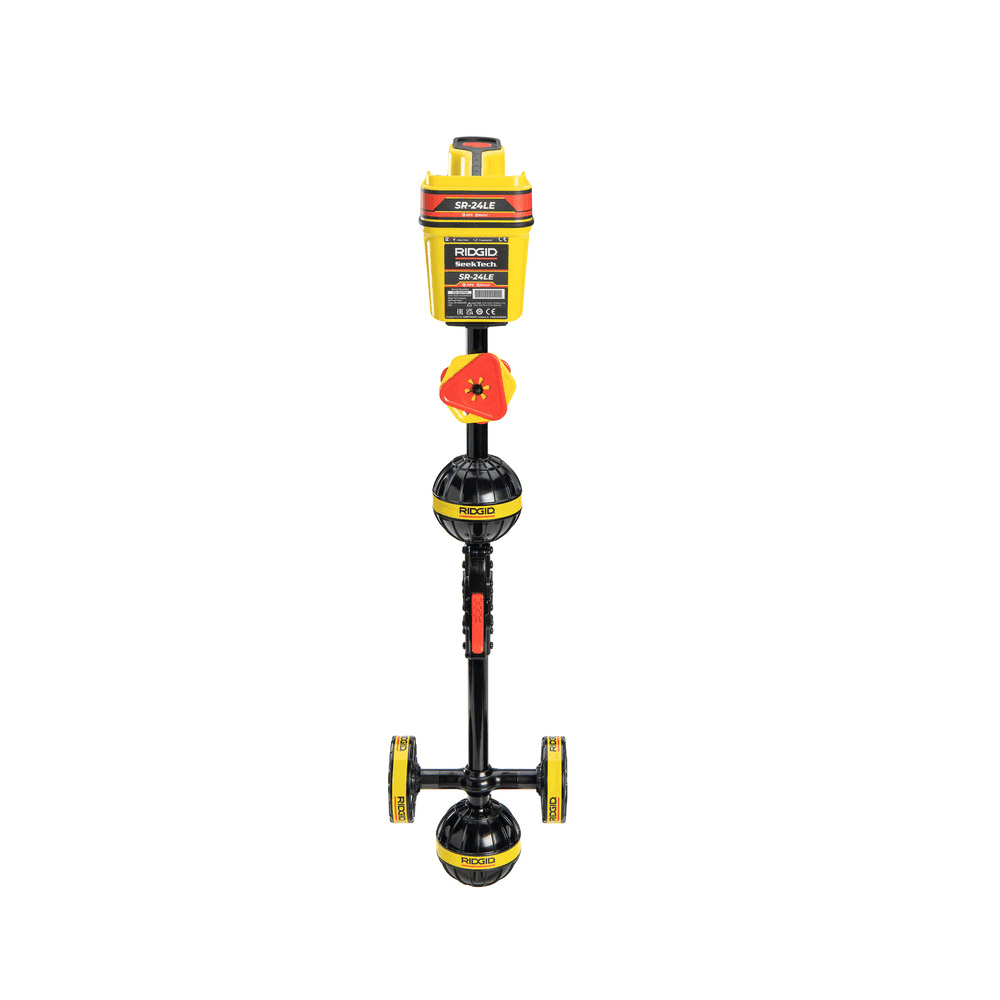

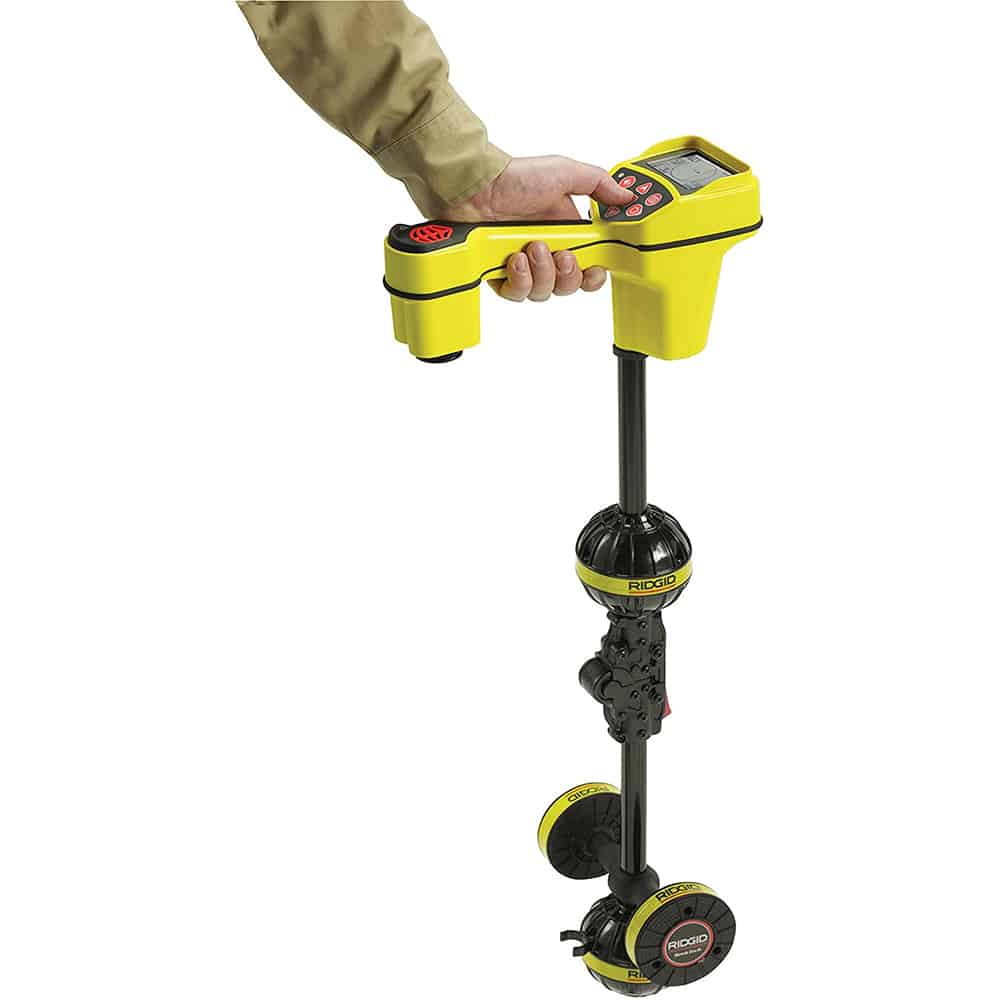

An underground cable locator consists of two main components: a transmitter that sends a signal to a buried conductor and a receiver that detects the electromagnetic field created by that signal, which allows the operator to identify the cable's position.

Common operating modes of underground line locators

Modern cable and utility locators use both passive and active locating methods to identify buried cables, pipes and other conductive services. Understanding the strengths and limitations of each method is essential because no single locating technique can detect every underground utility.

Passive Mode

In passive mode, the receiver listens for signals already present on buried services without using a transmitter. These signals may include the 50 Hz electromagnetic field and its harmonics generated by live power cables, as well as radio-frequency energy carried and re-radiated by long metallic pipes and cables. Professional systems such as the Gazelle G9320 Underground Utility Locator support active and passive detection, multiple frequencies and depth measurement.

Passive scanning is quick, convenient and requires no access to the utility. It is therefore commonly used as the first step in an initial site sweep.

However, passive mode can detect only services that are carrying or re-radiating a detectable signal. Dead cables, lightly loaded circuits, balanced three-phase supplies, short metallic pipes and well-insulated services may produce little or no detectable response.

Active Mode

In active mode, a transmitter applies a known signal to the target cable or pipe. The receiver then traces that signal above ground, helping the operator follow the route of the utility and, where supported by the equipment, estimate its depth. An active signal can be applied using direct connection, induction or a signal clamp. Active locating requires a compatible line transmitter to apply a controlled signal to the target conductor

Direct Connection

Direct connection involves attaching one transmitter lead to the target service and connecting the other lead to an earth stake placed in the ground. This is generally the preferred locating method because the signal is applied directly to the selected utility. It normally provides the best selectivity, the strongest traceable signal and the most reliable depth measurements.

Direct connection is particularly useful when the operator has safe access to a cable, pipe, valve, tracer wire or other conductive connection point.

Induction Mode

Induction, sometimes called radiation mode, allows the transmitter to place a signal into nearby buried conductors without making physical contact with them. The transmitter is positioned on the ground above the expected utility route, and the induced signal is detected using the receiver.

This method is useful when there is no accessible connection point. However, induction is less selective than direct connection because the signal may couple onto several nearby metallic services.

During induction locating, the receiver should normally be kept at least 10 metres away from the transmitter before tracing begins. This helps prevent the receiver from detecting the transmitter’s airborne signal instead of the signal travelling along the buried utility. The required separation may vary according to the equipment and site conditions.

Signal Clamp

A signal clamp provides non-contact coupling by placing the clamp around an accessible cable or pipe. The transmitter then induces a locating signal onto the service without requiring a direct electrical connection.

Clamp application is particularly useful for live cables, telecommunications lines and other services that should not be disconnected or touched directly. The clamp must fully close around the target service, and the method should only be used in accordance with the equipment manufacturer’s instructions and the site’s electrical-safety procedures.

Fault-Locating Capability

Advanced utility locators may also support cable-fault locating using an A-frame accessory. In this method, the transmitter applies a signal to the damaged cable, creating a measurable voltage gradient through the surrounding soil.

The A-frame measures the direction and strength of this earth gradient as the operator moves along the cable route. Repeated readings guide the operator towards the probable fault location.

This technique can help identify faults where current is leaking from a damaged conductor or cable sheath into the ground. Its effectiveness depends on factors such as soil conditions, grounding quality, fault resistance and the type of cable damage.

For the most reliable results, utility surveys should combine passive scanning with appropriate active locating methods rather than relying on one mode alone.

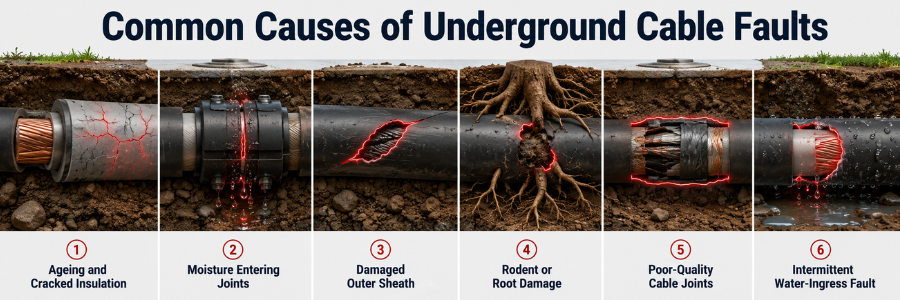

The common problems include the degradation of aging insulation due to decades of thermal cycling, moisture penetration at joints and damaged sheaths, as well as damage from rodents or roots, and substandard joints. The most challenging situations involve intermittent faults such as a water-ingress fault that only manifests under load or during humid months.

Locating underground utilities is only part of the job, once that's done, the identified route must also be protected during excavation and for any future contractors, potentially years down the line.

Underground Cable Warning Tape: This tape is laid approximately 300 mm above the cable and serves as a final visual warning for excavator operators. Detectable versions of the tape include a tracer strip, which allows for the tape itself to be located.

Cable Protection Tiles and Covers: These provide mechanical protection that is placed directly over high voltage (HV) and low voltage (LV) cables, in accordance with utility specifications.

Route Markers and Signage: These are surface indicators that show the location of buried services at joints, crossings, and changes in direction.

Underground utility strikes continue to pose a significant safety risk within the construction and infrastructure industries. Each excavation project carries the risk of encountering buried cables, pipes, or services that may not be visible from the surface. A substantial portion of the infrastructure that underpins homes, businesses, and public facilities is situated underground, which includes: - Electrical power cables, Telecommunications and data cables, Water supply pipes, Sewage and drainage in locations where multiple utilities are in proximity. Consequently, before commencing any digging, it is crucial to identify, locate, and distinctly mark all known buried services within and surrounding the excavation site.

Cable and pipe avoidance should be considered an essential first step in every excavation, not merely an optional precaution.

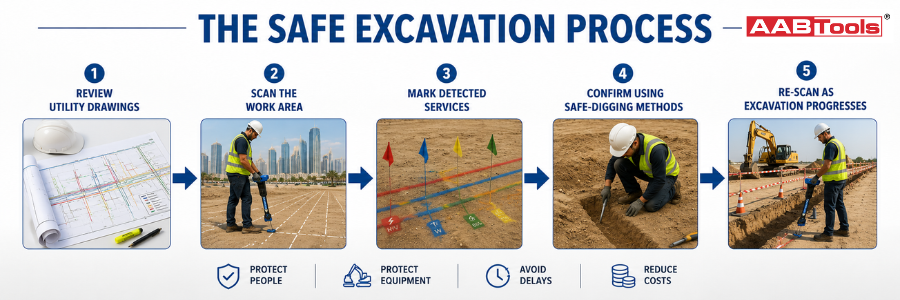

A safe excavation process must include steps like reviewing utility drawings, conducting a thorough locator survey, marking the identified services, and confirming their locations using approved safe-digging techniques.

Additionally, the area should be re-scanned as work progresses, especially if there are any changes in excavation depth, direction, or footprint. Taking the time to locate underground utilities before digging helps prevent injuries, protect equipment, and keep projects on schedule.
